SDO HMI 2014-03-13 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.81 | 417.58 | 73.11 | 299.10 | 5.58 | 11.38 | 44.59 | 284.89 | 0.7249 | 231.8 | 133.6 | |
|
previous
or next observation for the same group /

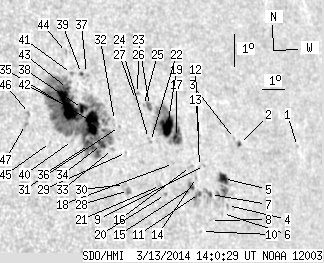

back to the solar disc SDO HMI 2014-03-13 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.81 | 5.82 | 19.65 | 52.86 | 282.50 | 0.8145 | 303.0 | 261.7 | |
| 0.78 | 1.74 | 0.62 | 1.38 | 5.60 | 16.82 | 50.03 | 283.05 | 0.7852 | -516.6 | -446.7 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 5.76 | 16.60 | 49.81 | 283.32 | 0.7834 | -234.0 | -240.0 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 3.68 | 16.07 | 49.28 | 280.86 | 0.7724 | -241.0 | -274.0 | |
| 5.99 | 19.01 | 4.66 | 14.75 | 4.48 | 15.95 | 49.17 | 281.91 | 0.7732 | -678.5 | -603.9 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 3.41 | 15.82 | 49.03 | 280.59 | 0.7691 | -304.0 | -388.2 | |
| 0.95 | 7.64 | 0.73 | 5.83 | 3.94 | 15.31 | 48.53 | 281.40 | 0.7648 | -693.7 | -487.0 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 3.15 | 15.26 | 48.47 | 280.40 | 0.7623 | -375.0 | -391.1 | |
| 0.00 | 1.30 | 0.00 | 1.00 | 4.80 | 15.12 | 48.33 | 282.56 | 0.7649 | -467.0 | -453.8 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 2.77 | 14.83 | 48.04 | 280.04 | 0.7566 | 428.0 | 347.0 | |
| 0.69 | 8.51 | 0.53 | 6.43 | 3.92 | 14.82 | 48.03 | 281.53 | 0.7593 | -781.6 | -597.3 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 4.75 | 14.89 | 48.10 | 282.57 | 0.7623 | -393.0 | -459.2 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 5.70 | 14.99 | 48.20 | 283.75 | 0.7660 | -238.0 | -228.1 | |
| 0.00 | 1.04 | 0.00 | 0.79 | 4.40 | 14.72 | 47.93 | 282.17 | 0.7595 | -627.0 | -556.6 | |
| 1.04 | 6.16 | 0.79 | 4.64 | 4.07 | 14.47 | 47.68 | 281.82 | 0.7559 | -822.1 | -685.4 | |
| 0.00 | 2.17 | 0.00 | 1.64 | 4.71 | 14.48 | 47.69 | 282.64 | 0.7577 | -624.0 | -546.3 | |
| 7.55 | 64.23 | 5.67 | 47.98 | 5.54 | 13.94 | 47.15 | 283.89 | 0.7541 | -651.0 | -424.5 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 4.73 | 13.73 | 46.94 | 282.91 | 0.7494 | -561.0 | -561.0 | |
| 16.32 | -17.00 | 12.19 | -17.00 | 5.84 | 13.58 | 46.79 | 284.40 | 0.7509 | -897.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.02 | 3.75 | 13.30 | 46.51 | 281.76 | 0.7418 | -630.0 | -557.4 | |
| 0.00 | 1.30 | 0.00 | 0.96 | 4.00 | 13.10 | 46.31 | 282.16 | 0.7403 | -497.0 | -474.7 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 5.31 | 12.78 | 45.99 | 283.99 | 0.7404 | 205.0 | 237.6 | |
| 0.00 | 3.99 | 0.00 | 2.95 | 6.42 | 12.86 | 46.07 | 285.40 | 0.7447 | -677.0 | -495.5 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 5.40 | 12.70 | 45.92 | 284.12 | 0.7398 | 110.0 | 112.1 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 6.39 | 12.60 | 45.81 | 285.46 | 0.7417 | -358.0 | -455.7 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 6.74 | 12.38 | 45.59 | 286.00 | 0.7404 | -688.0 | -622.8 | |
| 0.00 | 1.65 | 0.00 | 1.21 | 6.55 | 12.27 | 45.48 | 285.78 | 0.7385 | -261.0 | -409.4 | |
| 0.00 | 3.39 | 0.00 | 2.42 | 3.73 | 11.71 | 44.92 | 282.24 | 0.7234 | 789.0 | 584.6 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 4.88 | 11.71 | 44.93 | 283.79 | 0.7268 | 185.0 | 270.5 | |
| 0.00 | 2.00 | 0.00 | 1.42 | 3.90 | 11.55 | 44.76 | 282.52 | 0.7220 | 100.0 | 186.9 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 5.65 | 11.49 | 44.70 | 284.89 | 0.7267 | 157.0 | 159.6 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 5.82 | 11.30 | 44.51 | 285.19 | 0.7250 | 254.0 | 271.7 | |
| 0.00 | 1.65 | 0.00 | 1.17 | 4.92 | 11.13 | 44.34 | 284.05 | 0.7201 | 336.0 | 218.1 | |
| 3.39 | 267.42 | 2.39 | 186.74 | 5.03 | 10.68 | 43.89 | 284.36 | 0.7152 | 558.6 | 429.5 | |
| 22.83 | -34.00 | 16.09 | -34.00 | 5.68 | 10.36 | 43.57 | 285.35 | 0.7136 | 912.8 | 999999 | |
| 4.69 | -34.00 | 3.28 | -34.00 | 4.99 | 10.18 | 43.39 | 284.49 | 0.7091 | 772.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.80 | 7.17 | 10.28 | 43.49 | 287.38 | 0.7179 | -69.0 | 27.9 | |
| 5.03 | -34.00 | 3.53 | -34.00 | 6.07 | 9.99 | 43.20 | 286.03 | 0.7106 | 768.4 | 999999 | |
| 0.52 | 1.39 | 0.37 | 0.98 | 7.15 | 10.07 | 43.28 | 287.45 | 0.7154 | 409.3 | 346.3 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 5.05 | 9.48 | 42.69 | 284.84 | 0.7011 | 467.0 | 502.5 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 7.11 | 9.65 | 42.86 | 287.57 | 0.7104 | 361.0 | 419.3 | |
| 30.90 | -34.00 | 21.47 | -34.00 | 6.08 | 9.37 | 42.58 | 286.29 | 0.7034 | 1101.5 | 999999 | |
| 1.13 | -34.00 | 0.79 | -34.00 | 6.63 | 9.43 | 42.64 | 287.02 | 0.7061 | 558.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.98 | 7.74 | 9.52 | 42.73 | 288.48 | 0.7113 | 527.0 | 447.2 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 4.91 | 8.58 | 41.79 | 285.00 | 0.6897 | 397.0 | 408.0 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 5.73 | 7.81 | 41.02 | 286.46 | 0.6833 | 758.0 | 667.3 | |
| 0.00 | 1.91 | 0.00 | 1.29 | 5.38 | 7.62 | 40.83 | 286.05 | 0.6797 | 451.0 | 479.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
