SDO HMI 2014-03-13 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.52 | 77.70 | 11.61 | 45.28 | -10.57 | 357.84 | 31.60 | 260.96 | 0.5235 | 398.8 | 315.5 | |
|
previous
or next observation for the same group /

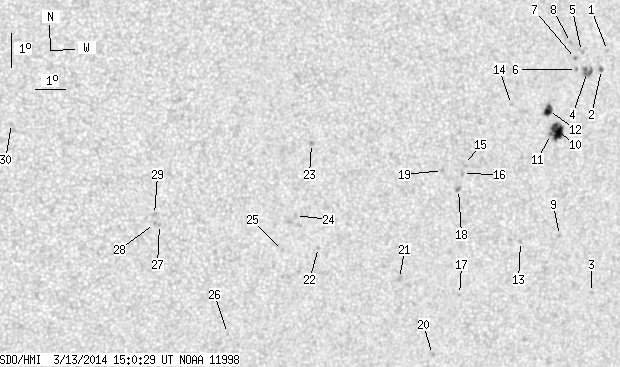

back to the solar disc SDO HMI 2014-03-13 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.74 | -7.30 | 1.74 | 35.50 | 267.52 | 0.5788 | 626.0 | 509.6 | |
| 0.69 | 1.82 | 0.42 | 1.10 | -7.88 | 1.57 | 35.33 | 266.52 | 0.5761 | 696.2 | 540.7 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -14.53 | 2.13 | 35.90 | 255.11 | 0.5895 | 610.0 | 498.2 | |
| 0.00 | 7.55 | 0.00 | 4.54 | -7.97 | 1.07 | 34.83 | 266.37 | 0.5689 | 802.0 | 698.5 | |
| 0.00 | 2.34 | 0.00 | 1.40 | -7.39 | 0.79 | 34.55 | 267.41 | 0.5652 | 632.0 | 628.4 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -7.94 | 0.66 | 34.42 | 266.44 | 0.5631 | 783.0 | 756.0 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -7.61 | 0.59 | 34.35 | 267.02 | 0.5623 | 810.0 | 649.6 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -7.15 | 0.37 | 34.13 | 267.86 | 0.5593 | 779.0 | 584.6 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -12.91 | 0.66 | 34.42 | 257.59 | 0.5663 | 597.0 | 526.0 | |
| 12.93 | 18.66 | 7.69 | 11.10 | -9.83 | 0.16 | 33.93 | 263.04 | 0.5562 | 959.4 | 629.9 | |
| 0.43 | -10.00 | 0.26 | -10.00 | -9.93 | 359.92 | 33.68 | 262.84 | 0.5527 | 863.4 | 999999 | |
| 5.47 | 7.98 | 3.24 | 4.73 | -9.23 | 359.77 | 33.53 | 264.12 | 0.5503 | 902.2 | 623.8 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -13.19 | 359.26 | 33.02 | 256.82 | 0.5471 | 749.0 | 521.2 | |
| 0.00 | 1.39 | 0.00 | 0.81 | -9.13 | 358.43 | 32.19 | 264.25 | 0.5307 | 647.0 | 445.8 | |
| 0.00 | 2.86 | 0.00 | 1.65 | -11.02 | 356.96 | 30.72 | 260.47 | 0.5105 | 386.0 | 364.8 | |
| 0.00 | 2.43 | 0.00 | 1.40 | -11.30 | 356.92 | 30.68 | 259.93 | 0.5103 | 814.0 | 658.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -14.91 | 357.31 | 31.08 | 253.07 | 0.5235 | 652.0 | 557.5 | |
| 0.00 | 2.43 | 0.00 | 1.40 | -11.78 | 356.84 | 30.60 | 258.97 | 0.5098 | 808.0 | 707.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -11.25 | 356.21 | 29.97 | 259.90 | 0.4997 | 851.0 | 582.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -16.77 | 356.65 | 30.41 | 249.32 | 0.5202 | -797.0 | -678.3 | |
| 0.00 | 3.30 | 0.00 | 1.87 | -14.56 | 355.12 | 28.89 | 252.95 | 0.4911 | 824.0 | 648.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -13.79 | 352.22 | 25.98 | 253.35 | 0.4459 | -601.0 | -459.9 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -10.70 | 351.66 | 25.42 | 260.16 | 0.4299 | -873.0 | -692.1 | |
| 0.00 | 1.74 | 0.00 | 0.95 | -12.87 | 351.33 | 25.09 | 255.03 | 0.4298 | -833.0 | -626.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -13.94 | 351.01 | 24.77 | 252.43 | 0.4284 | -770.0 | -649.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -16.52 | 349.46 | 23.22 | 245.55 | 0.4170 | -621.0 | -508.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -13.35 | 346.86 | 20.62 | 251.43 | 0.3631 | -853.0 | -695.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -13.32 | 346.69 | 20.46 | 251.37 | 0.3605 | -877.0 | -753.6 | |
| 0.00 | 2.69 | 0.00 | 1.43 | -13.06 | 346.67 | 20.43 | 252.09 | 0.3590 | -866.0 | -665.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -10.51 | 341.92 | 15.68 | 256.76 | 0.2743 | -860.0 | -702.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
