SDO HMI 2014-03-13 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 12.74 | 1.98 | 10.89 | -9.93 | 20.70 | 55.01 | 262.83 | 0.8136 | 44.9 | 56.2 | |
|
previous
or next observation for the same group /

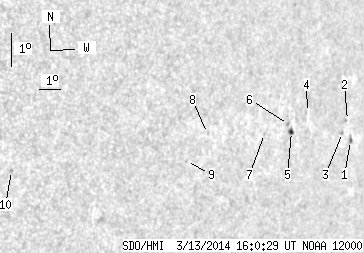

back to the solar disc SDO HMI 2014-03-13 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 2.52 | 0.49 | 2.35 | -9.71 | 24.28 | 58.60 | 263.02 | 0.8497 | 510.7 | 430.0 | |
| 0.00 | 0.43 | 0.00 | 0.40 | -9.14 | 23.96 | 58.27 | 263.71 | 0.8469 | 565.0 | 579.8 | |
| 0.00 | 1.21 | 0.00 | 1.12 | -9.52 | 23.77 | 58.08 | 263.27 | 0.8450 | 587.0 | 553.9 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -9.13 | 21.71 | 56.02 | 263.84 | 0.8257 | -326.0 | -376.2 | |
| 1.74 | 3.12 | 1.49 | 2.68 | -9.77 | 21.01 | 55.32 | 263.09 | 0.8185 | -614.8 | -520.4 | |
| 0.00 | 1.30 | 0.00 | 1.11 | -9.58 | 20.80 | 55.11 | 263.33 | 0.8166 | -766.0 | -575.5 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -9.97 | 19.63 | 53.95 | 262.89 | 0.8047 | 307.0 | 339.5 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -10.24 | 16.84 | 51.16 | 262.62 | 0.7751 | 150.0 | 173.6 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -11.16 | 16.04 | 50.36 | 261.44 | 0.7663 | 576.0 | 467.2 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -12.11 | 8.47 | 42.78 | 259.90 | 0.6769 | -445.0 | -393.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
