SDO HMI 2014-03-13 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 8.23 | 1.22 | 5.52 | 16.34 | 0.13 | 35.55 | 304.05 | 0.6756 | 199.3 | 202.5 | |
|
previous
or next observation for the same group /

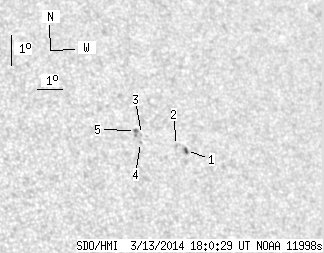

back to the solar disc SDO HMI 2014-03-13 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 2.34 | 0.82 | 1.59 | 16.08 | 1.20 | 36.61 | 302.95 | 0.6852 | -670.3 | -562.7 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 16.22 | 0.84 | 36.26 | 303.37 | 0.6823 | -785.0 | -591.8 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 16.47 | 359.56 | 34.97 | 304.64 | 0.6704 | 526.0 | 480.7 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 16.21 | 359.46 | 34.88 | 304.37 | 0.6676 | 757.0 | 640.4 | |
| 0.61 | 3.21 | 0.40 | 2.13 | 16.59 | 359.35 | 34.77 | 304.94 | 0.6690 | 780.1 | 701.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
