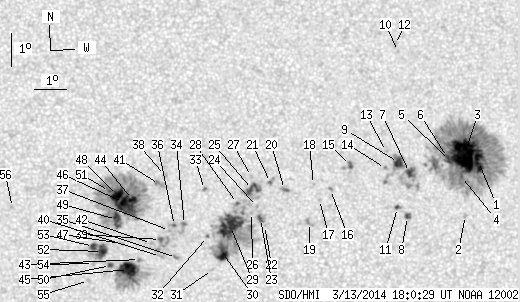

SDO HMI 2014-03-13 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.88 | 977.03 | 99.91 | 495.58 | -18.63 | 324.48 | -0.10 | 181.26 | 0.2148 | -49.7 | -26.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.15 | 381.35 | 6.15 | 192.79 | -17.64 | 330.16 | 5.57 | 206.96 | 0.2051 | 1076.6 | 464.4 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -19.28 | 329.80 | 5.21 | 202.21 | 0.2279 | 944.0 | 662.0 | |
| 52.06 | -1.00 | 26.31 | -1.00 | -17.43 | 329.71 | 5.13 | 205.56 | 0.1985 | 1461.2 | 999999 | |
| 1.65 | -1.00 | 0.83 | -1.00 | -18.10 | 329.64 | 5.05 | 203.80 | 0.2083 | 711.2 | 999999 | |
| 1.39 | -1.00 | 0.70 | -1.00 | -17.62 | 329.25 | 4.66 | 203.12 | 0.1982 | 990.4 | 999999 | |
| 1.39 | -1.00 | 0.70 | -1.00 | -17.53 | 329.18 | 4.60 | 203.02 | 0.1963 | 1117.9 | 999999 | |
| 4.25 | 21.87 | 2.15 | 11.05 | -17.99 | 328.00 | 3.42 | 196.81 | 0.1969 | 1153.7 | 638.6 | |
| 1.74 | 3.73 | 0.88 | 1.89 | -19.33 | 327.96 | 3.38 | 194.80 | 0.2187 | -935.0 | -693.2 | |
| 6.42 | 19.35 | 3.24 | 9.76 | -17.69 | 327.65 | 3.07 | 195.61 | 0.1903 | 1265.3 | 805.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.35 | 327.60 | 3.02 | 202.25 | 0.1354 | 917.0 | 723.9 | |
| 0.95 | 3.12 | 0.48 | 1.58 | -19.06 | 327.64 | 3.06 | 193.76 | 0.2129 | -644.4 | -453.9 | |
| 0.00 | 2.60 | 0.00 | 1.30 | -14.14 | 327.51 | 2.92 | 202.23 | 0.1314 | 797.0 | 658.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -17.36 | 327.27 | 2.69 | 194.21 | 0.1831 | 851.0 | 579.0 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -17.87 | 327.25 | 2.66 | 193.40 | 0.1916 | 927.0 | 729.5 | |
| 1.39 | 4.77 | 0.70 | 2.41 | -17.79 | 326.15 | 1.57 | 188.05 | 0.1866 | 1188.6 | 834.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -18.52 | 325.53 | 0.94 | 184.54 | 0.1979 | 1042.0 | 831.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -18.82 | 325.18 | 0.60 | 182.81 | 0.2028 | 155.0 | 195.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -18.36 | 324.99 | 0.41 | 182.00 | 0.1948 | 816.0 | 626.9 | |
| 0.00 | 4.69 | 0.00 | 2.38 | -19.52 | 324.87 | 0.28 | 181.25 | 0.2146 | 850.0 | 802.7 | |
| 0.00 | 3.64 | 0.00 | 1.84 | -18.52 | 324.08 | -0.50 | 177.58 | 0.1975 | -1022.0 | -771.7 | |
| 0.43 | 3.38 | 0.22 | 1.71 | -18.30 | 323.64 | -0.94 | 175.38 | 0.1942 | -1162.2 | -846.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.61 | 323.45 | -1.14 | 175.03 | 0.2169 | -578.0 | -564.0 | |
| 1.82 | 6.16 | 0.92 | 3.12 | -19.40 | 323.32 | -1.26 | 174.38 | 0.2134 | -1035.1 | -786.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.03 | 323.23 | -1.35 | 173.78 | 0.2074 | -923.0 | -613.8 | |
| 6.42 | 23.51 | 3.24 | 11.89 | -18.51 | 323.08 | -1.51 | 172.76 | 0.1988 | 296.7 | -288.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -19.21 | 323.04 | -1.55 | 173.03 | 0.2108 | -826.0 | -603.4 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -18.12 | 323.05 | -1.53 | 172.36 | 0.1922 | 739.0 | 549.9 | |
| 0.52 | 146.21 | 0.26 | 74.28 | -18.94 | 322.60 | -1.98 | 170.87 | 0.2072 | -1090.5 | -315.9 | |
| 32.02 | -28.00 | 16.25 | -28.00 | -19.63 | 322.37 | -2.21 | 170.42 | 0.2196 | -1160.0 | 999999 | |
| 12.15 | -28.00 | 6.19 | -28.00 | -20.43 | 322.10 | -2.48 | 169.96 | 0.2337 | 762.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -20.95 | 321.78 | -2.81 | 169.11 | 0.2434 | 677.0 | 508.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -19.94 | 321.64 | -2.95 | 167.65 | 0.2270 | 791.0 | 614.6 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -18.50 | 321.57 | -3.02 | 165.74 | 0.2035 | 912.0 | 779.0 | |
| 0.43 | 6.25 | 0.22 | 3.18 | -19.56 | 320.92 | -3.67 | 164.30 | 0.2238 | -1074.6 | -783.5 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -20.57 | 320.64 | -3.95 | 164.45 | 0.2416 | -834.0 | -741.3 | |
| 0.43 | 2.43 | 0.22 | 1.24 | -19.59 | 320.60 | -3.99 | 163.06 | 0.2258 | -1172.6 | -903.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -19.74 | 320.44 | -4.15 | 162.62 | 0.2291 | -999.0 | -834.9 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -18.07 | 320.35 | -4.23 | 159.64 | 0.2025 | -812.0 | -632.1 | |
| 0.95 | 11.63 | 0.49 | 5.93 | -20.01 | 320.14 | -4.44 | 161.87 | 0.2350 | -1206.7 | -828.9 | |
| 0.00 | 2.78 | 0.00 | 1.42 | -20.53 | 320.13 | -4.46 | 162.52 | 0.2434 | -580.0 | -536.4 | |
| 0.00 | 5.21 | 0.00 | 2.64 | -18.34 | 320.16 | -4.43 | 159.28 | 0.2080 | -1114.0 | -926.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -20.13 | 319.85 | -4.73 | 160.95 | 0.2384 | -919.0 | -710.6 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -20.62 | 319.45 | -5.13 | 160.21 | 0.2484 | -982.0 | -718.4 | |
| 4.34 | 200.26 | 2.20 | 101.74 | -18.78 | 319.29 | -5.29 | 156.57 | 0.2206 | -1455.3 | -568.0 | |
| 18.22 | 61.09 | 9.33 | 31.31 | -20.92 | 319.09 | -5.49 | 159.39 | 0.2553 | -1203.2 | -406.5 | |
| 4.43 | -44.00 | 2.25 | -44.00 | -18.87 | 319.01 | -5.58 | 155.63 | 0.2239 | -1607.1 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -20.12 | 318.90 | -5.69 | 157.47 | 0.2440 | -926.0 | -573.7 | |
| 9.98 | -44.00 | 5.07 | -44.00 | -18.66 | 318.82 | -5.76 | 154.50 | 0.2219 | -1345.9 | 999999 | |
| 7.81 | -44.00 | 3.98 | -44.00 | -19.39 | 318.77 | -5.82 | 155.70 | 0.2335 | -1039.0 | 999999 | |
| 1.48 | 3.30 | 0.76 | 1.69 | -20.79 | 318.52 | -6.07 | 157.27 | 0.2568 | -861.5 | -547.8 | |
| 0.78 | -44.00 | 0.40 | -44.00 | -18.53 | 318.58 | -6.01 | 153.29 | 0.2219 | -928.9 | 999999 | |
| 7.98 | 24.73 | 4.08 | 12.66 | -20.36 | 318.28 | -6.30 | 155.75 | 0.2517 | -1132.6 | -634.7 | |
| 3.30 | -52.00 | 1.69 | -52.00 | -20.20 | 318.00 | -6.58 | 154.53 | 0.2513 | -1018.6 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -20.72 | 317.98 | -6.61 | 155.37 | 0.2594 | -158.0 | -157.9 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -21.24 | 317.79 | -6.79 | 155.65 | 0.2686 | 438.0 | 317.1 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -18.97 | 315.48 | -9.11 | 143.94 | 0.2554 | -904.0 | -790.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
