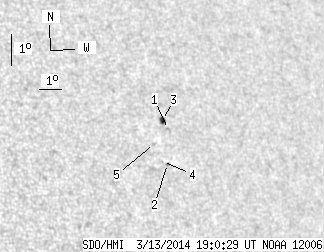

SDO HMI 2014-03-13 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 9.80 | 1.85 | 7.43 | 11.50 | 9.82 | 45.78 | 291.97 | 0.7597 | -31.9 | -48.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.59 | 11.66 | 10.11 | 46.07 | 292.04 | 0.7633 | -490.0 | -398.3 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 10.57 | 9.84 | 45.80 | 290.81 | 0.7563 | 569.0 | 497.2 | |
| 2.43 | 4.16 | 1.85 | 3.17 | 11.92 | 9.90 | 45.87 | 292.46 | 0.7622 | -642.9 | -453.5 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 10.62 | 9.63 | 45.60 | 290.95 | 0.7542 | 439.0 | 382.8 | |
| 0.00 | 2.00 | 0.00 | 1.50 | 11.15 | 9.39 | 45.35 | 291.73 | 0.7538 | 485.0 | 291.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
