SDO HMI 2014-03-13 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.83 | 85.89 | 10.37 | 51.39 | -10.72 | 357.46 | 33.98 | 261.00 | 0.5585 | 192.6 | 188.6 | |
|
previous
or next observation for the same group /

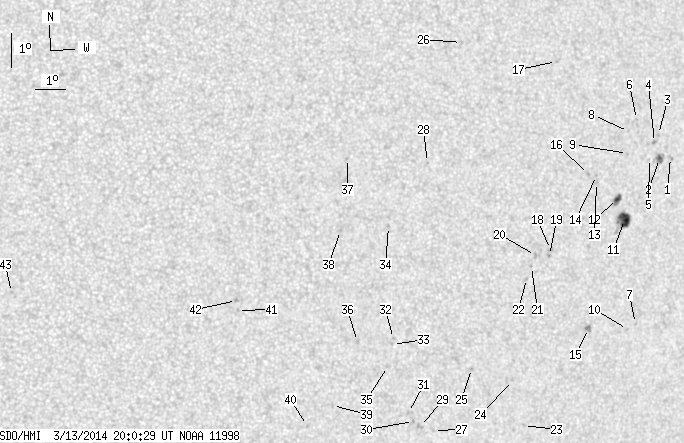

back to the solar disc SDO HMI 2014-03-13 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.20 | -7.83 | 1.67 | 38.19 | 266.49 | 0.6159 | 214.0 | 252.5 | |
| 2.43 | 7.64 | 1.52 | 4.76 | -7.89 | 1.25 | 37.77 | 266.41 | 0.6102 | 809.7 | 578.5 | |
| 0.00 | 1.39 | 0.00 | 0.87 | -7.18 | 1.15 | 37.66 | 267.58 | 0.6090 | 504.0 | 481.8 | |
| 0.00 | 1.74 | 0.00 | 1.08 | -7.43 | 1.02 | 37.54 | 267.18 | 0.6071 | 738.0 | 611.0 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -7.92 | 0.88 | 37.40 | 266.37 | 0.6050 | 299.0 | 462.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -6.80 | 0.28 | 36.80 | 268.28 | 0.5973 | 429.0 | 440.7 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -12.86 | 1.03 | 37.55 | 258.22 | 0.6092 | 585.0 | 584.1 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -7.18 | 0.01 | 36.53 | 267.67 | 0.5933 | 611.0 | 487.4 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -7.83 | 0.04 | 36.56 | 266.56 | 0.5934 | 662.0 | 608.6 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -13.06 | 0.76 | 37.27 | 257.85 | 0.6058 | 594.0 | 580.7 | |
| 11.02 | 18.66 | 6.78 | 11.46 | -9.80 | 0.15 | 36.67 | 263.23 | 0.5948 | 924.4 | 444.6 | |
| 3.38 | 6.42 | 2.07 | 3.93 | -9.19 | 359.81 | 36.33 | 264.25 | 0.5900 | 911.2 | 724.7 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -8.77 | 358.98 | 35.50 | 264.97 | 0.5783 | 654.0 | 607.0 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -8.57 | 358.96 | 35.48 | 265.33 | 0.5780 | 632.0 | 529.2 | |
| 0.00 | 3.30 | 0.00 | 2.01 | -13.13 | 359.28 | 35.80 | 257.48 | 0.5857 | 795.0 | 697.1 | |
| 0.00 | 1.39 | 0.00 | 0.84 | -8.56 | 358.66 | 35.18 | 265.35 | 0.5738 | 739.0 | 592.2 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.28 | 357.23 | 33.74 | 271.28 | 0.5554 | 720.0 | 596.3 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -10.88 | 357.53 | 34.05 | 261.18 | 0.5586 | 630.0 | 608.3 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -11.06 | 357.52 | 34.04 | 260.85 | 0.5586 | 754.0 | 669.5 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -11.10 | 357.01 | 33.53 | 260.73 | 0.5514 | 662.0 | 560.0 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -11.43 | 356.91 | 33.43 | 260.10 | 0.5503 | 796.0 | 635.6 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -11.80 | 356.78 | 33.30 | 259.41 | 0.5488 | 702.0 | 573.0 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -16.20 | 357.39 | 33.91 | 251.73 | 0.5664 | -478.0 | -390.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -14.88 | 356.74 | 33.26 | 253.85 | 0.5540 | 804.0 | 640.1 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -14.61 | 355.20 | 31.71 | 253.86 | 0.5317 | 761.0 | 660.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -4.93 | 353.85 | 30.37 | 272.54 | 0.5062 | -675.0 | -563.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -16.56 | 354.15 | 30.66 | 249.85 | 0.5228 | -674.0 | -529.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -8.57 | 352.91 | 29.43 | 265.29 | 0.4895 | -555.0 | -436.0 | |
| 0.00 | 2.60 | 0.00 | 1.50 | -16.46 | 353.66 | 30.18 | 249.81 | 0.5157 | -677.0 | -625.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -16.33 | 353.39 | 29.91 | 249.94 | 0.5114 | -711.0 | -539.8 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -16.07 | 353.16 | 29.68 | 250.34 | 0.5074 | -713.0 | -574.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -13.88 | 352.31 | 28.83 | 254.30 | 0.4882 | -619.0 | -429.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -14.07 | 352.30 | 28.82 | 253.93 | 0.4886 | -736.0 | -578.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -10.56 | 351.75 | 28.26 | 261.05 | 0.4732 | -639.0 | -559.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -14.73 | 352.22 | 28.73 | 252.56 | 0.4894 | -737.0 | -459.1 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -14.04 | 351.07 | 27.59 | 253.50 | 0.4706 | -679.0 | -635.9 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -8.61 | 350.18 | 26.70 | 265.12 | 0.4477 | -656.0 | -506.0 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -10.77 | 350.13 | 26.64 | 260.30 | 0.4488 | -714.0 | -589.8 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -16.01 | 350.48 | 26.99 | 249.13 | 0.4689 | -684.0 | -571.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -16.66 | 349.70 | 26.22 | 247.34 | 0.4606 | -640.0 | -541.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.33 | 346.91 | 23.43 | 253.20 | 0.4059 | -663.0 | -505.8 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -13.03 | 346.85 | 23.37 | 253.88 | 0.4039 | -919.0 | -702.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.08 | 339.54 | 16.05 | 248.28 | 0.2913 | -798.0 | -510.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
