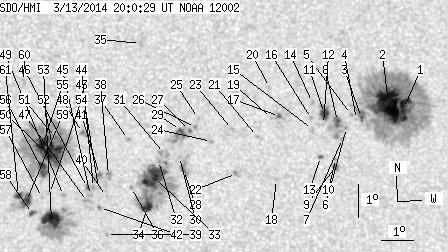

SDO HMI 2014-03-13 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 206.84 | 930.48 | 104.98 | 472.05 | -18.62 | 324.43 | 0.95 | 185.56 | 0.2158 | -158.1 | 17.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.06 | 364.27 | 7.12 | 184.50 | -17.54 | 330.15 | 6.67 | 211.54 | 0.2127 | 1042.1 | 464.8 | |
| 47.90 | -1.00 | 24.24 | -1.00 | -17.40 | 329.67 | 6.19 | 210.07 | 0.2064 | 1445.0 | 999999 | |
| 1.30 | -1.00 | 0.66 | -1.00 | -17.83 | 328.84 | 5.36 | 205.66 | 0.2062 | 951.6 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -17.89 | 328.68 | 5.20 | 204.88 | 0.2061 | 564.0 | 527.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -17.74 | 328.52 | 5.04 | 204.52 | 0.2026 | 946.0 | 842.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -18.14 | 328.38 | 4.90 | 203.09 | 0.2078 | 852.0 | 786.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.47 | 328.26 | 4.78 | 201.96 | 0.2123 | 815.0 | 667.7 | |
| 3.82 | 17.44 | 1.93 | 8.83 | -17.96 | 328.09 | 4.61 | 202.22 | 0.2031 | 1169.9 | 621.7 | |
| 1.91 | 3.73 | 0.97 | 1.90 | -19.33 | 328.06 | 4.58 | 199.70 | 0.2246 | -857.3 | -606.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -19.08 | 328.06 | 4.57 | 200.07 | 0.2207 | 718.0 | 563.9 | |
| 6.59 | 11.89 | 3.33 | 6.00 | -17.72 | 327.68 | 4.19 | 200.85 | 0.1967 | 1238.8 | 858.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.05 | 327.65 | 4.17 | 200.13 | 0.2019 | 623.0 | 499.2 | |
| 0.69 | 2.00 | 0.35 | 1.01 | -19.03 | 327.58 | 4.10 | 198.22 | 0.2171 | -688.2 | -577.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -17.39 | 327.29 | 3.81 | 199.70 | 0.1891 | 929.0 | 708.0 | |
| 0.00 | 2.60 | 0.00 | 1.32 | -18.21 | 327.31 | 3.83 | 198.35 | 0.2024 | 742.0 | 617.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -17.87 | 327.27 | 3.79 | 198.73 | 0.1968 | 902.0 | 683.7 | |
| 1.04 | 4.17 | 0.53 | 2.10 | -17.82 | 326.27 | 2.79 | 194.09 | 0.1911 | 1168.5 | 807.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -19.73 | 326.20 | 2.72 | 191.63 | 0.2228 | 852.0 | 633.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.88 | 326.02 | 2.54 | 192.80 | 0.1911 | 925.0 | 724.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.94 | 325.94 | 2.46 | 193.64 | 0.1751 | 740.0 | 490.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.43 | 325.59 | 2.10 | 190.14 | 0.1989 | 1016.0 | 834.2 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -19.56 | 324.94 | 1.45 | 186.37 | 0.2164 | 988.0 | 839.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -18.22 | 324.80 | 1.32 | 186.52 | 0.1933 | 978.0 | 704.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -18.58 | 324.14 | 0.66 | 183.17 | 0.1986 | -867.0 | -758.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.88 | 323.73 | 0.25 | 181.30 | 0.1864 | -820.0 | -626.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.16 | 323.64 | 0.16 | 180.79 | 0.1910 | -1086.0 | -886.2 | |
| 0.43 | 21.52 | 0.22 | 10.87 | -18.25 | 323.45 | -0.03 | 179.85 | 0.1926 | -1188.6 | -113.5 | |
| 1.48 | 10.33 | 0.75 | 5.23 | -19.43 | 323.26 | -0.22 | 179.02 | 0.2130 | -1009.2 | -720.3 | |
| 1.21 | -27.00 | 0.61 | -27.00 | -18.25 | 323.17 | -0.31 | 178.46 | 0.1926 | 599.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -19.04 | 323.14 | -0.35 | 178.41 | 0.2062 | -857.0 | -767.9 | |
| 0.00 | 7.29 | 0.00 | 3.69 | -18.95 | 322.66 | -0.82 | 176.21 | 0.2050 | -381.0 | -709.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -19.16 | 322.47 | -1.01 | 175.41 | 0.2089 | -1040.0 | -897.7 | |
| 30.63 | 119.14 | 15.54 | 60.52 | -19.68 | 322.31 | -1.17 | 174.91 | 0.2180 | -1172.0 | -251.0 | |
| 7.81 | -33.00 | 3.98 | -33.00 | -20.56 | 322.11 | -1.37 | 174.47 | 0.2333 | 1018.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -15.61 | 321.94 | -1.54 | 169.97 | 0.1494 | 871.0 | 759.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -19.98 | 321.61 | -1.87 | 172.11 | 0.2244 | 946.0 | 758.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -18.51 | 321.54 | -1.95 | 170.69 | 0.1999 | 1006.0 | 758.1 | |
| 0.00 | 3.82 | 0.00 | 1.94 | -19.61 | 320.89 | -2.59 | 168.79 | 0.2202 | -888.0 | -882.8 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -21.41 | 320.79 | -2.69 | 169.92 | 0.2507 | 885.0 | 746.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -20.25 | 320.81 | -2.67 | 169.06 | 0.2312 | -655.0 | -505.5 | |
| 0.69 | 5.64 | 0.35 | 2.86 | -19.57 | 320.60 | -2.88 | 167.57 | 0.2207 | -1150.4 | -938.1 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -20.58 | 320.58 | -2.90 | 168.46 | 0.2375 | -927.0 | -747.1 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -19.97 | 320.56 | -2.92 | 167.80 | 0.2274 | -708.0 | -566.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.97 | 320.41 | -3.08 | 167.16 | 0.2280 | -974.0 | -850.6 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -20.21 | 320.31 | -3.18 | 167.01 | 0.2324 | -931.0 | -762.9 | |
| 0.78 | 1.91 | 0.40 | 0.97 | -19.97 | 320.22 | -3.27 | 166.40 | 0.2287 | -1090.2 | -923.8 | |
| 0.00 | 3.56 | 0.00 | 1.81 | -20.40 | 320.21 | -3.28 | 166.81 | 0.2358 | -843.0 | -641.9 | |
| 0.52 | 4.95 | 0.26 | 2.50 | -18.29 | 320.09 | -3.39 | 163.76 | 0.2016 | -1091.8 | -859.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -20.21 | 319.45 | -4.03 | 163.67 | 0.2359 | -863.0 | -759.5 | |
| 3.04 | 199.14 | 1.54 | 100.99 | -19.20 | 319.25 | -4.23 | 161.51 | 0.2206 | -957.4 | -459.1 | |
| 0.95 | -50.00 | 0.48 | -50.00 | -18.44 | 319.24 | -4.24 | 160.24 | 0.2084 | -838.9 | 999999 | |
| 26.03 | -50.00 | 13.20 | -50.00 | -18.89 | 319.17 | -4.32 | 160.68 | 0.2162 | -1332.2 | 999999 | |
| 19.96 | 75.93 | 10.21 | 38.85 | -20.94 | 319.04 | -4.44 | 163.10 | 0.2497 | -1177.0 | -380.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.14 | 319.00 | -4.48 | 161.91 | 0.2371 | -959.0 | -755.8 | |
| 13.97 | -50.00 | 7.08 | -50.00 | -18.64 | 318.83 | -4.66 | 158.86 | 0.2142 | -1283.6 | 999999 | |
| 8.85 | -50.00 | 4.50 | -50.00 | -19.41 | 318.80 | -4.68 | 160.05 | 0.2264 | -1023.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -20.26 | 318.78 | -4.70 | 161.23 | 0.2402 | -826.0 | -645.1 | |
| 1.82 | 3.21 | 0.93 | 1.64 | -20.75 | 318.44 | -5.04 | 160.71 | 0.2498 | -790.6 | -573.9 | |
| 8.24 | 23.17 | 4.21 | 11.83 | -20.35 | 318.26 | -5.22 | 159.50 | 0.2445 | -1099.3 | -549.5 | |
| 0.00 | 2.52 | 0.00 | 1.27 | -16.73 | 318.29 | -5.20 | 152.43 | 0.1883 | -765.0 | -657.9 | |
| 3.12 | -59.00 | 1.59 | -59.00 | -20.19 | 318.01 | -5.47 | 158.36 | 0.2436 | -1022.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
