SDO HMI 2014-03-13 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 6.68 | 1.52 | 4.64 | 16.25 | 0.57 | 38.19 | 302.10 | 0.7030 | 193.2 | 187.5 | |
|
previous
or next observation for the same group /

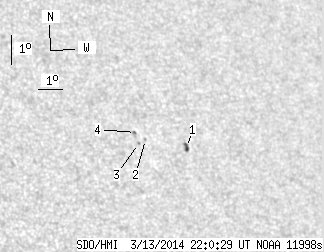

back to the solar disc SDO HMI 2014-03-13 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 3.91 | 1.52 | 2.74 | 16.20 | 1.31 | 38.93 | 301.54 | 0.7104 | -452.4 | -355.9 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 16.33 | 359.72 | 37.34 | 302.76 | 0.6945 | 520.0 | 439.4 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 16.18 | 359.41 | 37.03 | 302.78 | 0.6903 | 433.0 | 569.2 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 16.53 | 359.37 | 36.99 | 303.25 | 0.6921 | 608.0 | 608.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
