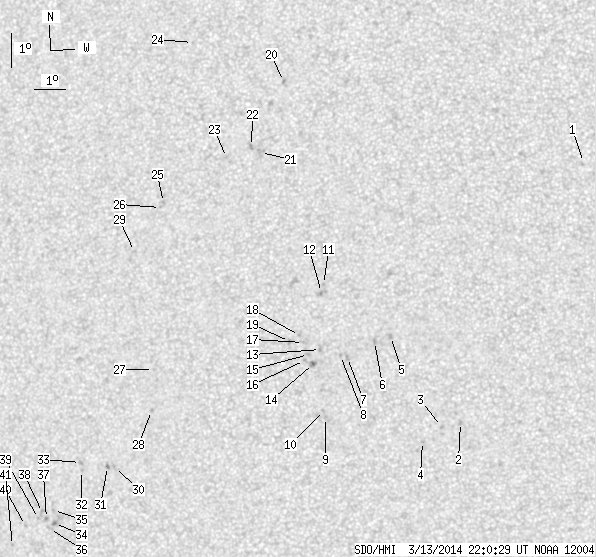

SDO HMI 2014-03-13 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 70.05 | 0.27 | 37.70 | -11.00 | 299.92 | -22.46 | 101.01 | 0.3867 | 190.0 | 201.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.18 | -5.53 | 311.41 | -10.97 | 81.94 | 0.1922 | 205.0 | 307.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -13.17 | 307.29 | -15.09 | 113.12 | 0.2769 | 981.0 | 790.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -13.27 | 306.68 | -15.70 | 112.73 | 0.2868 | 800.0 | 741.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -13.70 | 306.04 | -16.34 | 113.37 | 0.2990 | 838.0 | 637.8 | |
| 0.00 | 2.34 | 0.00 | 1.22 | -10.53 | 305.23 | -17.15 | 102.36 | 0.2981 | 800.0 | 675.0 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -10.66 | 304.72 | -17.66 | 102.50 | 0.3068 | 870.0 | 685.0 | |
| 0.00 | 2.43 | 0.00 | 1.27 | -11.10 | 303.83 | -18.55 | 103.40 | 0.3224 | 918.0 | 766.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -11.03 | 303.61 | -18.77 | 103.08 | 0.3257 | 831.0 | 692.6 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -12.86 | 302.99 | -19.39 | 108.06 | 0.3420 | 713.0 | 636.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -12.65 | 302.94 | -19.44 | 107.43 | 0.3419 | 710.0 | 699.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -8.89 | 303.19 | -19.18 | 96.40 | 0.3281 | 844.0 | 699.5 | |
| 0.00 | 3.65 | 0.00 | 1.91 | -9.13 | 303.12 | -19.26 | 97.11 | 0.3297 | 899.0 | 738.5 | |
| 0.00 | 2.52 | 0.00 | 1.32 | -10.83 | 302.98 | -19.40 | 102.15 | 0.3352 | 807.0 | 674.2 | |
| 0.52 | 3.65 | 0.27 | 1.92 | -11.23 | 302.72 | -19.66 | 103.22 | 0.3404 | 882.7 | 716.4 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -10.96 | 302.58 | -19.80 | 102.35 | 0.3419 | 805.0 | 600.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.13 | 302.44 | -19.94 | 102.79 | 0.3446 | 630.0 | 542.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -10.59 | 302.45 | -19.93 | 101.24 | 0.3432 | 709.0 | 580.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -10.38 | 302.33 | -20.05 | 100.57 | 0.3445 | 803.0 | 706.6 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -10.54 | 302.00 | -20.38 | 100.92 | 0.3502 | 716.0 | 525.5 | |
| 0.00 | 1.74 | 0.00 | 0.92 | -2.79 | 302.15 | -20.23 | 78.68 | 0.3537 | 949.0 | 784.3 | |
| 0.00 | 4.69 | 0.00 | 2.49 | -4.88 | 301.36 | -21.02 | 84.85 | 0.3604 | 881.0 | 735.5 | |
| 0.00 | 2.43 | 0.00 | 1.29 | -4.69 | 301.08 | -21.30 | 84.42 | 0.3653 | 781.0 | 690.4 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -4.98 | 300.26 | -22.11 | 85.48 | 0.3778 | 712.0 | 548.4 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -1.49 | 299.25 | -23.13 | 77.17 | 0.4045 | -717.0 | -544.7 | |
| 0.00 | 1.74 | 0.00 | 0.94 | -6.21 | 298.16 | -24.22 | 89.12 | 0.4096 | 807.0 | 568.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -6.36 | 298.05 | -24.33 | 89.48 | 0.4112 | 521.0 | 411.2 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -11.16 | 297.47 | -24.91 | 101.03 | 0.4227 | -722.0 | -602.1 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -12.38 | 297.29 | -25.09 | 103.81 | 0.4284 | -753.0 | -606.4 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -7.62 | 297.12 | -25.26 | 92.59 | 0.4252 | -677.0 | -466.9 | |
| 0.00 | 2.26 | 0.00 | 1.25 | -14.02 | 295.84 | -26.54 | 106.87 | 0.4549 | -758.0 | -614.5 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -13.97 | 295.60 | -26.78 | 106.67 | 0.4583 | -842.0 | -726.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -14.04 | 294.69 | -27.68 | 106.44 | 0.4719 | -637.0 | -496.2 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -13.80 | 294.69 | -27.69 | 105.94 | 0.4712 | -780.0 | -678.1 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -15.57 | 293.53 | -28.85 | 109.06 | 0.4938 | -969.0 | -829.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -15.18 | 293.55 | -28.83 | 108.29 | 0.4921 | -830.0 | -675.2 | |
| 0.00 | 2.34 | 0.00 | 1.34 | -15.71 | 293.33 | -29.05 | 109.24 | 0.4971 | -633.0 | -560.4 | |
| 0.00 | 1.65 | 0.00 | 0.94 | -15.40 | 293.27 | -29.11 | 108.62 | 0.4969 | -933.0 | -796.3 | |
| 0.00 | 2.60 | 0.00 | 1.49 | -15.22 | 293.16 | -29.22 | 108.20 | 0.4979 | -692.0 | -615.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -15.39 | 292.99 | -29.39 | 108.46 | 0.5008 | -632.0 | -574.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.57 | 292.50 | -29.88 | 108.61 | 0.5084 | -682.0 | -547.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -16.14 | 291.94 | -30.44 | 109.46 | 0.5183 | -553.0 | -453.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
