SDO HMI 2014-03-13 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.63 | 74.32 | 8.61 | 45.67 | -10.38 | 358.12 | 36.30 | 261.82 | 0.5905 | 225.3 | 343.6 | |
|
previous
or next observation for the same group /

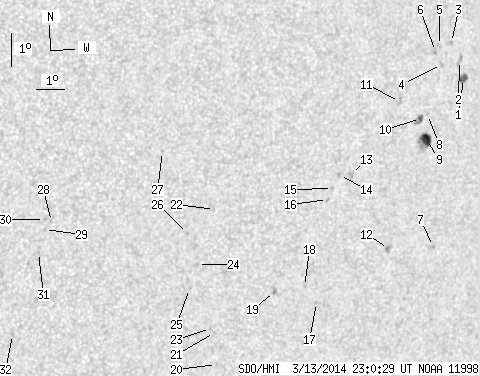

back to the solar disc SDO HMI 2014-03-13 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.56 | 5.82 | 2.28 | 3.72 | -7.85 | 1.38 | 39.56 | 266.40 | 0.6344 | 718.9 | 538.4 | |
| 0.00 | 4.69 | 0.00 | 2.99 | -7.32 | 1.17 | 39.34 | 267.24 | 0.6318 | 530.0 | 459.0 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -6.81 | 0.81 | 38.98 | 268.08 | 0.6273 | 630.0 | 534.1 | |
| 0.00 | 2.26 | 0.00 | 1.43 | -7.50 | 0.49 | 38.66 | 267.01 | 0.6225 | 584.0 | 476.9 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -6.94 | 0.36 | 38.53 | 267.91 | 0.6211 | 622.0 | 538.9 | |
| 0.00 | 1.91 | 0.00 | 1.20 | -7.13 | 0.22 | 38.40 | 267.62 | 0.6191 | 705.0 | 608.0 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -12.92 | 0.96 | 39.13 | 258.33 | 0.6304 | 399.0 | 404.4 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -9.02 | 0.13 | 38.30 | 264.55 | 0.6171 | 193.0 | 229.8 | |
| 8.51 | 16.32 | 5.35 | 10.25 | -9.77 | 0.18 | 38.36 | 263.34 | 0.6180 | 807.8 | 514.0 | |
| 1.56 | 5.99 | 0.98 | 3.75 | -9.16 | 359.87 | 38.05 | 264.32 | 0.6137 | 762.9 | 639.2 | |
| 0.00 | 3.21 | 0.00 | 1.99 | -8.72 | 359.02 | 37.19 | 265.06 | 0.6020 | 543.0 | 553.7 | |
| 0.00 | 3.56 | 0.00 | 2.22 | -13.11 | 359.24 | 37.41 | 257.78 | 0.6077 | 783.0 | 595.1 | |
| 0.00 | 3.56 | 0.00 | 2.16 | -11.01 | 357.50 | 35.67 | 261.11 | 0.5816 | 724.0 | 586.7 | |
| 0.00 | 1.65 | 0.00 | 1.00 | -11.07 | 357.06 | 35.23 | 260.96 | 0.5755 | 755.0 | 631.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -11.48 | 356.86 | 35.03 | 260.23 | 0.5730 | 704.0 | 628.8 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -11.82 | 356.72 | 34.89 | 259.62 | 0.5714 | 635.0 | 490.9 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -14.92 | 356.82 | 34.99 | 254.27 | 0.5779 | 720.0 | 478.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -14.47 | 356.29 | 34.46 | 254.90 | 0.5697 | 588.0 | 511.0 | |
| 0.00 | 2.43 | 0.00 | 1.44 | -14.69 | 355.21 | 33.38 | 254.22 | 0.5552 | 829.0 | 645.7 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -17.02 | 353.50 | 31.67 | 249.44 | 0.5383 | -512.0 | -420.1 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -16.06 | 353.25 | 31.42 | 251.09 | 0.5317 | -592.0 | -450.4 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -12.38 | 352.69 | 30.86 | 257.87 | 0.5145 | -473.0 | -414.4 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -15.95 | 353.08 | 31.26 | 251.23 | 0.5290 | -578.0 | -468.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -14.06 | 352.32 | 30.49 | 254.53 | 0.5127 | -632.0 | -501.6 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -14.80 | 352.14 | 30.31 | 253.05 | 0.5122 | -513.0 | -470.3 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -13.16 | 351.83 | 30.01 | 256.14 | 0.5036 | -662.0 | -567.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -10.77 | 350.67 | 28.85 | 260.72 | 0.4823 | -641.0 | -457.5 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -13.06 | 347.12 | 25.29 | 254.71 | 0.4333 | -677.0 | -520.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -13.31 | 346.91 | 25.08 | 254.05 | 0.4309 | -609.0 | -557.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -13.01 | 346.88 | 25.05 | 254.72 | 0.4295 | -742.0 | -634.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -14.01 | 346.78 | 24.96 | 252.40 | 0.4313 | -771.0 | -702.6 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -16.51 | 346.21 | 24.38 | 246.45 | 0.4336 | -778.0 | -582.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
