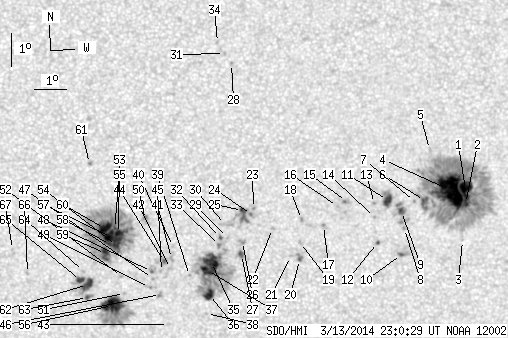

SDO HMI 2014-03-13 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 202.76 | 900.19 | 103.01 | 457.10 | -18.58 | 324.55 | 2.72 | 192.71 | 0.2197 | -106.1 | -12.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.49 | 366.30 | 8.38 | 186.16 | -17.37 | 330.16 | 8.34 | 217.88 | 0.2264 | 997.6 | 410.8 | |
| 3.56 | -1.00 | 1.81 | -1.00 | -17.80 | 330.18 | 8.36 | 216.77 | 0.2322 | 708.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -18.92 | 330.14 | 8.31 | 213.79 | 0.2470 | 677.0 | 504.6 | |
| 53.56 | -1.00 | 27.20 | -1.00 | -17.41 | 329.69 | 7.86 | 216.21 | 0.2221 | 1297.2 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -16.18 | 328.99 | 7.16 | 217.31 | 0.1983 | 128.0 | 154.0 | |
| 3.12 | -1.00 | 1.59 | -1.00 | -17.73 | 328.89 | 7.06 | 212.53 | 0.2187 | 1007.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.76 | 328.57 | 6.74 | 211.29 | 0.2164 | 928.0 | 788.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -18.58 | 328.29 | 6.46 | 208.29 | 0.2260 | 762.0 | 577.4 | |
| 2.34 | 15.36 | 1.19 | 7.80 | -18.07 | 328.17 | 6.35 | 209.04 | 0.2175 | 1017.0 | 755.7 | |
| 0.87 | 4.51 | 0.44 | 2.30 | -19.37 | 328.22 | 6.39 | 206.40 | 0.2373 | -708.1 | -150.0 | |
| 6.08 | 13.19 | 3.08 | 6.68 | -17.74 | 327.72 | 5.89 | 208.06 | 0.2089 | 1153.7 | 801.6 | |
| 0.52 | 1.65 | 0.26 | 0.84 | -19.02 | 327.45 | 5.62 | 204.27 | 0.2263 | -594.8 | -560.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -17.83 | 327.32 | 5.49 | 206.20 | 0.2072 | 890.0 | 680.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -18.26 | 327.33 | 5.50 | 205.33 | 0.2138 | 855.0 | 672.8 | |
| 0.00 | 3.21 | 0.00 | 1.62 | -17.78 | 326.44 | 4.61 | 202.57 | 0.2002 | 1095.0 | 899.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -17.94 | 326.16 | 4.33 | 201.05 | 0.2009 | 806.0 | 714.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -18.52 | 325.73 | 3.90 | 198.18 | 0.2077 | 980.0 | 821.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.34 | 325.03 | 3.21 | 195.36 | 0.2014 | 1014.0 | 821.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -19.04 | 325.01 | 3.19 | 194.36 | 0.2129 | 676.0 | 482.7 | |
| 0.78 | 4.43 | 0.40 | 2.25 | -19.56 | 324.99 | 3.17 | 193.66 | 0.2214 | 958.3 | 798.3 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -19.47 | 324.71 | 2.88 | 192.56 | 0.2188 | 715.0 | 604.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.62 | 324.13 | 2.30 | 190.87 | 0.2025 | -850.0 | -588.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -18.01 | 323.52 | 1.70 | 188.53 | 0.1906 | -1006.0 | -851.8 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -18.19 | 323.46 | 1.63 | 188.09 | 0.1935 | -1134.0 | -898.3 | |
| 2.08 | 15.88 | 1.05 | 8.02 | -18.07 | 323.18 | 1.35 | 186.78 | 0.1908 | 405.0 | -305.5 | |
| 0.00 | 3.73 | 0.00 | 1.89 | -19.01 | 323.19 | 1.36 | 186.25 | 0.2069 | -889.0 | -765.1 | |
| 1.74 | 4.08 | 0.88 | 2.07 | -19.41 | 323.16 | 1.33 | 185.91 | 0.2136 | -974.2 | -642.9 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -13.64 | 322.82 | 0.99 | 188.52 | 0.1140 | 885.0 | 657.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -18.89 | 322.71 | 0.89 | 184.13 | 0.2041 | -926.0 | -802.3 | |
| 0.00 | 5.03 | 0.00 | 2.54 | -18.50 | 322.65 | 0.82 | 183.97 | 0.1973 | 21.0 | -96.8 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -13.34 | 322.60 | 0.78 | 187.02 | 0.1083 | 736.0 | 550.1 | |
| 0.78 | 2.17 | 0.40 | 1.10 | -18.89 | 322.49 | 0.66 | 183.10 | 0.2039 | -976.8 | -604.4 | |
| 0.00 | 2.86 | 0.00 | 1.45 | -19.14 | 322.46 | 0.63 | 182.89 | 0.2080 | -1148.0 | -949.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -13.01 | 322.39 | 0.56 | 185.38 | 0.1022 | 858.0 | 669.3 | |
| 16.41 | 117.53 | 8.32 | 59.71 | -19.65 | 322.21 | 0.38 | 181.67 | 0.2167 | -1233.2 | -286.0 | |
| 7.55 | -35.00 | 3.85 | -35.00 | -20.63 | 322.15 | 0.32 | 181.29 | 0.2334 | 983.0 | 999999 | |
| 8.25 | -35.00 | 4.19 | -35.00 | -19.90 | 322.08 | 0.26 | 181.09 | 0.2208 | -1095.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -21.21 | 322.05 | 0.22 | 180.86 | 0.2433 | 667.0 | 527.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -20.05 | 321.51 | -0.31 | 178.67 | 0.2235 | 670.0 | 527.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.16 | 321.01 | -0.82 | 176.29 | 0.2087 | -781.0 | -535.9 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -19.53 | 320.95 | -0.88 | 176.11 | 0.2150 | -945.0 | -756.8 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -19.84 | 320.91 | -0.92 | 176.07 | 0.2202 | -725.0 | -638.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -21.55 | 320.84 | -0.99 | 176.28 | 0.2495 | 668.0 | 435.6 | |
| 0.78 | 3.30 | 0.40 | 1.67 | -19.62 | 320.72 | -1.10 | 175.18 | 0.2168 | -1157.4 | -929.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -19.93 | 320.63 | -1.20 | 174.89 | 0.2222 | -783.0 | -715.9 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -20.63 | 320.59 | -1.24 | 175.02 | 0.2342 | -845.0 | -669.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.14 | 320.34 | -1.49 | 173.78 | 0.2263 | -942.0 | -775.5 | |
| 0.35 | 5.03 | 0.18 | 2.56 | -19.92 | 320.31 | -1.52 | 173.55 | 0.2227 | -1077.2 | -798.5 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -20.41 | 320.24 | -1.59 | 173.52 | 0.2311 | -696.0 | -557.2 | |
| 0.00 | 4.34 | 0.00 | 2.19 | -18.34 | 320.14 | -1.69 | 171.76 | 0.1962 | -871.0 | -776.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -20.59 | 319.44 | -2.39 | 170.45 | 0.2360 | -900.0 | -723.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -20.07 | 319.36 | -2.47 | 169.70 | 0.2275 | -884.0 | -635.7 | |
| 5.29 | 191.31 | 2.68 | 96.84 | -18.76 | 319.28 | -2.54 | 168.16 | 0.2058 | -1327.6 | -499.5 | |
| 3.12 | -53.00 | 1.58 | -53.00 | -19.13 | 319.21 | -2.61 | 168.23 | 0.2121 | -1005.9 | 999999 | |
| 0.52 | -53.00 | 0.26 | -53.00 | -18.61 | 319.16 | -2.67 | 167.43 | 0.2037 | -1117.7 | 999999 | |
| 23.18 | 66.14 | 11.83 | 33.79 | -20.96 | 319.05 | -2.77 | 169.24 | 0.2433 | -1100.7 | -331.6 | |
| 13.89 | -53.00 | 7.03 | -53.00 | -18.88 | 319.06 | -2.77 | 167.29 | 0.2086 | -1329.9 | 999999 | |
| 2.60 | -53.00 | 1.32 | -53.00 | -19.09 | 319.02 | -2.80 | 167.37 | 0.2123 | -1076.6 | 999999 | |
| 7.20 | -53.00 | 3.66 | -53.00 | -19.37 | 318.86 | -2.97 | 166.97 | 0.2175 | -979.9 | 999999 | |
| 9.90 | -53.00 | 5.01 | -53.00 | -18.61 | 318.84 | -2.98 | 166.01 | 0.2049 | -1280.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -16.63 | 318.41 | -3.41 | 160.82 | 0.1745 | -917.0 | -791.6 | |
| 7.55 | 19.88 | 3.85 | 10.13 | -20.31 | 318.27 | -3.56 | 165.62 | 0.2354 | -1070.0 | -579.6 | |
| 0.95 | 3.30 | 0.49 | 1.68 | -20.71 | 318.26 | -3.57 | 166.02 | 0.2420 | -676.0 | -763.9 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.91 | 318.15 | -3.67 | 164.70 | 0.2294 | -931.0 | -660.9 | |
| 3.30 | -62.00 | 1.68 | -62.00 | -20.18 | 318.05 | -3.78 | 164.63 | 0.2343 | -975.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -19.95 | 316.37 | -5.46 | 158.00 | 0.2397 | -902.0 | -686.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -19.21 | 315.92 | -5.91 | 155.04 | 0.2313 | -865.0 | -643.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
