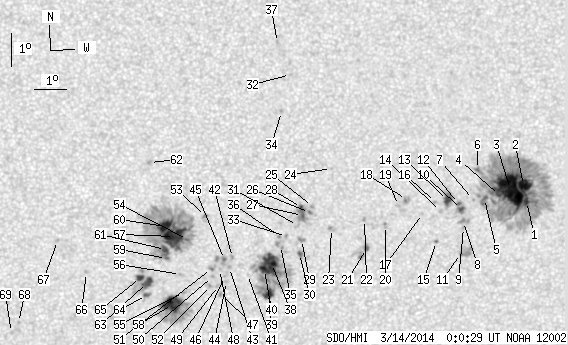

SDO HMI 2014-03-14 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.66 | 906.43 | 94.84 | 460.39 | -18.56 | 324.62 | 3.34 | 195.19 | 0.2218 | -162.1 | 1.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.30 | 376.34 | 1.68 | 191.49 | -17.76 | 330.23 | 8.96 | 218.75 | 0.2379 | 727.9 | 417.1 | |
| 11.98 | -1.00 | 6.10 | -1.00 | -17.28 | 330.11 | 8.84 | 219.75 | 0.2304 | 1051.5 | 999999 | |
| 46.88 | -1.00 | 23.84 | -1.00 | -17.41 | 329.71 | 8.43 | 218.11 | 0.2278 | 1300.6 | 999999 | |
| 1.04 | -1.00 | 0.53 | -1.00 | -17.59 | 329.37 | 8.09 | 216.47 | 0.2268 | 955.2 | 999999 | |
| 1.65 | -1.00 | 0.84 | -1.00 | -17.69 | 328.90 | 7.62 | 214.62 | 0.2235 | 1045.6 | 999999 | |
| 0.69 | -1.00 | 0.35 | -1.00 | -16.82 | 328.65 | 7.37 | 216.16 | 0.2091 | 1002.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.73 | 328.56 | 7.28 | 213.32 | 0.2207 | 845.0 | 774.0 | |
| 0.00 | 4.69 | 0.00 | 2.38 | -18.40 | 328.27 | 6.99 | 210.63 | 0.2277 | 824.0 | 708.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -18.58 | 328.27 | 7.00 | 210.23 | 0.2304 | 717.0 | 592.2 | |
| 2.26 | 8.59 | 1.15 | 4.36 | -18.03 | 328.19 | 6.91 | 211.22 | 0.2218 | 1027.2 | 789.2 | |
| 0.35 | 10.94 | 0.18 | 5.58 | -19.37 | 328.21 | 6.93 | 208.28 | 0.2415 | -647.5 | 97.7 | |
| 0.87 | -10.00 | 0.44 | -10.00 | -17.85 | 328.09 | 6.81 | 211.30 | 0.2183 | 1079.1 | 999999 | |
| 4.86 | 10.85 | 2.46 | 5.50 | -17.77 | 327.74 | 6.46 | 210.20 | 0.2140 | 1144.4 | 827.6 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -18.10 | 327.53 | 6.25 | 208.61 | 0.2172 | 820.0 | 640.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -19.02 | 327.44 | 6.16 | 206.28 | 0.2301 | -635.0 | -585.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -17.83 | 327.36 | 6.09 | 208.60 | 0.2118 | 911.0 | 706.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -18.17 | 326.97 | 5.69 | 206.26 | 0.2138 | 731.0 | 475.9 | |
| 0.00 | 4.17 | 0.00 | 2.11 | -17.75 | 326.45 | 5.17 | 205.07 | 0.2036 | 1064.0 | 831.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -17.94 | 326.20 | 4.93 | 203.64 | 0.2047 | 684.0 | 609.6 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -18.55 | 325.81 | 4.53 | 200.82 | 0.2118 | 740.0 | 688.6 | |
| 1.39 | 9.46 | 0.71 | 4.80 | -19.25 | 325.23 | 3.95 | 197.28 | 0.2199 | 1028.6 | 630.3 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -18.37 | 325.14 | 3.87 | 198.27 | 0.2052 | 960.0 | 742.8 | |
| 0.00 | 2.52 | 0.00 | 1.27 | -18.65 | 324.11 | 2.83 | 193.28 | 0.2050 | -917.0 | -689.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.83 | 324.09 | 2.81 | 195.65 | 0.1746 | 761.0 | 561.8 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -17.98 | 323.51 | 2.23 | 191.18 | 0.1916 | -940.0 | -709.3 | |
| 0.43 | 15.89 | 0.22 | 8.02 | -18.16 | 323.41 | 2.14 | 190.55 | 0.1944 | -953.4 | -399.1 | |
| 0.69 | -26.00 | 0.35 | -26.00 | -18.26 | 323.20 | 1.92 | 189.41 | 0.1953 | -1046.2 | 999999 | |
| 1.22 | -26.00 | 0.61 | -26.00 | -18.01 | 323.16 | 1.88 | 189.46 | 0.1911 | 747.4 | 999999 | |
| 0.00 | 3.65 | 0.00 | 1.85 | -18.99 | 323.17 | 1.89 | 188.70 | 0.2076 | -926.0 | -773.8 | |
| 1.22 | 4.60 | 0.62 | 2.33 | -19.41 | 323.11 | 1.84 | 188.12 | 0.2147 | -917.9 | -661.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -18.56 | 323.04 | 1.76 | 188.43 | 0.2001 | -626.0 | -613.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.00 | 322.79 | 1.51 | 192.21 | 0.1218 | 639.0 | 409.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.90 | 322.70 | 1.42 | 186.60 | 0.2050 | -951.0 | -752.3 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -15.12 | 322.52 | 1.24 | 188.64 | 0.1400 | 959.0 | 713.4 | |
| 0.00 | 5.12 | 0.00 | 2.59 | -19.17 | 322.51 | 1.23 | 185.60 | 0.2093 | -594.0 | -864.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -18.90 | 322.48 | 1.20 | 185.58 | 0.2046 | -1019.0 | -962.4 | |
| 0.00 | 1.48 | 0.00 | 0.73 | -13.05 | 322.39 | 1.11 | 190.51 | 0.1041 | 795.0 | 577.9 | |
| 18.06 | 105.57 | 9.16 | 53.64 | -19.72 | 322.23 | 0.95 | 184.13 | 0.2183 | -1175.7 | -250.4 | |
| 7.38 | -38.00 | 3.76 | -38.00 | -20.64 | 322.14 | 0.86 | 183.46 | 0.2338 | 981.7 | 999999 | |
| 7.03 | -38.00 | 3.57 | -38.00 | -19.90 | 322.01 | 0.73 | 183.12 | 0.2212 | -1104.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -20.06 | 321.47 | 0.19 | 180.81 | 0.2235 | 659.0 | 413.4 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -19.54 | 321.00 | -0.28 | 178.76 | 0.2146 | -874.0 | -724.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.84 | 320.90 | -0.38 | 178.38 | 0.2199 | -806.0 | -692.9 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -20.27 | 320.80 | -0.47 | 178.03 | 0.2272 | -771.0 | -541.7 | |
| 0.69 | 6.42 | 0.35 | 3.26 | -19.60 | 320.74 | -0.53 | 177.65 | 0.2158 | -1166.5 | -910.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -20.12 | 320.74 | -0.54 | 177.74 | 0.2247 | -827.0 | -647.9 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -20.67 | 320.61 | -0.67 | 177.32 | 0.2342 | -816.0 | -703.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -19.90 | 320.58 | -0.69 | 177.03 | 0.2211 | -759.0 | -584.3 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -20.39 | 320.55 | -0.73 | 177.01 | 0.2295 | -728.0 | -548.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.11 | 320.36 | -0.92 | 176.15 | 0.2250 | -930.0 | -747.4 | |
| 0.35 | 3.13 | 0.18 | 1.59 | -19.87 | 320.33 | -0.95 | 175.94 | 0.2209 | -1061.0 | -891.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -20.39 | 320.29 | -0.98 | 175.97 | 0.2298 | -812.0 | -632.9 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -18.29 | 320.15 | -1.12 | 174.46 | 0.1941 | -978.0 | -835.5 | |
| 0.78 | 190.21 | 0.40 | 96.23 | -18.98 | 319.58 | -1.70 | 172.19 | 0.2071 | -780.9 | -485.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -20.60 | 319.43 | -1.84 | 172.59 | 0.2348 | -771.0 | -615.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.05 | 319.34 | -1.93 | 171.89 | 0.2257 | -834.0 | -675.8 | |
| 25.52 | -54.00 | 12.92 | -54.00 | -18.89 | 319.17 | -2.11 | 170.26 | 0.2066 | -1245.3 | 999999 | |
| 21.62 | 62.85 | 11.03 | 32.10 | -20.97 | 319.08 | -2.20 | 171.43 | 0.2418 | -1104.7 | -367.8 | |
| 0.61 | -54.00 | 0.31 | -54.00 | -19.56 | 318.91 | -2.37 | 169.69 | 0.2186 | -842.0 | 999999 | |
| 10.50 | -54.00 | 5.31 | -54.00 | -18.58 | 318.89 | -2.38 | 168.70 | 0.2023 | -1260.0 | 999999 | |
| 3.91 | -54.00 | 1.98 | -54.00 | -19.28 | 318.88 | -2.40 | 169.33 | 0.2141 | -1032.1 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -16.64 | 318.42 | -2.85 | 163.79 | 0.1717 | -1019.0 | -817.9 | |
| 6.60 | 31.86 | 3.36 | 16.23 | -20.29 | 318.29 | -2.98 | 167.84 | 0.2328 | -1077.3 | -510.2 | |
| 1.39 | -63.00 | 0.71 | -63.00 | -20.68 | 318.25 | -3.02 | 168.05 | 0.2396 | -843.9 | 999999 | |
| 3.39 | -63.00 | 1.72 | -63.00 | -20.13 | 318.07 | -3.20 | 166.81 | 0.2311 | -977.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -19.96 | 316.36 | -4.92 | 160.00 | 0.2366 | -811.0 | -626.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -18.98 | 315.48 | -5.80 | 154.96 | 0.2269 | -869.0 | -626.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -21.46 | 314.12 | -7.16 | 154.88 | 0.2743 | -696.0 | -620.9 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -21.77 | 313.88 | -7.40 | 154.66 | 0.2806 | -778.0 | -604.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
