SDO HMI 2014-03-14 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 80.53 | 0.00 | 42.84 | -10.56 | 300.92 | -20.36 | 101.17 | 0.3555 | 279.1 | 283.8 | |
|
previous
or next observation for the same group /

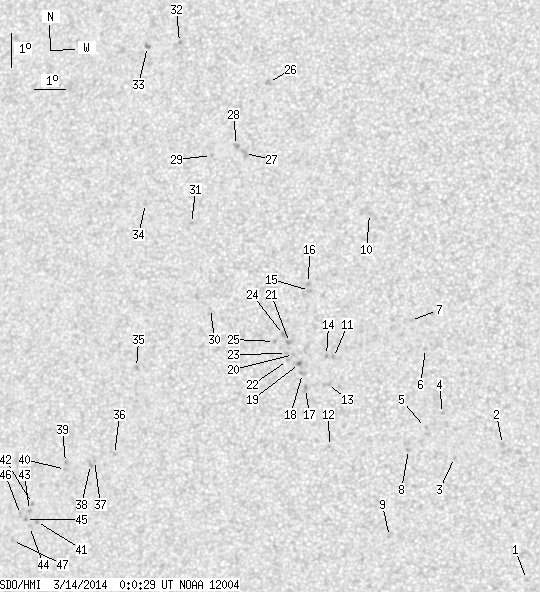

back to the solar disc SDO HMI 2014-03-14 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.67 | -17.98 | 309.58 | -11.69 | 134.50 | 0.2715 | 788.0 | 504.9 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -13.89 | 309.07 | -12.20 | 120.17 | 0.2384 | 925.0 | 574.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.24 | 307.54 | -13.74 | 118.70 | 0.2636 | 766.0 | 540.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -12.91 | 307.24 | -14.03 | 113.57 | 0.2590 | 816.0 | 591.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.31 | 306.68 | -14.59 | 114.23 | 0.2701 | 794.0 | 725.9 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -10.95 | 306.82 | -14.46 | 105.79 | 0.2559 | 759.0 | 637.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.10 | 306.39 | -14.89 | 102.21 | 0.2600 | 705.0 | 573.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -13.95 | 306.10 | -15.18 | 115.62 | 0.2830 | 767.0 | 627.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.55 | 305.29 | -15.99 | 122.32 | 0.3138 | 674.0 | 552.6 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -6.87 | 305.25 | -16.03 | 89.81 | 0.2754 | 747.0 | 650.8 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -11.12 | 303.90 | -17.37 | 104.16 | 0.3035 | 943.0 | 745.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.77 | 303.59 | -17.69 | 112.16 | 0.3201 | 685.0 | 532.7 | |
| 0.00 | 4.77 | 0.00 | 2.49 | -11.92 | 303.66 | -17.62 | 106.54 | 0.3103 | 746.0 | 625.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -11.05 | 303.68 | -17.59 | 103.80 | 0.3068 | 787.0 | 674.8 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -9.09 | 303.26 | -18.02 | 97.29 | 0.3093 | 825.0 | 743.2 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -8.88 | 303.24 | -18.04 | 96.61 | 0.3094 | 800.0 | 612.7 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -12.01 | 302.95 | -18.33 | 106.32 | 0.3219 | 724.0 | 691.6 | |
| 0.00 | 2.78 | 0.00 | 1.45 | -11.56 | 302.88 | -18.39 | 104.90 | 0.3213 | 753.0 | 560.4 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -11.26 | 302.81 | -18.47 | 103.93 | 0.3215 | 976.0 | 841.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -10.98 | 302.63 | -18.64 | 102.98 | 0.3235 | 891.0 | 695.8 | |
| 0.00 | 3.21 | 0.00 | 1.68 | -10.62 | 302.53 | -18.75 | 101.82 | 0.3242 | 732.0 | 620.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -11.15 | 302.43 | -18.85 | 103.39 | 0.3272 | 611.0 | 503.1 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -10.94 | 302.41 | -18.86 | 102.75 | 0.3269 | 605.0 | 433.8 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -10.37 | 302.35 | -18.92 | 100.99 | 0.3264 | 675.0 | 629.9 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -10.57 | 302.05 | -19.22 | 101.45 | 0.3317 | 688.0 | 549.3 | |
| 0.00 | 3.13 | 0.00 | 1.64 | -2.85 | 302.19 | -19.09 | 78.06 | 0.3353 | 745.0 | 716.5 | |
| 0.00 | 4.95 | 0.00 | 2.61 | -4.93 | 301.37 | -19.90 | 84.58 | 0.3422 | 727.0 | 695.5 | |
| 0.00 | 2.69 | 0.00 | 1.42 | -4.68 | 301.13 | -20.15 | 83.96 | 0.3468 | 877.0 | 740.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -4.94 | 300.32 | -20.96 | 85.00 | 0.3593 | 716.0 | 595.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -9.49 | 300.06 | -21.22 | 97.72 | 0.3618 | -614.0 | -433.0 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -6.94 | 299.59 | -21.68 | 90.65 | 0.3684 | 734.0 | 611.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -1.52 | 299.37 | -21.90 | 76.44 | 0.3853 | -861.0 | -715.2 | |
| 0.00 | 2.34 | 0.00 | 1.27 | -1.59 | 298.34 | -22.94 | 77.29 | 0.4011 | 947.0 | 791.7 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -6.27 | 298.13 | -23.15 | 89.08 | 0.3925 | 776.0 | 565.2 | |
| 0.00 | 1.56 | 0.00 | 0.85 | -11.13 | 297.51 | -23.77 | 101.30 | 0.4051 | -772.0 | -698.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -13.69 | 296.51 | -24.77 | 106.98 | 0.4274 | -789.0 | -690.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -13.84 | 295.82 | -25.46 | 106.97 | 0.4383 | -719.0 | -631.1 | |
| 0.00 | 2.60 | 0.00 | 1.44 | -13.95 | 295.67 | -25.61 | 107.15 | 0.4409 | -797.0 | -694.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -13.84 | 294.82 | -26.45 | 106.53 | 0.4531 | -892.0 | -767.9 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -14.05 | 294.80 | -26.48 | 106.97 | 0.4541 | -680.0 | -559.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -15.55 | 293.59 | -27.69 | 109.56 | 0.4771 | -902.0 | -769.8 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -15.01 | 293.53 | -27.75 | 108.41 | 0.4760 | -784.0 | -691.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -15.21 | 293.39 | -27.89 | 108.77 | 0.4786 | -925.0 | -806.8 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -15.69 | 293.32 | -27.96 | 109.71 | 0.4814 | -642.0 | -540.3 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -15.47 | 293.21 | -28.06 | 109.21 | 0.4821 | -821.0 | -697.7 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -15.31 | 293.06 | -28.22 | 108.82 | 0.4837 | -622.0 | -622.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -16.07 | 292.66 | -28.61 | 110.16 | 0.4922 | -764.0 | -620.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
