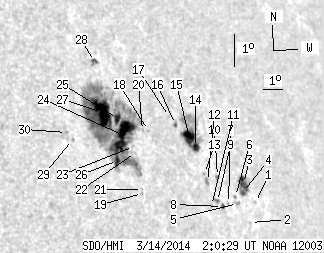

SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.41 | 361.10 | 77.38 | 293.49 | 5.66 | 11.16 | 50.99 | 282.88 | 0.7949 | 211.2 | 178.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.81 | 4.18 | 16.98 | 56.81 | 279.57 | 0.8485 | -246.0 | -228.9 | |
| 0.00 | 0.87 | 0.00 | 0.80 | 3.54 | 16.64 | 56.46 | 278.90 | 0.8442 | -533.0 | -446.0 | |
| 7.47 | 17.11 | 6.85 | 15.71 | 4.69 | 16.39 | 56.21 | 280.31 | 0.8440 | -510.1 | -222.1 | |
| 1.74 | -3.00 | 1.59 | -3.00 | 4.41 | 16.30 | 56.12 | 280.00 | 0.8427 | -556.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.49 | 4.04 | 15.99 | 55.81 | 279.64 | 0.8391 | -516.0 | -449.4 | |
| 0.00 | 0.96 | 0.00 | 0.86 | 4.25 | 15.91 | 55.73 | 279.90 | 0.8387 | -544.0 | -508.7 | |
| 0.00 | 0.78 | 0.00 | 0.70 | 3.99 | 15.51 | 55.33 | 279.70 | 0.8345 | -397.0 | -321.2 | |
| 1.22 | 2.00 | 1.08 | 1.77 | 3.87 | 15.18 | 55.00 | 279.63 | 0.8311 | -425.8 | -390.0 | |
| 0.61 | 2.43 | 0.54 | 2.14 | 3.99 | 14.93 | 54.75 | 279.84 | 0.8290 | -652.0 | -577.6 | |
| 0.00 | 1.65 | 0.00 | 1.46 | 4.76 | 15.02 | 54.84 | 280.72 | 0.8314 | -594.0 | -537.7 | |
| 0.00 | 0.78 | 0.00 | 0.68 | 3.84 | 14.60 | 54.43 | 279.73 | 0.8256 | -476.0 | -486.3 | |
| 0.00 | 2.61 | 0.00 | 2.27 | 4.55 | 14.47 | 54.30 | 280.61 | 0.8257 | -639.0 | -546.1 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 4.78 | 14.35 | 54.17 | 280.92 | 0.8250 | -584.0 | -480.0 | |
| 3.91 | 46.46 | 3.39 | 40.25 | 5.54 | 13.98 | 53.80 | 281.91 | 0.8231 | -541.2 | -156.1 | |
| 11.38 | -14.00 | 9.82 | -14.00 | 5.81 | 13.71 | 53.54 | 282.31 | 0.8211 | -640.3 | 999999 | |
| 0.69 | 2.34 | 0.59 | 2.00 | 6.14 | 13.06 | 52.88 | 282.89 | 0.8155 | -562.1 | -438.7 | |
| 0.00 | 0.78 | 0.00 | 0.66 | 6.36 | 12.79 | 52.61 | 283.22 | 0.8134 | -541.0 | -501.9 | |
| 0.00 | 1.04 | 0.00 | 0.86 | 5.82 | 11.69 | 51.51 | 282.89 | 0.8010 | 241.0 | 203.0 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 3.86 | 11.18 | 51.00 | 280.62 | 0.7912 | -538.0 | -435.8 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 5.79 | 11.39 | 51.21 | 282.94 | 0.7980 | 194.0 | 211.5 | |
| 0.00 | 0.61 | 0.00 | 0.49 | 3.98 | 11.19 | 51.01 | 280.77 | 0.7916 | -512.0 | -478.4 | |
| 0.00 | 0.43 | 0.00 | 0.35 | 5.08 | 10.97 | 50.79 | 282.19 | 0.7919 | 205.0 | 163.8 | |
| 0.00 | 1.13 | 0.00 | 0.91 | 5.26 | 10.90 | 50.72 | 282.43 | 0.7915 | 291.0 | 215.8 | |
| 29.87 | 267.48 | 23.90 | 212.02 | 5.55 | 10.46 | 50.28 | 282.92 | 0.7877 | 637.5 | 307.6 | |
| 4.95 | -24.00 | 3.95 | -24.00 | 6.05 | 10.24 | 50.06 | 283.60 | 0.7867 | 590.6 | 999999 | |
| 3.65 | -24.00 | 2.88 | -24.00 | 4.75 | 10.09 | 49.91 | 282.04 | 0.7818 | 511.8 | 999999 | |
| 27.79 | -24.00 | 21.90 | -24.00 | 6.16 | 9.55 | 49.37 | 283.96 | 0.7799 | 826.8 | 999999 | |
| 1.13 | 3.73 | 0.89 | 2.96 | 7.71 | 9.41 | 49.23 | 285.93 | 0.7827 | 534.2 | 509.9 | |
| 0.00 | 1.39 | 0.00 | 1.06 | 5.20 | 8.07 | 47.90 | 283.22 | 0.7613 | 692.0 | 552.0 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 5.39 | 7.83 | 47.65 | 283.54 | 0.7591 | 660.0 | 598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
