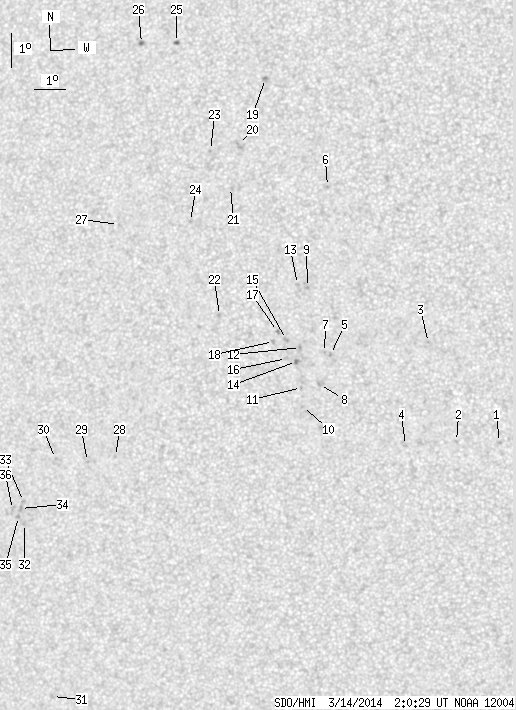

SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 58.62 | 0.74 | 31.12 | -10.59 | 300.01 | -20.16 | 100.71 | 0.3531 | 284.3 | 222.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.79 | -13.89 | 309.10 | -11.08 | 122.49 | 0.2222 | 773.0 | 587.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -13.83 | 307.75 | -12.42 | 119.51 | 0.2412 | 789.0 | 616.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.84 | 307.03 | -13.15 | 106.64 | 0.2342 | 856.0 | 627.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -13.90 | 306.14 | -14.04 | 117.07 | 0.2656 | 845.0 | 641.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -11.10 | 303.94 | -16.24 | 104.89 | 0.2852 | 1016.0 | 758.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -6.09 | 304.07 | -16.11 | 87.01 | 0.2775 | 876.0 | 752.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -11.04 | 303.76 | -16.42 | 104.53 | 0.2880 | 779.0 | 641.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.99 | 303.54 | -16.64 | 107.54 | 0.2951 | 785.0 | 686.1 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -9.08 | 303.32 | -16.85 | 97.58 | 0.2901 | 1003.0 | 841.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.62 | 302.95 | -17.23 | 109.08 | 0.3072 | 723.0 | 602.2 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -12.05 | 302.96 | -17.22 | 107.29 | 0.3045 | 647.0 | 541.9 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -10.86 | 303.00 | -17.17 | 103.44 | 0.2995 | 810.0 | 650.9 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -8.98 | 303.01 | -17.16 | 97.14 | 0.2951 | 739.0 | 603.2 | |
| 0.00 | 2.69 | 0.00 | 1.40 | -11.27 | 302.85 | -17.33 | 104.69 | 0.3033 | 931.0 | 789.4 | |
| 0.00 | 2.34 | 0.00 | 1.22 | -10.60 | 302.58 | -17.60 | 102.36 | 0.3057 | 820.0 | 663.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -11.17 | 302.54 | -17.64 | 104.16 | 0.3080 | 579.0 | 474.8 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -10.35 | 302.30 | -17.87 | 101.42 | 0.3094 | 684.0 | 614.5 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -10.65 | 302.16 | -18.02 | 102.28 | 0.3125 | 726.0 | 547.0 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -2.80 | 302.22 | -17.96 | 77.09 | 0.3174 | 1011.0 | 820.3 | |
| 0.00 | 2.95 | 0.00 | 1.55 | -4.74 | 301.32 | -18.86 | 83.57 | 0.3256 | 666.0 | 680.3 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -6.01 | 301.03 | -19.15 | 87.55 | 0.3280 | 537.0 | 601.8 | |
| 0.00 | 1.74 | 0.00 | 0.91 | -9.80 | 300.48 | -19.70 | 99.00 | 0.3377 | -806.0 | -647.5 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -4.88 | 300.43 | -19.75 | 84.37 | 0.3398 | 646.0 | 603.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -6.96 | 299.71 | -20.47 | 90.61 | 0.3487 | 733.0 | 549.6 | |
| 0.69 | 2.43 | 0.37 | 1.29 | -1.60 | 299.42 | -20.76 | 75.84 | 0.3670 | -911.9 | -688.3 | |
| 0.69 | 2.61 | 0.37 | 1.40 | -1.58 | 298.30 | -21.88 | 76.58 | 0.3846 | 899.1 | 740.0 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -6.94 | 297.38 | -22.80 | 90.78 | 0.3863 | -643.0 | -523.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -13.85 | 296.73 | -23.45 | 108.05 | 0.4081 | -618.0 | -498.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -13.95 | 295.78 | -24.40 | 107.77 | 0.4228 | -829.0 | -627.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.81 | 294.71 | -25.47 | 106.90 | 0.4383 | -731.0 | -603.6 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -20.98 | 293.49 | -26.69 | 120.88 | 0.4906 | 32.0 | 96.7 | |
| 0.00 | 1.74 | 0.00 | 0.97 | -15.70 | 293.40 | -26.78 | 110.33 | 0.4645 | -583.0 | -549.2 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -15.04 | 293.46 | -26.72 | 108.97 | 0.4611 | -813.0 | -676.2 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -15.24 | 293.33 | -26.85 | 109.33 | 0.4638 | -944.0 | -735.3 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -15.48 | 293.22 | -26.96 | 109.77 | 0.4662 | -894.0 | -726.8 | |
| 0.00 | 3.21 | 0.00 | 1.80 | -15.25 | 293.05 | -27.13 | 109.22 | 0.4679 | -681.0 | -641.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
