SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.03 | 57.30 | 13.95 | 46.95 | 11.50 | 9.81 | 49.64 | 290.37 | 0.7986 | -124.7 | -162.7 | |
|
previous
or next observation for the same group /

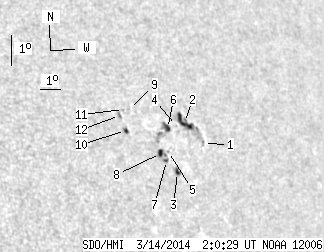

back to the solar disc SDO HMI 2014-03-14 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.61 | 11.30 | 11.28 | 51.10 | 289.58 | 0.8123 | -413.0 | -303.4 | |
| 8.08 | 23.53 | 6.74 | 19.69 | 11.88 | 10.51 | 50.33 | 290.55 | 0.8067 | -592.8 | -346.7 | |
| 1.48 | 4.08 | 1.20 | 3.31 | 10.25 | 9.79 | 49.61 | 288.88 | 0.7944 | 490.9 | 409.7 | |
| 0.00 | 0.52 | 0.00 | 0.43 | 11.74 | 10.09 | 49.92 | 290.56 | 0.8023 | -512.0 | -455.8 | |
| 0.00 | 0.61 | 0.00 | 0.49 | 10.87 | 9.51 | 49.33 | 289.74 | 0.7937 | 200.0 | 143.4 | |
| 2.69 | 13.11 | 2.20 | 10.64 | 11.60 | 9.63 | 49.46 | 290.57 | 0.7973 | -588.9 | -434.2 | |
| 0.78 | 2.26 | 0.63 | 1.82 | 10.58 | 9.35 | 49.17 | 289.45 | 0.7911 | 495.7 | 450.8 | |
| 2.78 | 5.38 | 2.23 | 4.33 | 10.77 | 9.11 | 48.93 | 289.78 | 0.7894 | 546.6 | 433.0 | |
| 0.00 | 0.69 | 0.00 | 0.55 | 12.07 | 7.99 | 47.81 | 291.80 | 0.7826 | 400.0 | 266.4 | |
| 1.22 | 2.52 | 0.95 | 1.97 | 11.35 | 7.64 | 47.46 | 291.07 | 0.7764 | 355.4 | 307.3 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 12.01 | 7.70 | 47.52 | 291.85 | 0.7795 | 325.0 | 233.8 | |
| 0.00 | 2.26 | 0.00 | 1.77 | 11.80 | 7.47 | 47.29 | 291.69 | 0.7764 | 345.0 | 310.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
