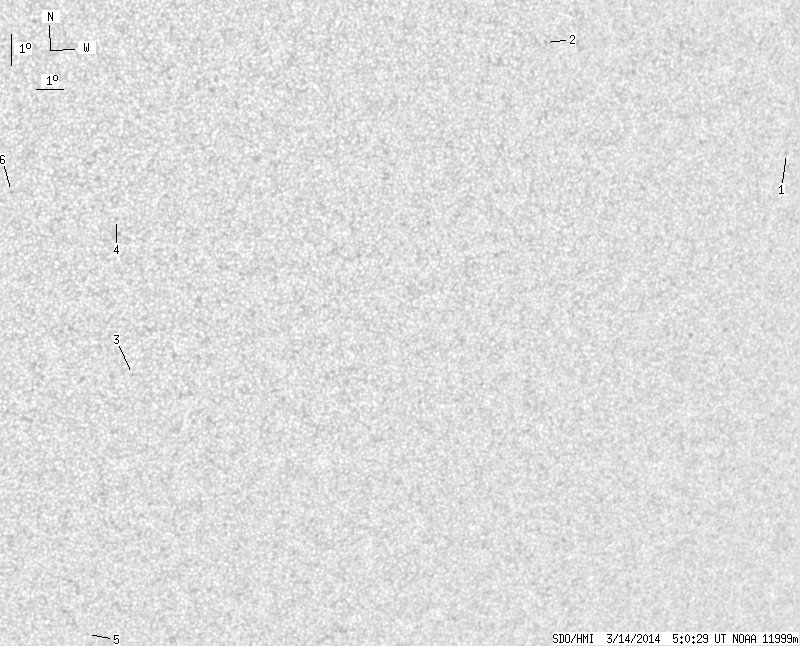

SDO HMI 2014-03-14 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.96 | 0.00 | 4.06 | -24.60 | 343.67 | 25.13 | 229.02 | 0.5152 | -529.8 | -371.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.87 | -20.72 | 359.80 | 41.26 | 246.91 | 0.6729 | 188.0 | 207.7 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -18.02 | 349.64 | 31.10 | 247.35 | 0.5344 | -643.0 | -449.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -29.02 | 336.94 | 18.40 | 216.18 | 0.4695 | -541.0 | -447.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -24.15 | 335.60 | 17.06 | 222.07 | 0.4014 | -773.0 | -626.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -37.70 | 337.15 | 18.61 | 206.22 | 0.5738 | -667.0 | -490.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -23.39 | 331.96 | 13.43 | 217.08 | 0.3551 | -743.0 | -661.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
