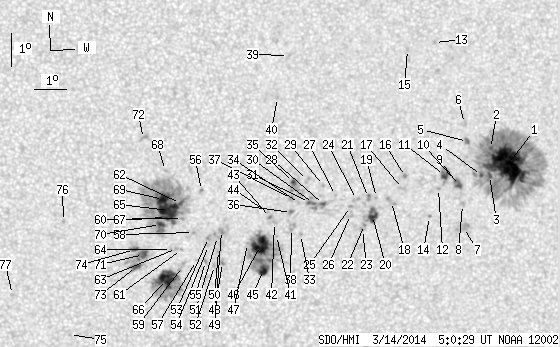

SDO HMI 2014-03-14 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200.25 | 915.65 | 102.15 | 467.04 | -18.50 | 324.84 | 6.30 | 206.21 | 0.2376 | -14.0 | -21.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.02 | 393.65 | 41.03 | 201.91 | -17.37 | 329.79 | 11.25 | 226.13 | 0.2594 | 1249.2 | 369.3 | |
| 0.87 | -1.00 | 0.44 | -1.00 | -16.90 | 329.22 | 10.68 | 226.11 | 0.2473 | 1172.0 | 999999 | |
| 1.65 | -1.00 | 0.85 | -1.00 | -17.71 | 329.23 | 10.70 | 223.75 | 0.2569 | 966.3 | 999999 | |
| 0.87 | -1.00 | 0.44 | -1.00 | -17.72 | 328.98 | 10.44 | 223.07 | 0.2540 | 994.4 | 999999 | |
| 0.78 | -1.00 | 0.40 | -1.00 | -16.70 | 328.48 | 9.94 | 224.73 | 0.2361 | 1179.4 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.28 | -16.16 | 328.36 | 9.82 | 226.11 | 0.2284 | 611.0 | 457.3 | |
| 0.00 | 8.25 | 0.00 | 4.24 | -19.31 | 328.50 | 9.96 | 217.64 | 0.2686 | 19.0 | 84.5 | |
| 0.00 | 2.78 | 0.00 | 1.43 | -18.61 | 328.43 | 9.89 | 219.17 | 0.2589 | 729.0 | 662.3 | |
| 1.91 | 6.78 | 0.98 | 3.46 | -18.04 | 328.30 | 9.76 | 220.33 | 0.2502 | 1080.9 | 917.1 | |
| 0.70 | -9.00 | 0.36 | -9.00 | -17.89 | 328.16 | 9.63 | 220.36 | 0.2469 | 1099.0 | 999999 | |
| 4.00 | 10.69 | 2.04 | 5.45 | -17.74 | 327.81 | 9.27 | 219.72 | 0.2412 | 1167.4 | 830.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.14 | 327.64 | 9.10 | 218.14 | 0.2445 | 884.0 | 754.2 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -13.74 | 327.32 | 8.78 | 232.09 | 0.1888 | 878.0 | 666.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.00 | 327.39 | 8.86 | 215.26 | 0.2534 | -570.0 | -533.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.96 | 326.49 | 7.95 | 228.42 | 0.1803 | 790.0 | 643.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -17.79 | 326.57 | 8.04 | 215.72 | 0.2291 | 1128.0 | 1049.9 | |
| 0.00 | 3.30 | 0.00 | 1.68 | -18.16 | 326.49 | 7.96 | 214.51 | 0.2333 | 799.0 | 657.3 | |
| 0.00 | 5.21 | 0.00 | 2.66 | -18.56 | 326.16 | 7.63 | 212.42 | 0.2358 | 704.0 | 762.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -18.44 | 325.68 | 7.15 | 211.05 | 0.2299 | 876.0 | 658.3 | |
| 7.82 | 15.12 | 3.99 | 7.71 | -18.99 | 325.58 | 7.04 | 209.44 | 0.2370 | 1063.6 | 630.9 | |
| 0.00 | 2.87 | 0.00 | 1.46 | -18.45 | 325.43 | 6.90 | 210.15 | 0.2278 | 956.0 | 883.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.27 | 325.34 | 6.80 | 208.02 | 0.2391 | 867.0 | 768.2 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -19.42 | 325.28 | 6.74 | 207.50 | 0.2409 | 690.0 | 628.8 | |
| 0.00 | 3.04 | 0.00 | 1.55 | -18.51 | 325.05 | 6.52 | 208.64 | 0.2256 | 666.0 | 601.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.73 | 324.87 | 6.34 | 207.51 | 0.2273 | -667.0 | -470.8 | |
| 0.00 | 4.34 | 0.00 | 2.21 | -18.97 | 324.88 | 6.35 | 207.03 | 0.2311 | 247.0 | 134.5 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -18.40 | 324.39 | 5.85 | 206.38 | 0.2187 | -727.0 | -578.2 | |
| 1.13 | 14.25 | 0.57 | 7.23 | -18.68 | 324.02 | 5.48 | 204.38 | 0.2202 | -775.6 | -408.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.10 | 324.00 | 5.46 | 205.49 | 0.2112 | 777.0 | 586.8 | |
| 0.52 | -28.00 | 0.26 | -28.00 | -18.65 | 323.70 | 5.16 | 203.18 | 0.2176 | -973.8 | 999999 | |
| 0.78 | -28.00 | 0.40 | -28.00 | -18.62 | 323.57 | 5.04 | 202.73 | 0.2163 | -747.7 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -17.95 | 323.49 | 4.96 | 203.70 | 0.2054 | -802.0 | -703.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -19.60 | 323.32 | 4.78 | 200.04 | 0.2302 | -625.0 | -435.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -18.65 | 323.26 | 4.72 | 201.39 | 0.2148 | -737.0 | -516.4 | |
| 1.82 | 12.42 | 0.92 | 6.29 | -18.02 | 323.05 | 4.52 | 201.70 | 0.2035 | 530.3 | -390.6 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -18.93 | 323.01 | 4.48 | 199.91 | 0.2178 | -1061.0 | -874.0 | |
| 0.00 | 2.87 | 0.00 | 1.45 | -18.50 | 323.00 | 4.47 | 200.59 | 0.2109 | -883.0 | -827.5 | |
| 0.00 | 5.82 | 0.00 | 2.96 | -19.42 | 323.02 | 4.49 | 199.19 | 0.2256 | -680.0 | -561.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -14.19 | 322.82 | 4.28 | 210.64 | 0.1426 | 716.0 | 432.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -15.45 | 322.50 | 3.96 | 204.83 | 0.1594 | 861.0 | 676.7 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.63 | 322.55 | 4.02 | 197.01 | 0.2267 | -741.0 | -509.5 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -19.24 | 322.48 | 3.95 | 197.27 | 0.2199 | -923.0 | -699.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.09 | 322.35 | 3.82 | 196.95 | 0.2168 | -1137.0 | -952.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -18.94 | 322.25 | 3.72 | 196.75 | 0.2138 | -984.0 | -765.6 | |
| 7.82 | 89.75 | 3.99 | 45.71 | -20.68 | 322.17 | 3.63 | 194.24 | 0.2419 | 866.4 | -281.1 | |
| 20.76 | -45.00 | 10.56 | -45.00 | -19.94 | 322.05 | 3.52 | 194.63 | 0.2294 | -1219.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -19.88 | 321.64 | 3.10 | 193.04 | 0.2268 | -522.0 | -399.9 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -20.47 | 320.85 | 2.32 | 189.37 | 0.2339 | -798.0 | -705.2 | |
| 0.00 | 3.30 | 0.00 | 1.68 | -19.49 | 320.81 | 2.27 | 189.96 | 0.2174 | -1013.0 | -988.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -20.10 | 320.72 | 2.19 | 189.11 | 0.2274 | -740.0 | -710.8 | |
| 0.00 | 2.95 | 0.00 | 1.50 | -19.68 | 320.69 | 2.15 | 189.28 | 0.2201 | -872.0 | -874.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -20.56 | 320.60 | 2.07 | 188.30 | 0.2348 | -852.0 | -674.0 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -19.71 | 320.40 | 1.87 | 188.05 | 0.2199 | -1110.0 | -953.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -19.95 | 320.40 | 1.87 | 187.90 | 0.2241 | -791.0 | -686.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -20.44 | 320.31 | 1.78 | 187.23 | 0.2321 | -824.0 | -623.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -18.28 | 320.17 | 1.63 | 188.00 | 0.1951 | -1059.0 | -861.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -20.41 | 320.03 | 1.49 | 186.09 | 0.2311 | -742.0 | -523.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -19.56 | 319.93 | 1.39 | 186.09 | 0.2163 | -919.0 | -770.5 | |
| 0.00 | 3.39 | 0.00 | 1.73 | -20.60 | 319.58 | 1.05 | 184.22 | 0.2335 | -752.0 | -676.2 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -19.13 | 319.58 | 1.04 | 184.74 | 0.2085 | -401.0 | -344.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -20.07 | 319.55 | 1.01 | 184.26 | 0.2246 | -832.0 | -625.3 | |
| 1.39 | 168.72 | 0.70 | 85.28 | -18.67 | 319.51 | 0.97 | 184.63 | 0.2006 | -971.8 | -529.4 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -20.04 | 319.39 | 0.85 | 183.60 | 0.2239 | -873.0 | -658.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.07 | 319.23 | 0.70 | 182.93 | 0.2243 | -834.0 | -669.3 | |
| 22.41 | -62.00 | 11.34 | -62.00 | -18.89 | 319.13 | 0.60 | 182.79 | 0.2039 | -1300.8 | 999999 | |
| 22.68 | 64.12 | 11.57 | 32.73 | -20.99 | 319.07 | 0.54 | 182.11 | 0.2398 | -1123.2 | -345.3 | |
| 2.26 | -62.00 | 1.14 | -62.00 | -19.10 | 319.07 | 0.53 | 182.45 | 0.2075 | -1083.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -17.67 | 319.04 | 0.50 | 182.62 | 0.1829 | -783.0 | -500.1 | |
| 8.60 | -62.00 | 4.35 | -62.00 | -18.55 | 318.97 | 0.44 | 182.11 | 0.1980 | -1372.7 | 999999 | |
| 3.21 | -62.00 | 1.63 | -62.00 | -19.31 | 318.88 | 0.35 | 181.55 | 0.2110 | -1080.1 | 999999 | |
| 3.39 | 29.80 | 1.72 | 15.16 | -20.23 | 318.34 | -0.19 | 179.20 | 0.2266 | -1186.7 | -594.4 | |
| 0.00 | 3.82 | 0.00 | 1.92 | -16.70 | 318.35 | -0.18 | 178.93 | 0.1660 | -686.0 | -707.4 | |
| 2.95 | -71.00 | 1.50 | -71.00 | -20.59 | 318.12 | -0.42 | 178.32 | 0.2330 | -691.8 | 999999 | |
| 1.91 | -71.00 | 0.97 | -71.00 | -20.07 | 318.06 | -0.48 | 177.99 | 0.2241 | -1053.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -22.68 | 315.95 | -2.59 | 171.13 | 0.2716 | -784.0 | -630.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.21 | 315.82 | -2.72 | 167.88 | 0.2141 | -845.0 | -669.1 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -21.43 | 314.14 | -4.39 | 163.85 | 0.2576 | -777.0 | -580.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
