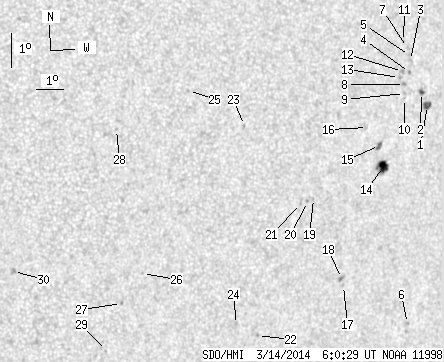

SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.26 | 59.95 | 9.54 | 39.13 | -9.75 | 358.81 | 40.82 | 263.14 | 0.6511 | 423.6 | 363.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.65 | 5.82 | 2.49 | 3.96 | -7.79 | 1.72 | 43.73 | 266.25 | 0.6887 | 714.2 | 506.3 | |
| 1.22 | 2.52 | 0.82 | 1.71 | -7.43 | 1.42 | 43.43 | 266.80 | 0.6851 | 687.3 | 558.7 | |
| 0.00 | 2.17 | 0.00 | 1.46 | -6.52 | 0.86 | 42.87 | 268.18 | 0.6787 | 550.0 | 386.2 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -6.88 | 0.86 | 42.87 | 267.65 | 0.6784 | 511.0 | 515.8 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -6.37 | 0.81 | 42.82 | 268.40 | 0.6781 | 620.0 | 504.2 | |
| 0.00 | 1.48 | 0.00 | 1.01 | -14.33 | 2.09 | 44.10 | 256.78 | 0.6950 | 546.0 | 392.6 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -6.14 | 0.70 | 42.71 | 268.75 | 0.6769 | 529.0 | 391.2 | |
| 0.00 | 1.30 | 0.00 | 0.87 | -7.25 | 0.70 | 42.71 | 267.11 | 0.6760 | 804.0 | 726.3 | |
| 0.00 | 1.30 | 0.00 | 0.87 | -7.52 | 0.73 | 42.74 | 266.71 | 0.6763 | 670.0 | 587.5 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -7.66 | 0.75 | 42.76 | 266.49 | 0.6764 | 639.0 | 590.0 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -5.98 | 0.52 | 42.53 | 269.01 | 0.6748 | 589.0 | 516.6 | |
| 0.00 | 2.00 | 0.00 | 1.34 | -6.87 | 0.57 | 42.58 | 267.68 | 0.6747 | 783.0 | 670.0 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -7.06 | 0.47 | 42.48 | 267.41 | 0.6733 | 792.0 | 739.9 | |
| 7.91 | 13.81 | 5.25 | 9.17 | -9.75 | 0.17 | 42.19 | 263.39 | 0.6686 | 779.0 | 564.8 | |
| 1.48 | 3.74 | 0.98 | 2.47 | -9.14 | 359.92 | 41.93 | 264.31 | 0.6654 | 784.9 | 593.3 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -8.65 | 359.37 | 41.38 | 265.07 | 0.6583 | 654.0 | 628.1 | |
| 0.00 | 1.30 | 0.00 | 0.85 | -13.41 | 359.20 | 41.21 | 257.80 | 0.6580 | 532.0 | 433.2 | |
| 0.00 | 2.69 | 0.00 | 1.76 | -13.21 | 359.08 | 41.09 | 258.09 | 0.6563 | 815.0 | 637.0 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -10.92 | 357.54 | 39.56 | 261.52 | 0.6345 | 595.0 | 457.5 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -11.03 | 357.32 | 39.34 | 261.33 | 0.6316 | 633.0 | 488.9 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -11.11 | 357.06 | 39.07 | 261.19 | 0.6282 | 716.0 | 625.8 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -15.16 | 356.12 | 38.14 | 254.57 | 0.6206 | 747.0 | 620.8 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -8.95 | 354.62 | 36.63 | 264.65 | 0.5941 | -598.0 | -462.3 | |
| 0.00 | 2.00 | 0.00 | 1.24 | -14.90 | 355.25 | 37.26 | 254.81 | 0.6085 | 769.0 | 551.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -8.06 | 352.44 | 34.45 | 266.22 | 0.5635 | -582.0 | -488.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.62 | 351.46 | 33.48 | 256.15 | 0.5543 | -579.0 | -474.3 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -14.56 | 350.85 | 32.86 | 254.28 | 0.5477 | -658.0 | -601.1 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -9.39 | 349.97 | 31.98 | 263.75 | 0.5278 | -730.0 | -584.9 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -16.01 | 350.55 | 32.56 | 251.59 | 0.5473 | -666.0 | -592.3 | |
| 0.00 | 2.69 | 0.00 | 1.53 | -13.84 | 346.86 | 28.87 | 254.39 | 0.4888 | -827.0 | -648.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
