SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 62.66 | 0.00 | 32.72 | -10.07 | 300.49 | -17.50 | 100.72 | 0.3085 | 226.6 | 199.6 | |
|
previous
or next observation for the same group /

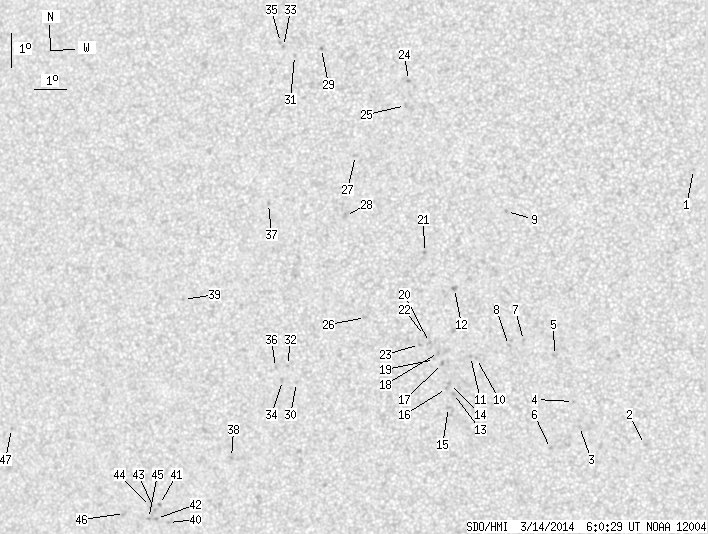

back to the solar disc SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.56 | -5.68 | 310.83 | -7.16 | 78.49 | 0.1272 | 841.0 | 581.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -13.86 | 309.12 | -8.87 | 128.18 | 0.1913 | 621.0 | 472.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.28 | 307.12 | -10.87 | 120.55 | 0.2141 | 908.0 | 676.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.53 | 306.97 | -11.02 | 117.05 | 0.2105 | 814.0 | 634.1 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -11.14 | 306.44 | -11.55 | 109.96 | 0.2100 | 770.0 | 641.3 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -13.92 | 306.18 | -11.81 | 121.08 | 0.2330 | 941.0 | 667.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -10.66 | 305.50 | -12.49 | 106.64 | 0.2229 | 819.0 | 670.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -10.80 | 305.02 | -12.97 | 106.71 | 0.2312 | 875.0 | 638.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -6.81 | 305.11 | -12.88 | 89.08 | 0.2224 | 910.0 | 767.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -11.16 | 304.01 | -13.98 | 107.09 | 0.2491 | 991.0 | 784.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -11.09 | 303.82 | -14.17 | 106.65 | 0.2518 | 967.0 | 723.9 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -9.05 | 303.42 | -14.57 | 98.35 | 0.2523 | 975.0 | 843.3 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -12.18 | 303.23 | -14.76 | 110.09 | 0.2664 | 792.0 | 633.5 | |
| 0.00 | 1.74 | 0.00 | 0.89 | -11.88 | 303.12 | -14.87 | 108.88 | 0.2666 | 868.0 | 632.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -12.59 | 303.05 | -14.94 | 111.35 | 0.2714 | 825.0 | 658.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -12.02 | 303.02 | -14.97 | 109.30 | 0.2689 | 687.0 | 541.1 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -11.27 | 302.93 | -15.06 | 106.50 | 0.2669 | 945.0 | 819.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -10.94 | 302.83 | -15.16 | 105.19 | 0.2673 | 869.0 | 748.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -11.15 | 302.69 | -15.30 | 105.82 | 0.2703 | 651.0 | 497.4 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -10.63 | 302.56 | -15.43 | 103.86 | 0.2706 | 804.0 | 608.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -7.95 | 302.53 | -15.46 | 93.84 | 0.2658 | 1007.0 | 800.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.42 | 302.41 | -15.58 | 102.98 | 0.2722 | 623.0 | 504.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.68 | 302.24 | -15.75 | 103.81 | 0.2759 | 632.0 | 539.1 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -2.80 | 302.17 | -15.82 | 75.24 | 0.2828 | 958.0 | 842.9 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -3.55 | 302.07 | -15.92 | 77.89 | 0.2813 | 802.0 | 578.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -9.82 | 300.58 | -17.41 | 99.91 | 0.3006 | -819.0 | -587.5 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -4.98 | 300.47 | -17.52 | 83.76 | 0.3030 | 720.0 | 592.3 | |
| 0.00 | 3.48 | 0.00 | 1.81 | -6.75 | 300.10 | -17.89 | 89.71 | 0.3065 | 608.0 | 494.3 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -1.74 | 299.47 | -18.52 | 74.43 | 0.3311 | -983.0 | -769.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -11.67 | 298.25 | -19.74 | 104.46 | 0.3430 | -836.0 | -605.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -1.91 | 298.61 | -19.37 | 75.65 | 0.3437 | 717.0 | 497.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -11.15 | 298.00 | -19.99 | 102.84 | 0.3455 | -797.0 | -598.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -1.63 | 298.27 | -19.72 | 75.14 | 0.3505 | 984.0 | 751.6 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -11.59 | 297.80 | -20.18 | 103.99 | 0.3499 | -768.0 | -627.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -1.51 | 298.18 | -19.81 | 74.87 | 0.3525 | 728.0 | 601.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -11.19 | 297.61 | -20.38 | 102.77 | 0.3519 | -698.0 | -563.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -6.29 | 297.67 | -20.32 | 88.70 | 0.3468 | -848.0 | -670.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.81 | 295.94 | -22.05 | 108.82 | 0.3869 | -937.0 | -811.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -9.02 | 294.76 | -23.23 | 96.16 | 0.3934 | -740.0 | -610.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -15.66 | 293.61 | -24.38 | 111.68 | 0.4295 | -886.0 | -663.5 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -15.10 | 293.37 | -24.61 | 110.29 | 0.4306 | -838.0 | -649.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -15.52 | 293.22 | -24.77 | 111.12 | 0.4346 | -919.0 | -726.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.24 | 293.19 | -24.80 | 110.49 | 0.4339 | -970.0 | -851.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -15.15 | 293.06 | -24.93 | 110.20 | 0.4353 | -791.0 | -697.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.50 | 292.95 | -25.04 | 110.92 | 0.4385 | -728.0 | -617.8 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -15.31 | 292.15 | -25.84 | 110.04 | 0.4493 | -704.0 | -497.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -12.54 | 288.59 | -29.40 | 102.82 | 0.4934 | -739.0 | -588.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
