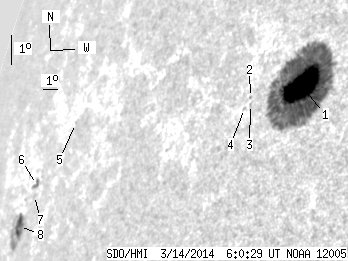

SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.41 | 392.82 | 87.97 | 404.08 | 11.85 | 259.84 | -58.15 | 71.86 | 0.8697 | -541.9 | -199.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.86 | 353.80 | 61.12 | 328.80 | 12.21 | 263.27 | -54.72 | 70.63 | 0.8478 | -984.3 | -227.5 | |
| 0.00 | 0.70 | 0.00 | 0.70 | 12.14 | 260.48 | -57.51 | 71.60 | 0.8710 | -204.0 | -193.2 | |
| 0.00 | 1.04 | 0.00 | 1.04 | 11.91 | 260.56 | -57.43 | 71.83 | 0.8699 | -367.0 | -325.2 | |
| 0.00 | 1.04 | 0.00 | 1.05 | 11.82 | 260.24 | -57.74 | 72.02 | 0.8722 | -192.0 | -165.0 | |
| 0.00 | 0.70 | 0.00 | 1.14 | 12.78 | 247.95 | -70.04 | 74.10 | 0.9545 | 308.0 | 274.9 | |
| 1.82 | 3.65 | 3.44 | 6.90 | 11.23 | 245.14 | -72.84 | 76.25 | 0.9661 | 439.2 | 378.4 | |
| 0.00 | 0.96 | 0.00 | 1.80 | 10.88 | 245.15 | -72.84 | 76.60 | 0.9657 | 282.0 | 257.8 | |
| 11.73 | 30.93 | 23.41 | 62.65 | 10.06 | 244.05 | -73.94 | 77.63 | 0.9698 | 360.9 | -89.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
