SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.19 | 80.56 | 33.92 | 69.30 | 11.29 | 9.93 | 51.94 | 289.27 | 0.8200 | -115.3 | -140.6 | |
|
previous
or next observation for the same group /

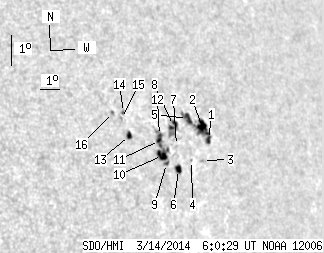

back to the solar disc SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.69 | 30.24 | 2.41 | 26.86 | 11.38 | 11.53 | 53.54 | 288.81 | 0.8351 | -394.2 | -432.9 | |
| 11.99 | -1.00 | 10.70 | -1.00 | 11.73 | 11.32 | 53.33 | 289.29 | 0.8342 | -535.8 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.30 | 10.67 | 11.03 | 53.04 | 288.16 | 0.8286 | -253.0 | -178.6 | |
| 0.00 | 0.70 | 0.00 | 0.60 | 10.61 | 10.46 | 52.47 | 288.29 | 0.8232 | 208.0 | 237.0 | |
| 4.34 | -1.00 | 3.82 | -1.00 | 11.94 | 10.61 | 52.62 | 289.78 | 0.8284 | -641.5 | 999999 | |
| 3.56 | 5.30 | 3.03 | 4.51 | 10.26 | 9.73 | 51.74 | 288.13 | 0.8153 | 431.1 | 280.9 | |
| 0.00 | 1.04 | 0.00 | 0.89 | 11.01 | 9.82 | 51.83 | 288.98 | 0.8183 | -355.0 | -350.3 | |
| 4.00 | 11.12 | 3.44 | 9.56 | 11.64 | 9.83 | 51.84 | 289.71 | 0.8203 | -698.0 | -579.8 | |
| 0.70 | 2.09 | 0.58 | 1.75 | 10.39 | 9.18 | 51.19 | 288.48 | 0.8103 | 622.5 | 502.5 | |
| 6.26 | 20.51 | 5.25 | 17.25 | 10.63 | 9.04 | 51.05 | 288.80 | 0.8097 | 743.1 | 52.9 | |
| 2.09 | -10.00 | 1.76 | -10.00 | 11.09 | 9.00 | 51.01 | 289.36 | 0.8107 | 16.2 | 999999 | |
| 1.13 | -10.00 | 0.95 | -10.00 | 11.25 | 9.04 | 51.05 | 289.54 | 0.8116 | -779.8 | 999999 | |
| 2.43 | 3.82 | 1.98 | 3.12 | 11.10 | 7.57 | 49.58 | 289.92 | 0.7969 | 551.0 | 396.6 | |
| 0.00 | 1.48 | 0.00 | 1.21 | 11.81 | 7.46 | 49.47 | 290.80 | 0.7981 | 324.0 | 272.1 | |
| 0.00 | 1.22 | 0.00 | 0.99 | 11.61 | 7.32 | 49.33 | 290.62 | 0.7960 | 517.0 | 465.5 | |
| 0.00 | 1.56 | 0.00 | 1.26 | 11.76 | 6.93 | 48.94 | 290.95 | 0.7928 | 544.0 | 426.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
