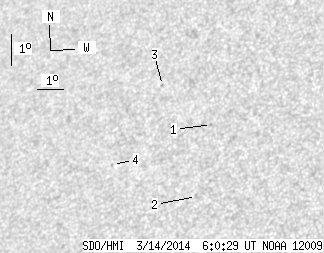

SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.77 | 0.00 | 3.08 | 11.25 | 282.35 | -35.64 | 62.82 | 0.6446 | 333.0 | 307.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.72 | 12.07 | 283.60 | -34.39 | 60.81 | 0.6349 | -468.0 | -448.8 | |
| 0.00 | 1.82 | 0.00 | 1.15 | 9.84 | 283.35 | -34.64 | 64.18 | 0.6245 | 762.0 | 609.2 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 13.46 | 281.54 | -36.45 | 60.35 | 0.6672 | 526.0 | 485.8 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 11.10 | 280.01 | -37.98 | 64.52 | 0.6713 | 512.0 | 459.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
