SDO HMI 2014-03-14 08:11:44 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201.60 | 899.01 | 103.09 | 460.04 | -18.57 | 324.63 | 7.84 | 211.12 | 0.2499 | -53.1 | 28.8 | |
|
previous
or next observation for the same group /

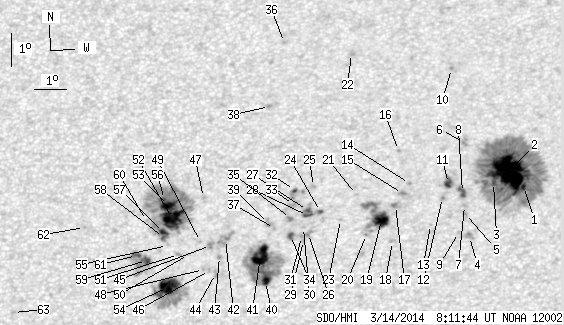

back to the solar disc SDO HMI 2014-03-14 08:11:44 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 348.79 | 1.17 | 180.00 | -17.76 | 330.27 | 13.47 | 229.90 | 0.2914 | 859.0 | 429.4 | |
| 62.13 | -1.00 | 32.05 | -1.00 | -17.32 | 329.75 | 12.96 | 230.10 | 0.2804 | 1364.8 | 999999 | |
| 2.26 | -1.00 | 1.16 | -1.00 | -17.66 | 329.30 | 12.50 | 228.16 | 0.2782 | 898.5 | 999999 | |
| 0.00 | 4.78 | 0.00 | 2.47 | -19.32 | 328.64 | 11.85 | 222.32 | 0.2891 | 512.0 | 445.0 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -18.62 | 328.47 | 11.67 | 223.67 | 0.2789 | 841.0 | 660.9 | |
| 0.00 | 3.65 | 0.00 | 1.87 | -16.47 | 328.30 | 11.50 | 229.40 | 0.2530 | 928.0 | 822.2 | |
| 0.00 | 2.26 | 0.00 | 1.16 | -18.38 | 328.42 | 11.62 | 224.19 | 0.2755 | 764.0 | 583.9 | |
| 3.39 | 6.69 | 1.74 | 3.44 | -17.99 | 328.33 | 11.53 | 225.04 | 0.2700 | 1036.1 | 808.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -19.21 | 328.28 | 11.49 | 221.75 | 0.2837 | 334.0 | 226.8 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -14.26 | 327.77 | 10.97 | 235.80 | 0.2241 | 861.0 | 749.7 | |
| 4.34 | 6.86 | 2.23 | 3.52 | -17.72 | 327.86 | 11.07 | 224.64 | 0.2615 | 1159.0 | 851.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.15 | 327.70 | 10.90 | 223.04 | 0.2646 | 863.0 | 748.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -18.98 | 327.37 | 10.57 | 220.03 | 0.2710 | -482.0 | -388.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -17.75 | 326.62 | 9.83 | 221.28 | 0.2476 | 1126.0 | 916.0 | |
| 0.00 | 3.04 | 0.00 | 1.56 | -18.06 | 326.42 | 9.62 | 219.86 | 0.2492 | 1012.0 | 781.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -16.76 | 326.22 | 9.43 | 223.04 | 0.2309 | 696.0 | 528.0 | |
| 0.00 | 4.95 | 0.00 | 2.53 | -18.43 | 326.22 | 9.42 | 218.30 | 0.2517 | 1020.0 | 854.9 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -19.52 | 326.18 | 9.39 | 215.52 | 0.2658 | 724.0 | 608.8 | |
| 15.47 | 42.93 | 7.92 | 21.96 | -18.86 | 325.79 | 9.00 | 215.98 | 0.2531 | 1041.6 | 638.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -19.32 | 325.34 | 8.54 | 213.52 | 0.2551 | 685.0 | 543.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -18.11 | 324.96 | 8.17 | 215.28 | 0.2349 | 735.0 | 611.8 | |
| 0.00 | 3.13 | 0.00 | 1.57 | -13.86 | 324.64 | 7.84 | 228.43 | 0.1779 | 685.0 | 605.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -18.88 | 324.49 | 7.69 | 211.86 | 0.2411 | -336.0 | -268.1 | |
| 0.96 | 13.90 | 0.49 | 7.07 | -18.65 | 323.84 | 7.05 | 210.21 | 0.2321 | -746.5 | -555.3 | |
| 0.00 | 2.52 | 0.00 | 1.28 | -17.89 | 323.59 | 6.80 | 211.11 | 0.2191 | -881.0 | -763.1 | |
| 0.00 | 4.00 | 0.00 | 2.04 | -19.32 | 323.49 | 6.70 | 207.53 | 0.2392 | -744.0 | -593.7 | |
| 1.30 | -24.00 | 0.66 | -24.00 | -18.62 | 323.43 | 6.64 | 208.81 | 0.2283 | -959.0 | 999999 | |
| 2.26 | -24.00 | 1.15 | -24.00 | -18.77 | 323.44 | 6.64 | 208.50 | 0.2306 | -1006.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -19.54 | 323.34 | 6.55 | 206.58 | 0.2412 | -541.0 | -444.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -19.14 | 323.32 | 6.53 | 207.32 | 0.2352 | -806.0 | -654.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.42 | 323.27 | 6.48 | 206.58 | 0.2389 | -887.0 | -789.8 | |
| 1.22 | 8.08 | 0.62 | 4.10 | -18.02 | 323.00 | 6.20 | 208.57 | 0.2159 | 609.2 | -180.3 | |
| 0.00 | 4.69 | 0.00 | 2.38 | -18.44 | 322.98 | 6.19 | 207.55 | 0.2221 | -945.0 | -733.5 | |
| 1.91 | 3.56 | 0.97 | 1.82 | -19.39 | 322.92 | 6.13 | 205.39 | 0.2359 | -973.0 | -791.2 | |
| 0.00 | 2.95 | 0.00 | 1.50 | -18.87 | 322.90 | 6.11 | 206.35 | 0.2279 | -1028.0 | -791.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.56 | 322.56 | 5.77 | 221.15 | 0.1491 | 888.0 | 735.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.18 | 322.41 | 5.61 | 203.89 | 0.2291 | -763.0 | -691.3 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -15.49 | 322.14 | 5.35 | 211.77 | 0.1714 | 927.0 | 780.7 | |
| 0.00 | 4.00 | 0.00 | 2.03 | -19.03 | 322.21 | 5.42 | 203.43 | 0.2254 | -943.0 | -796.6 | |
| 5.30 | 104.79 | 2.71 | 53.51 | -20.80 | 322.17 | 5.38 | 200.37 | 0.2530 | 1050.0 | -217.6 | |
| 21.20 | -40.00 | 10.81 | -40.00 | -20.01 | 321.99 | 5.19 | 200.92 | 0.2393 | -1263.0 | 999999 | |
| 0.00 | 11.82 | 0.00 | 6.01 | -19.53 | 320.86 | 4.07 | 197.34 | 0.2254 | -904.0 | -794.9 | |
| 0.00 | 1.74 | 0.00 | 0.89 | -20.05 | 320.68 | 3.89 | 195.95 | 0.2330 | -795.0 | -735.0 | |
| 0.00 | 3.13 | 0.00 | 1.60 | -20.57 | 320.57 | 3.78 | 194.89 | 0.2410 | -706.0 | -634.7 | |
| 0.00 | 4.17 | 0.00 | 2.12 | -19.72 | 320.39 | 3.60 | 195.21 | 0.2262 | -1066.0 | -918.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -20.48 | 320.38 | 3.58 | 194.26 | 0.2387 | -618.0 | -530.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -18.26 | 320.14 | 3.35 | 196.08 | 0.2011 | -891.0 | -719.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -20.45 | 320.18 | 3.39 | 193.56 | 0.2375 | -621.0 | -519.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.60 | 320.07 | 3.28 | 194.05 | 0.2229 | -915.0 | -750.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -20.00 | 319.70 | 2.90 | 192.11 | 0.2281 | -679.0 | -595.5 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -20.00 | 319.38 | 2.59 | 190.82 | 0.2270 | -883.0 | -696.2 | |
| 27.37 | 173.27 | 13.86 | 87.64 | -18.90 | 319.17 | 2.38 | 190.95 | 0.2080 | -1226.5 | -476.7 | |
| 11.56 | -52.00 | 5.84 | -52.00 | -18.50 | 319.04 | 2.25 | 190.73 | 0.2009 | -1300.3 | 999999 | |
| 27.11 | 69.78 | 13.84 | 35.65 | -21.01 | 319.04 | 2.25 | 188.72 | 0.2430 | -1088.0 | -276.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -19.72 | 319.03 | 2.23 | 189.59 | 0.2214 | -521.0 | -442.0 | |
| 0.87 | -52.00 | 0.44 | -52.00 | -18.32 | 318.92 | 2.12 | 190.31 | 0.1974 | -1044.6 | 999999 | |
| 3.91 | -52.00 | 1.98 | -52.00 | -19.33 | 318.90 | 2.10 | 189.34 | 0.2143 | -1037.6 | 999999 | |
| 1.22 | -52.00 | 0.62 | -52.00 | -19.48 | 318.90 | 2.10 | 189.23 | 0.2169 | -899.8 | 999999 | |
| 3.30 | 23.64 | 1.68 | 12.02 | -20.18 | 318.37 | 1.57 | 186.53 | 0.2276 | -1146.5 | -730.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.96 | 318.36 | 1.56 | 187.20 | 0.2068 | -151.0 | -138.9 | |
| 2.26 | -59.00 | 1.15 | -59.00 | -20.03 | 318.05 | 1.25 | 185.28 | 0.2244 | -1028.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -19.18 | 316.40 | -0.39 | 178.22 | 0.2089 | -777.0 | -642.2 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -21.77 | 314.11 | -2.68 | 170.22 | 0.2569 | -801.0 | -637.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
