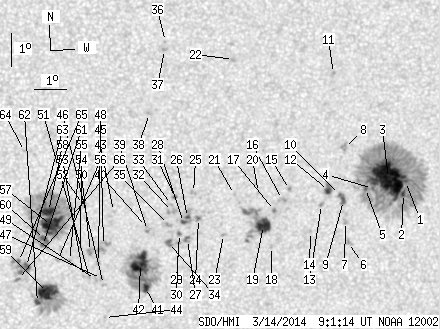

SDO HMI 2014-03-14 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.47 | 892.21 | 97.57 | 457.15 | -18.51 | 324.84 | 8.50 | 213.27 | 0.2549 | -6.6 | 21.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.74 | 367.54 | 0.90 | 190.03 | -17.40 | 330.32 | 13.98 | 231.85 | 0.2944 | 825.3 | 391.4 | |
| 2.17 | -1.00 | 1.13 | -1.00 | -17.77 | 330.28 | 13.94 | 230.77 | 0.2975 | 879.8 | 999999 | |
| 65.86 | -1.00 | 34.04 | -1.00 | -17.33 | 329.77 | 13.43 | 231.00 | 0.2865 | 1339.8 | 999999 | |
| 0.70 | -1.00 | 0.36 | -1.00 | -17.64 | 329.28 | 12.94 | 229.12 | 0.2834 | 978.0 | 999999 | |
| 1.13 | -1.00 | 0.58 | -1.00 | -17.65 | 329.05 | 12.71 | 228.63 | 0.2807 | 977.9 | 999999 | |
| 0.00 | 4.17 | 0.00 | 2.16 | -19.30 | 328.63 | 12.29 | 223.35 | 0.2939 | 737.0 | 491.2 | |
| 0.00 | 2.43 | 0.00 | 1.26 | -18.67 | 328.48 | 12.14 | 224.63 | 0.2849 | 895.0 | 711.9 | |
| 0.00 | 4.08 | 0.00 | 2.09 | -16.43 | 328.30 | 11.96 | 230.59 | 0.2585 | 785.0 | 870.3 | |
| 2.09 | 7.21 | 1.07 | 3.71 | -18.03 | 328.38 | 12.03 | 226.08 | 0.2765 | 993.9 | 832.8 | |
| 0.43 | -9.00 | 0.22 | -9.00 | -17.85 | 328.24 | 11.89 | 226.25 | 0.2728 | 1112.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -14.21 | 327.83 | 11.49 | 237.12 | 0.2310 | 1040.0 | 799.1 | |
| 3.13 | 6.69 | 1.61 | 3.44 | -17.74 | 327.88 | 11.53 | 225.72 | 0.2672 | 1229.0 | 926.4 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -18.17 | 327.68 | 11.34 | 224.07 | 0.2698 | 971.0 | 814.4 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -19.00 | 327.38 | 11.04 | 221.17 | 0.2763 | -628.0 | -421.5 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -17.73 | 326.63 | 10.29 | 222.58 | 0.2526 | 1185.0 | 900.3 | |
| 0.00 | 3.65 | 0.00 | 1.87 | -18.04 | 326.43 | 10.09 | 221.18 | 0.2540 | 904.0 | 802.4 | |
| 0.00 | 1.74 | 0.00 | 0.89 | -18.38 | 326.19 | 9.85 | 219.63 | 0.2557 | 1213.0 | 1010.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -19.48 | 326.16 | 9.82 | 216.81 | 0.2695 | 830.0 | 629.3 | |
| 14.25 | 43.36 | 7.30 | 22.20 | -18.84 | 325.87 | 9.53 | 217.53 | 0.2582 | 1097.8 | 671.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -17.84 | 325.65 | 9.31 | 219.52 | 0.2431 | 869.0 | 686.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -17.92 | 324.90 | 8.56 | 217.02 | 0.2362 | 950.0 | 728.1 | |
| 0.00 | 2.61 | 0.00 | 1.31 | -13.85 | 324.70 | 8.36 | 230.22 | 0.1845 | 913.0 | 730.2 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -19.14 | 324.61 | 8.26 | 213.08 | 0.2500 | 838.0 | 639.5 | |
| 0.52 | 3.30 | 0.27 | 1.68 | -18.66 | 323.79 | 7.45 | 211.53 | 0.2359 | -873.3 | -660.2 | |
| 0.00 | 2.61 | 0.00 | 1.32 | -17.88 | 323.60 | 7.26 | 212.79 | 0.2230 | -961.0 | -794.8 | |
| 1.30 | 10.86 | 0.66 | 5.53 | -18.64 | 323.44 | 7.10 | 210.39 | 0.2325 | -966.9 | -422.3 | |
| 0.00 | 4.00 | 0.00 | 2.04 | -19.31 | 323.47 | 7.13 | 209.01 | 0.2425 | -734.0 | -713.2 | |
| 1.39 | -26.00 | 0.71 | -26.00 | -18.79 | 323.32 | 6.98 | 209.62 | 0.2337 | -1085.4 | 999999 | |
| 0.61 | 2.09 | 0.31 | 1.06 | -19.13 | 323.21 | 6.86 | 208.50 | 0.2377 | -1041.1 | -848.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -19.40 | 323.19 | 6.84 | 207.86 | 0.2416 | -969.0 | -742.5 | |
| 0.61 | 1.65 | 0.31 | 0.84 | -18.04 | 323.04 | 6.69 | 210.36 | 0.2203 | 825.7 | 643.4 | |
| 0.00 | 4.26 | 0.00 | 2.16 | -18.46 | 322.96 | 6.62 | 209.08 | 0.2259 | -932.0 | -828.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.25 | 322.92 | 6.58 | 209.42 | 0.2224 | -943.0 | -696.8 | |
| 1.48 | 4.43 | 0.75 | 2.26 | -19.41 | 322.87 | 6.53 | 206.75 | 0.2392 | -1012.4 | -810.7 | |
| 0.00 | 3.04 | 0.00 | 1.55 | -18.86 | 322.85 | 6.50 | 207.81 | 0.2309 | -965.0 | -797.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.34 | 322.58 | 6.24 | 224.37 | 0.1519 | 829.0 | 663.5 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -13.58 | 322.56 | 6.21 | 223.15 | 0.1546 | 1010.0 | 788.7 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -15.51 | 322.14 | 5.80 | 213.79 | 0.1759 | 917.0 | 770.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -19.05 | 322.19 | 5.85 | 205.01 | 0.2288 | -1065.0 | -900.4 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -18.93 | 322.15 | 5.81 | 205.11 | 0.2267 | -887.0 | -709.1 | |
| 4.34 | 100.62 | 2.23 | 51.42 | -20.79 | 322.19 | 5.84 | 201.97 | 0.2557 | 1052.2 | -200.2 | |
| 22.76 | -41.00 | 11.62 | -41.00 | -20.06 | 322.00 | 5.66 | 202.50 | 0.2431 | -1235.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -18.48 | 321.10 | 4.75 | 201.80 | 0.2126 | -703.0 | -599.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -21.73 | 320.90 | 4.56 | 196.36 | 0.2634 | 798.0 | 563.6 | |
| 0.00 | 8.52 | 0.00 | 4.33 | -19.52 | 320.81 | 4.47 | 198.91 | 0.2274 | -421.0 | -853.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -20.71 | 320.84 | 4.50 | 197.37 | 0.2468 | -684.0 | -513.5 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -20.53 | 320.77 | 4.43 | 197.36 | 0.2435 | -741.0 | -634.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -20.04 | 320.66 | 4.32 | 197.61 | 0.2350 | -845.0 | -727.8 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -20.56 | 320.58 | 4.24 | 196.62 | 0.2430 | -861.0 | -709.3 | |
| 0.00 | 4.43 | 0.00 | 2.25 | -19.71 | 320.40 | 4.06 | 197.05 | 0.2283 | -1116.0 | -938.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -20.50 | 320.39 | 4.05 | 195.98 | 0.2412 | -757.0 | -629.1 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -18.28 | 320.15 | 3.80 | 198.10 | 0.2038 | -1004.0 | -660.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -20.47 | 320.20 | 3.85 | 195.29 | 0.2398 | -787.0 | -685.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.62 | 320.08 | 3.74 | 195.89 | 0.2253 | -1007.0 | -811.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -19.99 | 319.74 | 3.40 | 194.09 | 0.2299 | -821.0 | -654.5 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -19.99 | 319.36 | 3.02 | 192.56 | 0.2284 | -801.0 | -604.9 | |
| 24.94 | 175.34 | 12.63 | 88.73 | -18.92 | 319.15 | 2.81 | 192.82 | 0.2099 | -1246.5 | -489.9 | |
| 9.82 | -57.00 | 4.97 | -57.00 | -18.50 | 319.05 | 2.71 | 192.85 | 0.2024 | -1340.5 | 999999 | |
| 20.85 | 62.47 | 10.65 | 31.93 | -20.97 | 319.06 | 2.71 | 190.50 | 0.2437 | -1182.4 | -360.9 | |
| 3.30 | -57.00 | 1.67 | -57.00 | -19.35 | 318.94 | 2.59 | 191.44 | 0.2163 | -1056.8 | 999999 | |
| 0.87 | -57.00 | 0.44 | -57.00 | -19.53 | 318.88 | 2.53 | 191.01 | 0.2191 | -845.1 | 999999 | |
| 2.35 | -59.00 | 1.20 | -59.00 | -21.28 | 318.74 | 2.40 | 189.09 | 0.2480 | -853.5 | 999999 | |
| 3.13 | 16.86 | 1.59 | 8.57 | -20.18 | 318.38 | 2.03 | 188.42 | 0.2285 | -1144.3 | -874.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -16.68 | 318.28 | 1.94 | 191.08 | 0.1691 | -741.0 | -655.2 | |
| 0.70 | -63.00 | 0.35 | -63.00 | -20.02 | 318.12 | 1.78 | 187.47 | 0.2253 | -1205.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -20.57 | 318.09 | 1.75 | 187.04 | 0.2346 | -905.0 | -717.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
