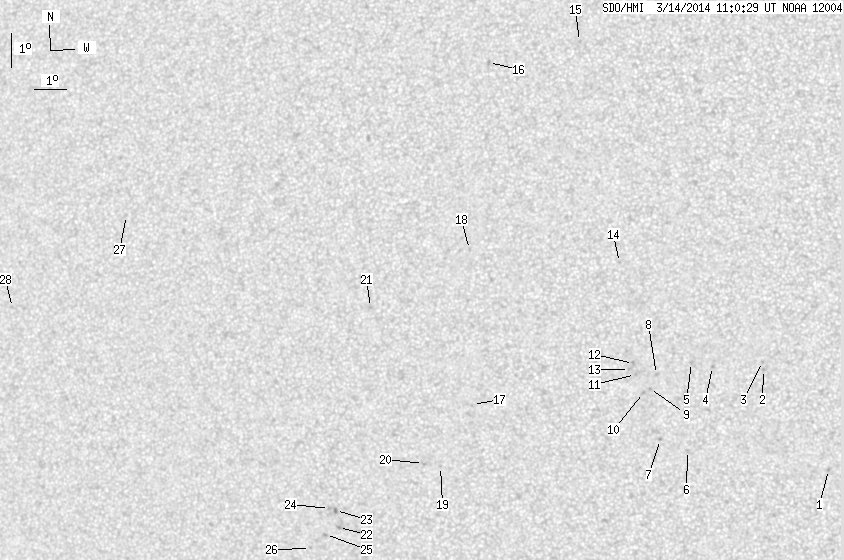

SDO HMI 2014-03-14 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.84 | 0.00 | 19.25 | -11.30 | 298.84 | -16.42 | 107.31 | 0.2950 | 204.2 | 135.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | -14.30 | 308.85 | -6.40 | 139.12 | 0.1659 | 981.0 | 739.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -11.27 | 306.94 | -8.31 | 117.18 | 0.1602 | 898.0 | 788.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.03 | 306.92 | -8.34 | 115.75 | 0.1588 | 943.0 | 795.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -11.15 | 305.38 | -9.88 | 112.94 | 0.1836 | 798.0 | 602.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -11.02 | 304.73 | -10.52 | 111.09 | 0.1930 | 862.0 | 678.4 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -13.65 | 304.50 | -10.76 | 122.35 | 0.2157 | 819.0 | 585.9 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -13.29 | 303.67 | -11.58 | 119.19 | 0.2249 | 923.0 | 696.4 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -11.35 | 303.64 | -11.62 | 110.89 | 0.2123 | 927.0 | 656.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -11.76 | 303.40 | -11.85 | 112.34 | 0.2184 | 932.0 | 771.2 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -11.88 | 303.21 | -12.05 | 112.53 | 0.2221 | 847.0 | 612.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -11.33 | 302.98 | -12.27 | 109.88 | 0.2226 | 865.0 | 702.8 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -11.00 | 302.94 | -12.32 | 108.39 | 0.2217 | 998.0 | 835.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -11.18 | 302.80 | -12.45 | 108.98 | 0.2247 | 710.0 | 624.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -7.98 | 302.62 | -12.64 | 94.51 | 0.2183 | 935.0 | 738.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -1.35 | 301.52 | -13.73 | 67.59 | 0.2579 | 887.0 | 652.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -1.88 | 298.71 | -16.55 | 73.00 | 0.2990 | 841.0 | 619.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -12.06 | 297.81 | -17.45 | 107.22 | 0.3083 | -534.0 | -526.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -7.44 | 297.97 | -17.29 | 91.99 | 0.2962 | -865.0 | -710.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -13.87 | 296.64 | -18.62 | 111.66 | 0.3349 | -885.0 | -628.6 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -13.76 | 296.10 | -19.16 | 110.87 | 0.3426 | -812.0 | -688.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -9.03 | 294.73 | -20.52 | 96.65 | 0.3501 | -883.0 | -791.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -15.56 | 293.12 | -22.14 | 113.09 | 0.3963 | -784.0 | -717.7 | |
| 0.00 | 2.26 | 0.00 | 1.22 | -15.04 | 293.07 | -22.18 | 111.81 | 0.3944 | -956.0 | -788.5 | |
| 0.00 | 1.74 | 0.00 | 0.94 | -14.98 | 292.88 | -22.37 | 111.50 | 0.3969 | -758.0 | -605.0 | |
| 0.00 | 1.56 | 0.00 | 0.85 | -15.75 | 292.66 | -22.60 | 113.19 | 0.4040 | -807.0 | -685.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -16.15 | 292.11 | -23.15 | 113.69 | 0.4141 | -612.0 | -489.1 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -5.87 | 286.85 | -28.40 | 89.07 | 0.4752 | -535.0 | -375.4 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -8.36 | 282.68 | -32.57 | 94.31 | 0.5363 | -16.0 | -60.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
