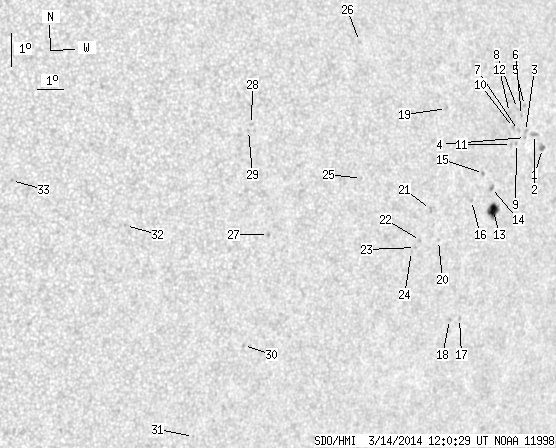

SDO HMI 2014-03-14 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.56 | 54.89 | 6.72 | 37.56 | -9.00 | 358.52 | 43.82 | 264.32 | 0.6884 | 349.8 | 329.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 3.30 | 0.88 | 2.39 | -7.73 | 2.00 | 47.29 | 266.11 | 0.7322 | 649.3 | 495.4 | |
| 0.00 | 3.47 | 0.00 | 2.50 | -7.35 | 1.59 | 46.88 | 266.66 | 0.7276 | 733.0 | 568.3 | |
| 0.00 | 1.65 | 0.00 | 1.18 | -7.29 | 1.19 | 46.48 | 266.76 | 0.7228 | 654.0 | 596.2 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -7.47 | 1.21 | 46.51 | 266.51 | 0.7230 | 624.0 | 541.2 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -6.53 | 1.05 | 46.34 | 267.84 | 0.7216 | 466.0 | 405.2 | |
| 0.00 | 1.13 | 0.00 | 0.80 | -6.83 | 0.95 | 46.25 | 267.42 | 0.7203 | 617.0 | 537.2 | |
| 0.00 | 1.65 | 0.00 | 1.17 | -7.29 | 0.88 | 46.17 | 266.79 | 0.7191 | 593.0 | 527.2 | |
| 0.00 | 1.48 | 0.00 | 1.05 | -6.64 | 0.76 | 46.05 | 267.70 | 0.7180 | 614.0 | 541.2 | |
| 0.00 | 1.39 | 0.00 | 0.99 | -7.68 | 0.85 | 46.14 | 266.24 | 0.7185 | 623.0 | 540.3 | |
| 0.00 | 1.13 | 0.00 | 0.80 | -7.22 | 0.65 | 45.95 | 266.90 | 0.7164 | 832.0 | 692.7 | |
| 0.00 | 1.39 | 0.00 | 0.98 | -7.73 | 0.64 | 45.93 | 266.19 | 0.7159 | 786.0 | 627.0 | |
| 0.00 | 1.39 | 0.00 | 0.98 | -6.79 | 0.43 | 45.72 | 267.52 | 0.7139 | 681.0 | 592.7 | |
| 8.34 | 12.07 | 5.84 | 8.46 | -9.75 | 0.17 | 45.47 | 263.36 | 0.7096 | 795.9 | 450.5 | |
| 0.00 | 2.26 | 0.00 | 1.58 | -9.08 | 359.97 | 45.27 | 264.32 | 0.7073 | 785.0 | 629.8 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -8.69 | 359.57 | 44.86 | 264.88 | 0.7025 | 791.0 | 624.0 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -9.54 | 359.19 | 44.48 | 263.68 | 0.6976 | 512.0 | 419.6 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -13.08 | 359.37 | 44.66 | 258.60 | 0.7008 | 425.0 | 454.3 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -13.14 | 358.96 | 44.25 | 258.48 | 0.6958 | 640.0 | 579.1 | |
| 0.00 | 1.48 | 0.00 | 1.00 | -6.90 | 357.78 | 43.08 | 267.58 | 0.6810 | 476.0 | 406.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -10.84 | 358.02 | 43.32 | 261.78 | 0.6831 | 510.0 | 468.3 | |
| 0.00 | 2.08 | 0.00 | 1.40 | -9.95 | 357.54 | 42.83 | 263.08 | 0.6769 | 558.0 | 536.9 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -10.90 | 357.28 | 42.58 | 261.66 | 0.6738 | 707.0 | 565.5 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -11.12 | 357.12 | 42.41 | 261.32 | 0.6718 | 658.0 | 571.0 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -11.26 | 356.98 | 42.27 | 261.12 | 0.6700 | 470.0 | 461.5 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -9.25 | 354.65 | 39.94 | 264.14 | 0.6393 | -544.0 | -472.8 | |
| 0.00 | 1.39 | 0.00 | 0.89 | -5.19 | 354.15 | 39.44 | 270.57 | 0.6350 | -553.0 | -452.0 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -11.18 | 351.32 | 36.61 | 260.86 | 0.5948 | -773.0 | -645.6 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -7.96 | 350.29 | 35.58 | 266.34 | 0.5797 | -687.0 | -595.3 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -8.14 | 350.20 | 35.49 | 266.02 | 0.5783 | -727.0 | -569.7 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -14.55 | 350.93 | 36.23 | 255.13 | 0.5941 | -705.0 | -614.4 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -17.41 | 349.60 | 34.90 | 249.95 | 0.5833 | -546.0 | -447.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -11.26 | 346.08 | 31.37 | 260.08 | 0.5204 | -713.0 | -575.5 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -10.16 | 341.99 | 27.28 | 261.70 | 0.4579 | -534.0 | -456.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
