SDO HMI 2014-03-14 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.64 | 319.15 | 80.99 | 303.92 | 5.57 | 11.14 | 57.53 | 280.99 | 0.8572 | 151.3 | 112.2 | |
|
previous
or next observation for the same group /

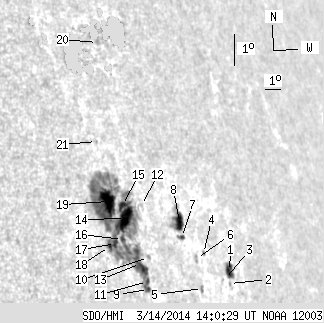

back to the solar disc SDO HMI 2014-03-14 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.03 | 10.86 | 8.00 | 12.35 | 4.87 | 16.78 | 63.17 | 278.97 | 0.9020 | -530.2 | -242.2 | |
| 0.00 | 0.61 | 0.00 | 0.69 | 4.50 | 16.72 | 63.11 | 278.58 | 0.9010 | -332.0 | -286.7 | |
| 0.00 | 0.43 | 0.00 | 0.49 | 4.58 | 16.40 | 62.79 | 278.73 | 0.8987 | -568.0 | -565.4 | |
| 0.00 | 1.74 | 0.00 | 1.87 | 5.23 | 15.15 | 61.54 | 279.70 | 0.8901 | -315.0 | -268.1 | |
| 0.00 | 2.69 | 0.00 | 2.86 | 4.15 | 14.92 | 61.31 | 278.55 | 0.8867 | -698.0 | -547.5 | |
| 0.00 | 2.61 | 0.00 | 2.76 | 5.03 | 14.67 | 61.07 | 279.58 | 0.8861 | -620.0 | -527.5 | |
| 1.39 | 3.04 | 1.44 | 3.15 | 5.58 | 13.84 | 60.23 | 280.37 | 0.8803 | -561.2 | -529.7 | |
| 9.81 | 21.19 | 10.18 | 21.91 | 6.06 | 13.81 | 60.20 | 280.91 | 0.8808 | -502.9 | -327.3 | |
| 1.39 | 269.82 | 1.33 | 251.89 | 3.76 | 11.65 | 58.04 | 278.79 | 0.8587 | -396.9 | 182.9 | |
| 0.00 | 1.56 | 0.00 | 1.52 | 4.74 | 11.77 | 58.16 | 279.89 | 0.8614 | 232.0 | 174.2 | |
| 1.22 | -9.00 | 1.17 | -9.00 | 4.00 | 11.62 | 58.01 | 279.07 | 0.8588 | -638.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.77 | 6.31 | 11.62 | 58.01 | 281.71 | 0.8630 | 199.0 | 135.0 | |
| 13.72 | -9.00 | 13.08 | -9.00 | 4.51 | 11.28 | 57.67 | 279.73 | 0.8568 | -583.5 | 999999 | |
| 17.46 | -9.00 | 16.49 | -9.00 | 5.81 | 10.63 | 57.02 | 281.38 | 0.8534 | 706.3 | 999999 | |
| 4.52 | -9.00 | 4.26 | -9.00 | 6.19 | 10.53 | 56.92 | 281.85 | 0.8533 | 560.8 | 999999 | |
| 1.39 | -9.00 | 1.30 | -9.00 | 5.14 | 10.37 | 56.76 | 280.67 | 0.8498 | 541.4 | 999999 | |
| 2.78 | -9.00 | 2.56 | -9.00 | 4.98 | 9.96 | 56.35 | 280.58 | 0.8458 | 682.5 | 999999 | |
| 1.74 | -9.00 | 1.59 | -9.00 | 4.85 | 9.62 | 56.01 | 280.52 | 0.8424 | 769.5 | 999999 | |
| 21.19 | -9.00 | 19.59 | -9.00 | 6.23 | 9.77 | 56.16 | 282.09 | 0.8465 | 878.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.77 | 11.19 | 10.34 | 56.73 | 287.57 | 0.8624 | -500.0 | -463.1 | |
| 0.00 | 0.96 | 0.00 | 0.89 | 8.04 | 9.46 | 55.86 | 284.25 | 0.8476 | 387.0 | 323.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
