SDO HMI 2014-03-14 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.73 | 319.63 | 87.23 | 310.01 | 5.50 | 11.23 | 58.17 | 280.77 | 0.8625 | 190.4 | 85.1 | |
|
previous
or next observation for the same group /

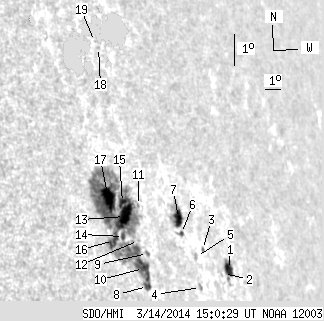

back to the solar disc SDO HMI 2014-03-14 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.64 | 13.72 | 8.88 | 15.93 | 4.84 | 16.82 | 63.76 | 278.82 | 0.9063 | -458.8 | -303.7 | |
| 0.00 | 2.43 | 0.00 | 2.79 | 4.68 | 16.46 | 63.40 | 278.72 | 0.9034 | -505.0 | -446.0 | |
| 0.43 | 1.48 | 0.48 | 1.62 | 5.27 | 15.17 | 62.11 | 279.62 | 0.8946 | -175.0 | -176.4 | |
| 0.00 | 2.17 | 0.00 | 2.34 | 4.08 | 14.85 | 61.80 | 278.37 | 0.8904 | -581.0 | -509.8 | |
| 0.00 | 2.43 | 0.00 | 2.63 | 5.00 | 14.74 | 61.68 | 279.42 | 0.8909 | -609.0 | -538.4 | |
| 1.04 | 3.30 | 1.10 | 3.48 | 5.61 | 13.90 | 60.85 | 280.27 | 0.8852 | -479.5 | -477.9 | |
| 8.94 | 21.10 | 9.44 | 22.23 | 6.06 | 13.80 | 60.74 | 280.79 | 0.8851 | -484.3 | -283.8 | |
| 2.87 | 267.45 | 2.79 | 253.53 | 3.75 | 11.60 | 58.54 | 278.68 | 0.8631 | -492.5 | 162.5 | |
| 0.00 | 1.82 | 0.00 | 1.79 | 4.77 | 11.73 | 58.67 | 279.80 | 0.8659 | 137.0 | 65.9 | |
| 12.50 | -8.00 | 12.15 | -8.00 | 4.28 | 11.44 | 58.38 | 279.31 | 0.8625 | -662.5 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.11 | 6.19 | 11.44 | 58.38 | 281.49 | 0.8659 | 136.0 | 74.7 | |
| 0.00 | 0.69 | 0.00 | 0.68 | 5.11 | 11.26 | 58.20 | 280.30 | 0.8625 | 219.0 | 170.2 | |
| 21.62 | -8.00 | 20.69 | -8.00 | 5.77 | 10.57 | 57.51 | 281.21 | 0.8576 | 691.2 | 999999 | |
| 1.82 | -8.00 | 1.73 | -8.00 | 5.14 | 10.42 | 57.36 | 280.53 | 0.8551 | 484.9 | 999999 | |
| 4.52 | -8.00 | 4.33 | -8.00 | 6.19 | 10.53 | 57.47 | 281.71 | 0.8581 | 583.6 | 999999 | |
| 6.77 | -8.00 | 6.32 | -8.00 | 4.96 | 9.84 | 56.78 | 280.46 | 0.8496 | 723.3 | 999999 | |
| 20.58 | -8.00 | 19.32 | -8.00 | 6.23 | 9.76 | 56.70 | 281.94 | 0.8514 | 873.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.03 | 10.93 | 10.32 | 57.26 | 287.12 | 0.8662 | -339.0 | -330.6 | |
| 0.00 | 0.87 | 0.00 | 0.85 | 11.10 | 10.14 | 57.09 | 287.36 | 0.8651 | -388.0 | -379.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
