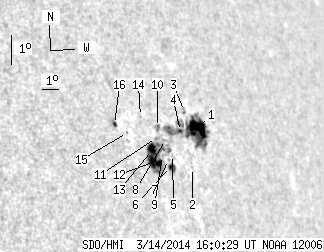

SDO HMI 2014-03-14 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.37 | 135.70 | 44.10 | 135.37 | 11.23 | 10.26 | 57.75 | 287.31 | 0.8707 | -24.6 | -265.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.54 | 71.72 | 20.39 | 73.89 | 11.72 | 11.53 | 59.02 | 287.48 | 0.8821 | -671.8 | -485.7 | |
| 0.00 | 0.87 | 0.00 | 0.88 | 10.43 | 10.81 | 58.31 | 286.26 | 0.8737 | 203.0 | 178.9 | |
| 0.00 | 1.39 | 0.00 | 1.43 | 12.18 | 10.93 | 58.42 | 288.17 | 0.8784 | -536.0 | -388.6 | |
| 1.74 | -1.00 | 1.75 | -1.00 | 11.51 | 10.46 | 57.95 | 287.56 | 0.8732 | -771.3 | 999999 | |
| 0.00 | 2.26 | 0.00 | 2.22 | 10.71 | 9.75 | 57.25 | 286.88 | 0.8656 | -100.0 | -145.8 | |
| 1.30 | 5.12 | 1.27 | 5.00 | 10.32 | 9.53 | 57.02 | 286.51 | 0.8628 | 417.7 | 228.2 | |
| 0.00 | 0.78 | 0.00 | 0.76 | 10.53 | 9.48 | 56.97 | 286.76 | 0.8628 | 189.0 | 149.6 | |
| 0.00 | 1.30 | 0.00 | 1.27 | 11.15 | 9.49 | 56.99 | 287.45 | 0.8644 | -348.0 | -322.1 | |
| 0.00 | 0.78 | 0.00 | 0.75 | 10.62 | 9.17 | 56.66 | 286.95 | 0.8605 | -19.0 | 23.8 | |
| 0.00 | 2.95 | 0.00 | 2.87 | 11.49 | 9.15 | 56.64 | 287.93 | 0.8624 | -700.0 | -600.9 | |
| 0.00 | 1.91 | 0.00 | 1.84 | 11.16 | 8.99 | 56.49 | 287.61 | 0.8603 | -259.0 | -234.4 | |
| 13.02 | 43.15 | 12.38 | 41.26 | 10.38 | 8.66 | 56.15 | 286.83 | 0.8555 | 753.3 | 116.3 | |
| 7.64 | -12.00 | 7.28 | -12.00 | 10.75 | 8.65 | 56.14 | 287.25 | 0.8564 | 601.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 11.74 | 8.29 | 55.79 | 288.48 | 0.8557 | 251.0 | 200.9 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 11.15 | 7.42 | 54.91 | 288.09 | 0.8467 | 388.0 | 379.9 | |
| 1.13 | 2.00 | 1.03 | 1.82 | 11.33 | 6.78 | 54.27 | 288.51 | 0.8415 | 399.9 | 371.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
