SDO HMI 2014-03-14 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.83 | 302.98 | 82.78 | 302.97 | 5.41 | 11.28 | 59.32 | 280.40 | 0.8722 | 114.2 | 134.0 | |
|
previous
or next observation for the same group /

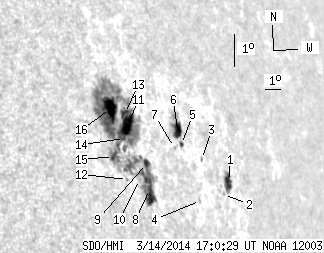

back to the solar disc SDO HMI 2014-03-14 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.25 | 12.41 | 10.02 | 15.08 | 4.83 | 16.97 | 65.01 | 278.57 | 0.9151 | -428.5 | -243.7 | |
| 0.00 | 0.43 | 0.00 | 0.52 | 4.42 | 16.54 | 64.58 | 278.21 | 0.9116 | -452.0 | -367.6 | |
| 0.00 | 0.95 | 0.00 | 1.09 | 5.33 | 15.19 | 63.23 | 279.46 | 0.9031 | -202.0 | -216.6 | |
| 0.00 | 0.95 | 0.00 | 1.07 | 4.05 | 14.91 | 62.95 | 278.12 | 0.8993 | -647.0 | -512.6 | |
| 1.04 | 2.17 | 1.14 | 2.38 | 5.64 | 13.94 | 61.98 | 280.07 | 0.8941 | -367.7 | -261.3 | |
| 8.51 | 18.67 | 9.31 | 20.40 | 6.05 | 13.76 | 61.80 | 280.55 | 0.8934 | -480.3 | -255.4 | |
| 0.00 | 0.87 | 0.00 | 0.94 | 5.50 | 13.46 | 61.51 | 280.01 | 0.8902 | -493.0 | -494.1 | |
| 16.76 | 264.53 | 16.93 | 259.53 | 4.03 | 11.70 | 59.74 | 278.74 | 0.8738 | -639.4 | 180.8 | |
| 3.30 | -8.00 | 3.34 | -8.00 | 4.81 | 11.63 | 59.67 | 279.64 | 0.8744 | 4.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.86 | 4.27 | 11.14 | 59.18 | 279.13 | 0.8694 | -482.0 | -463.4 | |
| 16.58 | -8.00 | 16.43 | -8.00 | 5.89 | 10.68 | 58.73 | 281.07 | 0.8683 | 682.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.10 | 4.20 | 10.43 | 58.47 | 279.20 | 0.8632 | 28.0 | 77.7 | |
| 3.39 | -8.00 | 3.35 | -8.00 | 6.22 | 10.57 | 58.61 | 281.46 | 0.8679 | 565.2 | 999999 | |
| 0.69 | -8.00 | 0.68 | -8.00 | 5.44 | 10.43 | 58.48 | 280.62 | 0.8654 | 646.9 | 999999 | |
| 2.86 | -8.00 | 2.75 | -8.00 | 4.82 | 9.71 | 57.76 | 280.07 | 0.8580 | 739.3 | 999999 | |
| 19.45 | -8.00 | 18.83 | -8.00 | 6.28 | 9.78 | 57.82 | 281.73 | 0.8613 | 892.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
