SDO HMI 2014-03-14 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.75 | 147.15 | 46.32 | 149.59 | 11.27 | 10.32 | 58.37 | 287.19 | 0.8757 | -44.2 | -210.7 | |
|
previous
or next observation for the same group /

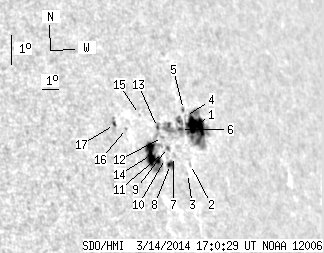

back to the solar disc SDO HMI 2014-03-14 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.75 | 81.44 | 22.04 | 85.52 | 11.74 | 11.52 | 59.57 | 287.36 | 0.8864 | -672.3 | -394.6 | |
| 0.00 | 1.22 | 0.00 | 1.25 | 10.45 | 10.79 | 58.83 | 286.14 | 0.8780 | 144.0 | 110.9 | |
| 0.00 | 0.69 | 0.00 | 0.71 | 10.14 | 10.52 | 58.56 | 285.87 | 0.8752 | 234.0 | 217.5 | |
| 0.00 | 0.87 | 0.00 | 0.91 | 11.97 | 11.00 | 59.05 | 287.75 | 0.8828 | -550.0 | -464.8 | |
| 0.00 | 1.30 | 0.00 | 1.36 | 12.18 | 10.96 | 59.00 | 288.00 | 0.8829 | -432.0 | -393.8 | |
| 1.39 | -1.00 | 1.43 | -1.00 | 11.51 | 10.55 | 58.59 | 287.38 | 0.8783 | -742.2 | 999999 | |
| 0.00 | 2.43 | 0.00 | 2.43 | 10.60 | 9.85 | 57.89 | 286.57 | 0.8706 | -314.0 | -228.8 | |
| 2.86 | 5.12 | 2.84 | 5.07 | 10.32 | 9.59 | 57.63 | 286.33 | 0.8680 | 329.8 | 218.9 | |
| 0.35 | 1.82 | 0.35 | 1.81 | 10.85 | 9.58 | 57.62 | 286.92 | 0.8690 | -183.0 | -160.9 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 10.48 | 9.35 | 57.40 | 286.58 | 0.8663 | 64.0 | 101.7 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 10.66 | 9.29 | 57.34 | 286.80 | 0.8662 | 233.0 | 210.7 | |
| 0.00 | 1.48 | 0.00 | 1.46 | 11.14 | 9.38 | 57.43 | 287.30 | 0.8681 | -367.0 | -294.2 | |
| 0.69 | 44.10 | 0.69 | 42.78 | 11.43 | 9.19 | 57.24 | 287.68 | 0.8671 | -649.2 | 105.6 | |
| 18.93 | -13.00 | 18.25 | -13.00 | 10.52 | 8.58 | 56.62 | 286.85 | 0.8599 | 714.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.59 | 11.73 | 8.28 | 56.33 | 288.30 | 0.8603 | 319.0 | 254.3 | |
| 0.00 | 0.95 | 0.00 | 0.90 | 11.20 | 7.41 | 55.46 | 287.98 | 0.8516 | 448.0 | 308.7 | |
| 0.78 | 4.08 | 0.72 | 3.77 | 11.26 | 6.79 | 54.83 | 288.25 | 0.8463 | 401.7 | 325.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
