SDO HMI 2014-03-14 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.57 | 874.03 | 100.19 | 455.65 | -18.52 | 325.21 | 13.80 | 226.91 | 0.3096 | 2.8 | 61.9 | |
|
previous
or next observation for the same group /

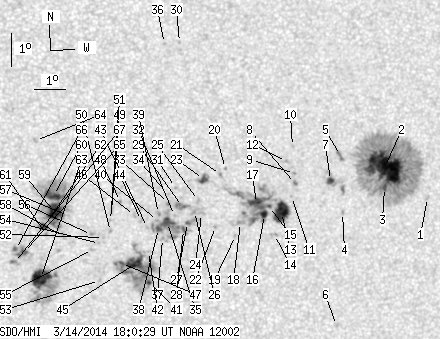

back to the solar disc SDO HMI 2014-03-14 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.16 | -18.11 | 331.23 | 19.82 | 238.59 | 0.3793 | 724.0 | 497.5 | |
| 61.03 | 336.32 | 32.28 | 178.00 | -17.26 | 329.71 | 18.31 | 238.87 | 0.3520 | 1273.1 | 402.1 | |
| 2.60 | -2.00 | 1.38 | -2.00 | -17.87 | 329.78 | 18.37 | 237.43 | 0.3575 | 839.9 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -18.67 | 328.48 | 17.07 | 233.66 | 0.3468 | 733.0 | 615.9 | |
| 0.00 | 4.34 | 0.00 | 2.28 | -16.95 | 328.24 | 16.84 | 237.74 | 0.3291 | 991.0 | 821.1 | |
| 0.00 | 2.43 | 0.00 | 1.30 | -22.13 | 328.67 | 17.27 | 226.24 | 0.3823 | 718.0 | 466.7 | |
| 2.95 | 15.80 | 1.55 | 8.30 | -17.72 | 327.99 | 16.58 | 235.35 | 0.3320 | 1176.9 | 828.4 | |
| 0.00 | 2.34 | 0.00 | 1.22 | -17.84 | 326.86 | 15.46 | 233.25 | 0.3180 | 1105.0 | 916.8 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -17.54 | 326.80 | 15.40 | 233.96 | 0.3145 | 943.0 | 769.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -16.73 | 326.67 | 15.26 | 235.98 | 0.3056 | 739.0 | 585.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -18.24 | 326.77 | 15.36 | 232.05 | 0.3205 | 887.0 | 702.8 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -17.19 | 326.51 | 15.11 | 234.44 | 0.3074 | 918.0 | 678.1 | |
| 20.23 | 107.82 | 10.58 | 56.18 | -18.74 | 326.49 | 15.08 | 230.31 | 0.3216 | 1084.2 | 614.5 | |
| 0.00 | 2.95 | 0.00 | 1.55 | -19.41 | 326.32 | 14.91 | 228.34 | 0.3263 | 753.0 | 652.7 | |
| 0.87 | -13.00 | 0.45 | -13.00 | -18.57 | 326.08 | 14.67 | 230.02 | 0.3148 | 1088.2 | 999999 | |
| 3.99 | -13.00 | 2.08 | -13.00 | -18.81 | 325.94 | 14.53 | 229.13 | 0.3155 | 1047.1 | 999999 | |
| 11.72 | -13.00 | 6.10 | -13.00 | -18.49 | 325.65 | 14.25 | 229.43 | 0.3086 | 929.0 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.08 | -19.08 | 325.18 | 13.78 | 227.03 | 0.3090 | 129.0 | 93.3 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -19.48 | 325.05 | 13.65 | 225.79 | 0.3117 | 751.0 | 509.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -17.45 | 324.57 | 13.17 | 230.11 | 0.2844 | -677.0 | -504.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -17.64 | 324.42 | 13.02 | 229.29 | 0.2845 | -740.0 | -639.2 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -19.22 | 324.38 | 12.98 | 225.04 | 0.3010 | 760.0 | 554.6 | |
| 3.30 | 8.16 | 1.70 | 4.21 | -17.80 | 323.89 | 12.49 | 227.70 | 0.2795 | -925.1 | -636.6 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -18.84 | 323.90 | 12.50 | 224.97 | 0.2910 | -163.0 | -196.4 | |
| 0.00 | 2.34 | 0.00 | 1.21 | -18.45 | 323.78 | 12.37 | 225.72 | 0.2852 | -705.0 | -496.4 | |
| 0.00 | 3.47 | 0.00 | 1.80 | -18.78 | 323.67 | 12.27 | 224.61 | 0.2877 | -839.0 | -508.0 | |
| 0.61 | 6.77 | 0.31 | 3.50 | -19.12 | 323.47 | 12.07 | 223.29 | 0.2893 | -909.6 | -578.2 | |
| 1.13 | 40.37 | 0.58 | 20.85 | -19.34 | 323.36 | 11.95 | 222.50 | 0.2906 | -851.5 | -600.7 | |
| 0.00 | 8.51 | 0.00 | 4.39 | -18.64 | 323.28 | 11.87 | 224.07 | 0.2815 | -944.0 | -827.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.70 | 322.89 | 11.48 | 239.04 | 0.2266 | 903.0 | 658.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -18.07 | 323.01 | 11.61 | 224.98 | 0.2718 | 605.0 | 413.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -18.92 | 323.04 | 11.63 | 222.80 | 0.2820 | -823.0 | -642.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -18.56 | 322.82 | 11.42 | 223.21 | 0.2753 | -1097.0 | -1046.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -18.29 | 322.80 | 11.40 | 223.89 | 0.2719 | -707.0 | -570.4 | |
| 7.38 | -28.00 | 3.81 | -28.00 | -19.14 | 322.83 | 11.42 | 221.75 | 0.2822 | -1016.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -13.74 | 322.42 | 11.02 | 237.88 | 0.2202 | 908.0 | 724.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -19.63 | 322.70 | 11.30 | 220.25 | 0.2868 | -697.0 | -561.1 | |
| 2.26 | -28.00 | 1.16 | -28.00 | -19.33 | 322.55 | 11.15 | 220.61 | 0.2815 | -1022.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -18.87 | 322.52 | 11.11 | 221.67 | 0.2756 | -1095.0 | -1017.5 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -19.08 | 322.50 | 11.10 | 221.09 | 0.2780 | -1182.0 | -929.2 | |
| 1.74 | 87.68 | 0.90 | 45.39 | -20.98 | 322.34 | 10.94 | 216.34 | 0.3003 | 1041.5 | -126.2 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -20.04 | 322.28 | 10.87 | 218.26 | 0.2874 | -607.0 | -502.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -19.30 | 322.20 | 10.79 | 219.78 | 0.2774 | -837.0 | -722.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -19.09 | 321.99 | 10.58 | 219.77 | 0.2726 | -915.0 | -715.4 | |
| 13.72 | -41.00 | 7.09 | -41.00 | -20.41 | 321.88 | 10.48 | 216.43 | 0.2883 | -1105.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -18.95 | 321.76 | 10.35 | 219.53 | 0.2682 | -856.0 | -689.8 | |
| 1.22 | -41.00 | 0.63 | -41.00 | -20.42 | 321.43 | 10.03 | 215.24 | 0.2840 | -1132.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.53 | 321.28 | 9.88 | 219.31 | 0.2579 | -954.0 | -857.5 | |
| 0.00 | 3.21 | 0.00 | 1.65 | -18.81 | 321.01 | 9.61 | 217.84 | 0.2587 | -721.0 | -689.9 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -19.45 | 321.02 | 9.61 | 216.31 | 0.2671 | -970.0 | -744.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -19.11 | 321.00 | 9.59 | 217.05 | 0.2625 | -926.0 | -652.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -19.64 | 320.80 | 9.40 | 215.28 | 0.2675 | -799.0 | -629.3 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -20.95 | 320.75 | 9.35 | 212.33 | 0.2850 | -599.0 | -483.3 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -19.82 | 320.69 | 9.28 | 214.53 | 0.2689 | -705.0 | -631.0 | |
| 0.00 | 2.26 | 0.00 | 1.16 | -20.01 | 320.47 | 9.07 | 213.51 | 0.2694 | -776.0 | -637.7 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -19.55 | 320.41 | 9.01 | 214.36 | 0.2626 | -1052.0 | -884.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -18.99 | 319.62 | 8.21 | 213.27 | 0.2474 | -264.0 | -267.0 | |
| 0.00 | 3.30 | 0.00 | 1.69 | -19.63 | 319.52 | 8.12 | 211.53 | 0.2555 | -765.0 | -564.9 | |
| 17.80 | 107.22 | 9.08 | 54.67 | -18.87 | 319.20 | 7.80 | 212.20 | 0.2420 | -1276.8 | -631.7 | |
| 10.77 | -59.00 | 5.48 | -59.00 | -18.39 | 319.15 | 7.74 | 213.18 | 0.2347 | -1265.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -19.58 | 318.98 | 7.57 | 209.92 | 0.2501 | -847.0 | -691.5 | |
| 3.73 | -59.00 | 1.91 | -59.00 | -19.33 | 318.87 | 7.47 | 210.09 | 0.2457 | -1024.7 | 999999 | |
| 22.31 | 64.76 | 11.47 | 33.33 | -20.92 | 318.85 | 7.44 | 206.89 | 0.2688 | -1177.4 | -373.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -16.73 | 318.51 | 7.11 | 215.38 | 0.2056 | -959.0 | -731.6 | |
| 2.26 | 12.15 | 1.16 | 6.22 | -20.13 | 318.27 | 6.86 | 206.49 | 0.2527 | -1181.8 | -867.7 | |
| 0.95 | -65.00 | 0.49 | -65.00 | -20.05 | 318.01 | 6.60 | 205.80 | 0.2494 | -1105.1 | 999999 | |
| 0.00 | 3.56 | 0.00 | 1.82 | -20.44 | 317.99 | 6.59 | 205.03 | 0.2553 | -957.0 | -771.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
