SDO HMI 2014-03-14 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.43 | 455.60 | 73.11 | 392.04 | 11.79 | 260.07 | -51.34 | 69.62 | 0.8112 | -718.5 | -222.3 | |
|
previous
or next observation for the same group /

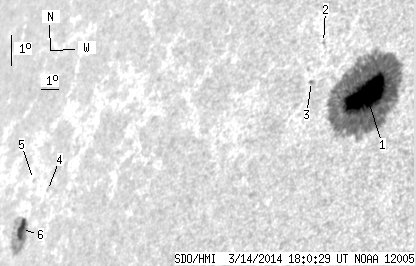

back to the solar disc SDO HMI 2014-03-14 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.01 | 409.42 | 58.39 | 327.85 | 12.11 | 263.15 | -48.26 | 68.35 | 0.7871 | -1055.2 | -266.3 | |
| 0.00 | 1.39 | 0.00 | 1.19 | 14.00 | 260.59 | -50.81 | 67.16 | 0.8182 | -390.0 | -336.5 | |
| 0.00 | 0.95 | 0.00 | 0.81 | 12.80 | 260.36 | -51.04 | 68.65 | 0.8164 | -509.0 | -468.7 | |
| 0.00 | 0.78 | 0.00 | 1.04 | 11.05 | 245.39 | -66.02 | 75.02 | 0.9299 | 454.0 | 451.8 | |
| 0.00 | 0.78 | 0.00 | 1.11 | 11.55 | 244.06 | -67.34 | 74.79 | 0.9385 | 222.0 | 218.6 | |
| 10.42 | 42.28 | 14.72 | 60.04 | 10.03 | 243.80 | -67.60 | 76.43 | 0.9381 | 437.2 | 20.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
