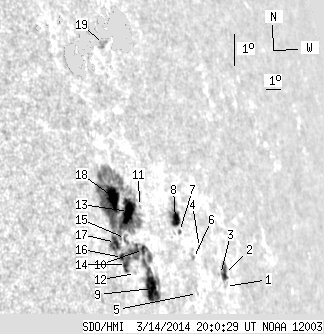

SDO HMI 2014-03-14 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.82 | 308.38 | 90.40 | 324.73 | 5.31 | 11.24 | 60.93 | 279.94 | 0.8852 | 108.1 | 116.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 2.03 | 4.42 | 17.01 | 66.70 | 277.82 | 0.9260 | -217.0 | -127.4 | |
| 4.60 | 9.03 | 5.99 | 11.76 | 4.81 | 17.01 | 66.70 | 278.24 | 0.9264 | -441.2 | -301.0 | |
| 0.00 | 1.13 | 0.00 | 1.45 | 4.75 | 16.69 | 66.39 | 278.23 | 0.9243 | -603.0 | -525.8 | |
| 0.00 | 0.78 | 0.00 | 0.95 | 5.40 | 15.28 | 64.98 | 279.20 | 0.9156 | -139.0 | -159.8 | |
| 0.00 | 0.35 | 0.00 | 0.41 | 3.96 | 14.88 | 64.58 | 277.72 | 0.9110 | -381.0 | -396.2 | |
| 0.00 | 1.56 | 0.00 | 1.87 | 5.01 | 14.78 | 64.47 | 278.87 | 0.9116 | -490.0 | -459.5 | |
| 0.52 | 1.39 | 0.61 | 1.62 | 5.74 | 13.95 | 63.65 | 279.83 | 0.9067 | -372.0 | -272.2 | |
| 7.47 | 13.89 | 8.66 | 16.08 | 6.08 | 13.75 | 63.45 | 280.24 | 0.9057 | -425.7 | -333.9 | |
| 19.62 | 267.31 | 20.95 | 276.54 | 3.77 | 11.85 | 61.55 | 278.09 | 0.8881 | -514.1 | 179.6 | |
| 2.60 | -9.00 | 2.77 | -9.00 | 4.91 | 11.45 | 61.15 | 279.44 | 0.8866 | 110.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.02 | 6.22 | 11.44 | 61.14 | 280.89 | 0.8885 | 124.0 | 82.4 | |
| 0.00 | 1.39 | 0.00 | 1.44 | 4.12 | 10.84 | 60.54 | 278.68 | 0.8805 | -534.0 | -437.2 | |
| 19.45 | -9.00 | 20.32 | -9.00 | 5.99 | 10.71 | 60.41 | 280.79 | 0.8824 | 575.2 | 999999 | |
| 5.38 | -9.00 | 5.50 | -9.00 | 4.33 | 10.32 | 60.02 | 279.03 | 0.8765 | -161.7 | 999999 | |
| 0.00 | 3.47 | 0.00 | 3.57 | 5.13 | 10.38 | 60.08 | 279.91 | 0.8783 | 565.0 | 430.8 | |
| 2.26 | -9.00 | 2.29 | -9.00 | 4.52 | 10.11 | 59.81 | 279.28 | 0.8751 | 475.7 | 999999 | |
| 4.69 | -9.00 | 4.73 | -9.00 | 4.94 | 9.75 | 59.45 | 279.83 | 0.8728 | 685.7 | 999999 | |
| 18.23 | -9.00 | 18.58 | -9.00 | 6.32 | 9.87 | 59.57 | 281.36 | 0.8761 | 801.1 | 999999 | |
| 0.00 | 5.56 | 0.00 | 5.99 | 11.10 | 10.56 | 60.25 | 286.47 | 0.8903 | -569.0 | -512.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
