SDO HMI 2014-03-14 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.56 | 455.45 | 73.42 | 382.39 | 11.78 | 260.05 | -50.25 | 69.21 | 0.8010 | -753.4 | -227.7 | |
|
previous
or next observation for the same group /

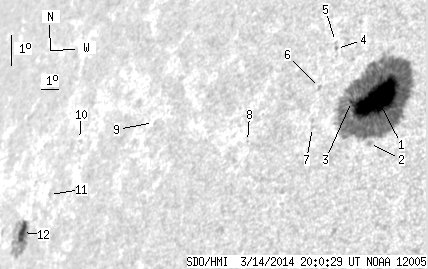

back to the solar disc SDO HMI 2014-03-14 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.62 | 402.92 | 59.15 | 315.75 | 12.10 | 263.13 | -47.17 | 67.90 | 0.7762 | -1146.9 | -281.0 | |
| 0.00 | 2.78 | 0.00 | 2.15 | 10.70 | 263.08 | -47.22 | 69.64 | 0.7716 | -341.0 | -323.8 | |
| 0.87 | -1.00 | 0.70 | -1.00 | 12.12 | 261.94 | -48.36 | 68.38 | 0.7882 | -83.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.94 | 13.91 | 260.77 | -49.53 | 66.75 | 0.8060 | -435.0 | -382.2 | |
| 0.00 | 0.35 | 0.00 | 0.29 | 14.14 | 260.65 | -49.65 | 66.53 | 0.8079 | -268.0 | -268.0 | |
| 0.00 | 1.91 | 0.00 | 1.59 | 12.73 | 260.29 | -50.01 | 68.33 | 0.8064 | -409.0 | -319.7 | |
| 0.00 | 1.04 | 0.00 | 0.86 | 11.48 | 260.28 | -50.03 | 69.82 | 0.8024 | -151.0 | -174.4 | |
| 0.00 | 0.61 | 0.00 | 0.54 | 11.36 | 257.10 | -53.20 | 71.09 | 0.8320 | -445.0 | -396.1 | |
| 0.00 | 0.43 | 0.00 | 0.45 | 12.55 | 251.57 | -58.73 | 71.51 | 0.8817 | 314.0 | 352.6 | |
| 0.00 | 0.52 | 0.00 | 0.63 | 12.56 | 246.85 | -63.45 | 72.80 | 0.9158 | 188.0 | 205.0 | |
| 0.00 | 0.78 | 0.00 | 1.00 | 11.01 | 245.40 | -64.90 | 74.79 | 0.9228 | 447.0 | 447.2 | |
| 10.07 | 42.98 | 13.57 | 58.19 | 10.03 | 243.79 | -66.51 | 76.20 | 0.9315 | 508.8 | 63.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
