SDO HMI 2014-03-14 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 42.81 | 0.00 | 21.80 | -12.15 | 299.25 | -10.50 | 121.94 | 0.2179 | 14.1 | -43.9 | |
|
previous
or next observation for the same group /

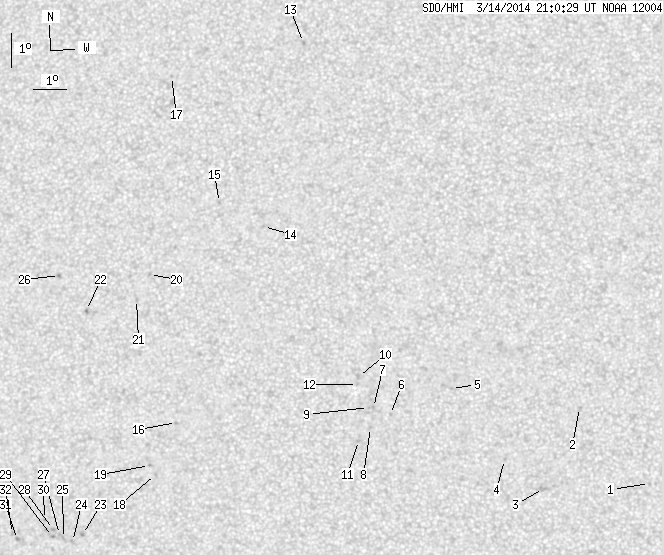

back to the solar disc SDO HMI 2014-03-14 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.56 | -14.34 | 311.99 | 2.24 | 196.93 | 0.1309 | 857.0 | 624.1 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -12.06 | 309.84 | 0.09 | 181.07 | 0.0855 | 778.0 | 488.2 | |
| 0.00 | 4.17 | 0.00 | 2.08 | -14.49 | 308.73 | -1.02 | 172.31 | 0.1289 | 892.0 | 768.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -13.61 | 307.54 | -2.21 | 161.53 | 0.1187 | 819.0 | 589.4 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -11.48 | 305.95 | -3.80 | 139.16 | 0.0998 | 860.0 | 661.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -12.23 | 304.07 | -5.68 | 132.51 | 0.1317 | 858.0 | 649.0 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -12.01 | 303.56 | -6.19 | 128.85 | 0.1361 | 963.0 | 877.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.61 | 303.45 | -6.30 | 131.69 | 0.1440 | 874.0 | 671.1 | |
| 0.00 | 0.35 | 0.00 | 0.17 | -12.01 | 303.40 | -6.35 | 128.17 | 0.1381 | 868.0 | 799.5 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -11.08 | 303.12 | -6.63 | 121.29 | 0.1332 | 985.0 | 714.7 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -12.99 | 303.07 | -6.68 | 132.02 | 0.1532 | 888.0 | 690.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.32 | 303.09 | -6.66 | 122.68 | 0.1358 | 756.0 | 635.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -1.09 | 301.60 | -8.15 | 53.50 | 0.1770 | 990.0 | 822.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -6.56 | 300.33 | -9.42 | 86.76 | 0.1636 | 854.0 | 616.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.81 | 299.01 | -10.74 | 83.32 | 0.1876 | 798.0 | 615.2 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -12.34 | 297.46 | -12.29 | 114.01 | 0.2287 | -722.0 | -655.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -2.02 | 297.60 | -12.15 | 67.47 | 0.2287 | 795.0 | 657.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -13.87 | 296.72 | -13.03 | 118.67 | 0.2506 | -861.0 | -718.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.60 | 296.55 | -13.20 | 117.38 | 0.2512 | -964.0 | -845.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -7.90 | 296.81 | -12.94 | 94.04 | 0.2234 | -792.0 | -602.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -8.63 | 296.38 | -13.37 | 97.15 | 0.2315 | -757.0 | -658.2 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -8.91 | 294.81 | -14.94 | 97.68 | 0.2581 | -885.0 | -776.8 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -15.60 | 294.28 | -15.47 | 120.42 | 0.2992 | -895.0 | -695.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -15.80 | 293.94 | -15.81 | 120.51 | 0.3056 | -814.0 | -634.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -15.70 | 293.66 | -16.09 | 119.82 | 0.3089 | -830.0 | -726.4 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -7.84 | 294.01 | -15.74 | 93.44 | 0.2704 | -904.0 | -694.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -15.58 | 293.54 | -16.21 | 119.29 | 0.3096 | -874.0 | -775.9 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -15.42 | 293.36 | -16.39 | 118.59 | 0.3111 | -966.0 | -700.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -15.63 | 293.31 | -16.44 | 119.13 | 0.3133 | -910.0 | -793.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -15.11 | 293.10 | -16.65 | 117.33 | 0.3128 | -708.0 | -544.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -15.68 | 292.18 | -17.57 | 117.82 | 0.3302 | -831.0 | -690.8 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -15.49 | 292.03 | -17.72 | 117.13 | 0.3310 | -672.0 | -525.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
