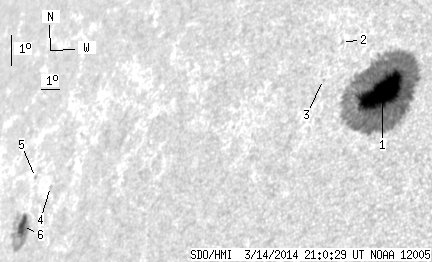

SDO HMI 2014-03-14 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.82 | 465.22 | 76.25 | 386.06 | 11.76 | 260.04 | -49.71 | 69.02 | 0.7958 | -794.1 | -233.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.88 | 417.46 | 61.84 | 323.56 | 12.08 | 263.12 | -46.63 | 67.69 | 0.7706 | -1144.1 | -290.5 | |
| 0.00 | 0.52 | 0.00 | 0.43 | 13.88 | 260.79 | -48.96 | 66.54 | 0.8005 | -447.0 | -356.8 | |
| 0.00 | 0.61 | 0.00 | 0.50 | 12.77 | 260.25 | -49.50 | 68.08 | 0.8017 | -367.0 | -315.9 | |
| 0.00 | 1.22 | 0.00 | 1.51 | 11.04 | 245.40 | -64.35 | 74.63 | 0.9192 | 406.0 | 333.3 | |
| 0.00 | 0.87 | 0.00 | 1.14 | 11.47 | 244.13 | -65.62 | 74.48 | 0.9280 | 310.0 | 259.8 | |
| 10.94 | 44.54 | 14.41 | 58.92 | 9.99 | 243.78 | -65.97 | 76.12 | 0.9281 | 494.5 | 71.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
