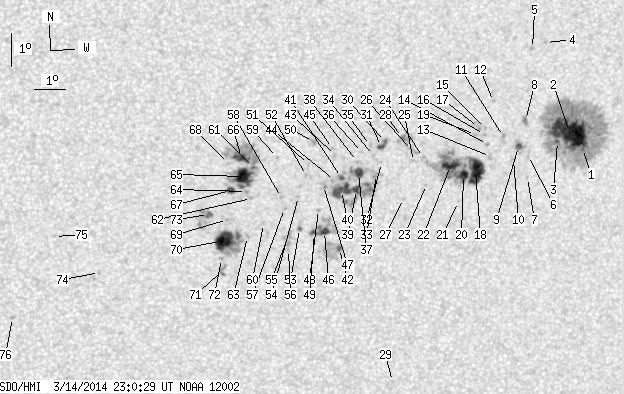

SDO HMI 2014-03-14 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.78 | 859.36 | 104.73 | 453.66 | -18.39 | 325.33 | 16.68 | 232.46 | 0.3438 | 22.4 | 44.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-14 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 332.71 | 0.56 | 179.05 | -17.69 | 330.20 | 21.55 | 241.41 | 0.4003 | 707.5 | 374.9 | |
| 60.18 | -1.00 | 32.36 | -1.00 | -17.20 | 329.70 | 21.05 | 242.08 | 0.3901 | 1135.4 | 999999 | |
| 0.96 | -1.00 | 0.51 | -1.00 | -17.52 | 329.34 | 20.69 | 240.97 | 0.3871 | 983.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.55 | 328.63 | 19.98 | 247.72 | 0.3590 | 772.0 | 611.8 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -14.75 | 328.22 | 19.57 | 246.83 | 0.3540 | 753.0 | 511.2 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -17.98 | 328.43 | 19.78 | 238.88 | 0.3776 | 801.0 | 636.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -18.65 | 328.47 | 19.82 | 237.37 | 0.3832 | 593.0 | 437.1 | |
| 0.00 | 3.91 | 0.00 | 2.08 | -16.92 | 328.21 | 19.56 | 241.20 | 0.3671 | 1104.0 | 920.9 | |
| 2.61 | 7.90 | 1.39 | 4.21 | -17.72 | 328.06 | 19.42 | 239.09 | 0.3707 | 1032.7 | 740.9 | |
| 0.00 | 2.34 | 0.00 | 1.25 | -18.12 | 327.94 | 19.30 | 237.98 | 0.3720 | 669.0 | 468.7 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -17.44 | 327.54 | 18.89 | 239.16 | 0.3613 | 878.0 | 629.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -16.39 | 327.10 | 18.45 | 241.31 | 0.3477 | -692.0 | -571.0 | |
| 0.00 | 3.13 | 0.00 | 1.66 | -18.06 | 327.17 | 18.53 | 237.19 | 0.3610 | 623.0 | 605.5 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -17.70 | 327.04 | 18.39 | 237.90 | 0.3563 | 934.0 | 764.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -17.22 | 326.92 | 18.27 | 238.96 | 0.3511 | 693.0 | 571.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -17.40 | 326.91 | 18.26 | 238.48 | 0.3523 | 802.0 | 719.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -17.19 | 326.69 | 18.04 | 238.73 | 0.3477 | 760.0 | 794.8 | |
| 26.49 | 112.47 | 14.05 | 59.44 | -18.50 | 326.73 | 18.08 | 235.53 | 0.3585 | 987.9 | 566.9 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -17.41 | 326.61 | 17.96 | 238.08 | 0.3482 | 730.0 | 615.2 | |
| 7.03 | -18.00 | 3.72 | -18.00 | -18.67 | 326.35 | 17.70 | 234.61 | 0.3549 | 1000.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -19.46 | 326.27 | 17.62 | 232.61 | 0.3608 | 714.0 | 509.7 | |
| 9.47 | -18.00 | 5.00 | -18.00 | -18.38 | 325.89 | 17.24 | 234.66 | 0.3463 | 1147.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -18.98 | 325.16 | 16.51 | 232.09 | 0.3422 | 585.0 | 462.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -18.16 | 324.98 | 16.33 | 233.85 | 0.3324 | 708.0 | 586.4 | |
| 0.00 | 2.52 | 0.00 | 1.32 | -18.30 | 324.67 | 16.02 | 233.02 | 0.3295 | 589.0 | 492.6 | |
| 0.00 | 4.86 | 0.00 | 2.55 | -17.96 | 324.60 | 15.96 | 233.77 | 0.3256 | 206.0 | 312.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -19.43 | 324.45 | 15.80 | 229.86 | 0.3374 | 421.0 | 421.0 | |
| 0.52 | 10.94 | 0.27 | 5.72 | -17.58 | 324.24 | 15.60 | 234.20 | 0.3174 | -678.5 | -239.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -25.08 | 324.74 | 16.09 | 218.84 | 0.4020 | 644.0 | 495.6 | |
| 0.61 | 5.82 | 0.32 | 3.03 | -17.72 | 323.71 | 15.06 | 232.94 | 0.3115 | -876.9 | -713.0 | |
| 2.17 | -30.00 | 1.13 | -30.00 | -17.87 | 323.59 | 14.94 | 232.32 | 0.3114 | -785.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -18.36 | 323.63 | 14.98 | 231.12 | 0.3166 | -461.0 | -378.7 | |
| 0.00 | 6.34 | 0.00 | 3.31 | -18.73 | 323.50 | 14.85 | 229.95 | 0.3185 | -201.0 | -308.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -18.15 | 323.35 | 14.71 | 231.17 | 0.3110 | -714.0 | -525.9 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -17.85 | 323.23 | 14.58 | 231.74 | 0.3066 | -714.0 | -607.8 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -18.07 | 322.99 | 14.34 | 230.72 | 0.3056 | 553.0 | 399.4 | |
| 5.82 | 80.25 | 3.03 | 41.84 | -18.68 | 322.91 | 14.26 | 228.99 | 0.3107 | -1013.8 | -585.0 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -18.35 | 322.85 | 14.20 | 229.73 | 0.3066 | -527.0 | -409.9 | |
| 4.86 | -37.00 | 2.54 | -37.00 | -19.20 | 322.89 | 14.24 | 227.64 | 0.3158 | -931.8 | 999999 | |
| 13.37 | -37.00 | 6.97 | -37.00 | -19.25 | 322.41 | 13.76 | 226.60 | 0.3104 | -974.8 | 999999 | |
| 1.39 | -37.00 | 0.72 | -37.00 | -18.85 | 322.37 | 13.73 | 227.53 | 0.3058 | -1184.2 | 999999 | |
| 1.30 | 22.75 | 0.68 | 11.93 | -21.02 | 322.50 | 13.85 | 222.66 | 0.3313 | 968.9 | 237.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -18.19 | 322.13 | 13.48 | 228.76 | 0.2958 | -775.0 | -589.2 | |
| 0.00 | 2.78 | 0.00 | 1.44 | -18.95 | 322.16 | 13.51 | 226.84 | 0.3042 | -923.0 | -855.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -17.98 | 322.01 | 13.37 | 229.10 | 0.2922 | -691.0 | -582.3 | |
| 4.52 | 26.66 | 2.36 | 13.93 | -20.51 | 321.96 | 13.31 | 222.71 | 0.3194 | -895.1 | -661.0 | |
| 0.00 | 3.65 | 0.00 | 1.89 | -19.11 | 321.81 | 13.16 | 225.74 | 0.3018 | -804.0 | -743.2 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -19.84 | 321.71 | 13.06 | 223.73 | 0.3089 | -858.0 | -733.0 | |
| 1.91 | -46.00 | 1.00 | -46.00 | -20.55 | 321.64 | 12.99 | 221.95 | 0.3163 | -995.0 | 999999 | |
| 0.00 | 2.95 | 0.00 | 1.52 | -17.78 | 321.39 | 12.74 | 228.34 | 0.2824 | -810.0 | -734.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -18.48 | 321.28 | 12.63 | 226.21 | 0.2886 | -760.0 | -568.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -18.82 | 321.24 | 12.59 | 225.26 | 0.2918 | -942.0 | -752.6 | |
| 0.69 | 1.74 | 0.36 | 0.90 | -20.44 | 321.14 | 12.49 | 221.13 | 0.3095 | -860.4 | -697.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -19.46 | 321.03 | 12.38 | 223.18 | 0.2968 | -827.0 | -741.3 | |
| 0.00 | 4.86 | 0.00 | 2.53 | -20.66 | 320.80 | 12.15 | 219.88 | 0.3086 | -732.0 | -607.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -21.09 | 320.83 | 12.19 | 219.03 | 0.3142 | -533.0 | -444.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -19.84 | 320.61 | 11.96 | 221.32 | 0.2965 | -647.0 | -613.5 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -19.51 | 320.48 | 11.84 | 221.84 | 0.2912 | -832.0 | -702.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -18.30 | 320.27 | 11.62 | 224.43 | 0.2745 | -816.0 | -530.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -20.32 | 319.96 | 11.31 | 218.72 | 0.2954 | -541.0 | -381.2 | |
| 0.78 | 89.97 | 0.40 | 46.20 | -18.62 | 319.52 | 10.88 | 221.75 | 0.2697 | -828.9 | -559.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.56 | 319.52 | 10.87 | 219.39 | 0.2813 | -758.0 | -641.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -20.72 | 319.47 | 10.82 | 216.63 | 0.2957 | -648.0 | -515.9 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -19.35 | 319.35 | 10.70 | 219.46 | 0.2769 | -765.0 | -586.9 | |
| 17.28 | -61.00 | 8.89 | -61.00 | -18.90 | 319.22 | 10.57 | 220.26 | 0.2698 | -1123.8 | 999999 | |
| 7.82 | -61.00 | 4.01 | -61.00 | -18.32 | 319.12 | 10.47 | 221.49 | 0.2617 | -1198.8 | 999999 | |
| 3.30 | 5.65 | 1.70 | 2.90 | -19.33 | 318.83 | 10.18 | 218.16 | 0.2712 | -948.7 | -476.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.51 | 318.72 | 10.07 | 219.91 | 0.2596 | -633.0 | -466.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -20.22 | 318.79 | 10.14 | 216.01 | 0.2823 | -838.0 | -735.1 | |
| 22.84 | 48.72 | 11.82 | 25.23 | -20.86 | 318.74 | 10.09 | 214.49 | 0.2904 | -1073.0 | -422.4 | |
| 0.00 | 5.04 | 0.00 | 2.62 | -21.79 | 318.73 | 10.09 | 212.64 | 0.3028 | -810.0 | -627.1 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -21.42 | 318.68 | 10.03 | 213.21 | 0.2973 | -646.0 | -477.9 | |
| 1.82 | 19.37 | 0.94 | 9.97 | -20.08 | 318.17 | 9.52 | 214.66 | 0.2744 | -1093.3 | -796.2 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -21.91 | 314.75 | 6.10 | 201.16 | 0.2745 | -811.0 | -610.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -20.82 | 313.27 | 4.62 | 197.69 | 0.2489 | -856.0 | -579.3 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -23.32 | 311.98 | 3.33 | 190.86 | 0.2845 | -882.0 | -705.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
