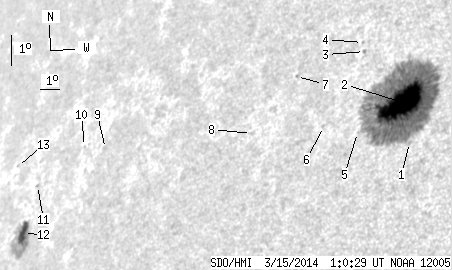

SDO HMI 2014-03-15 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.52 | 488.85 | 74.51 | 386.31 | 11.79 | 260.21 | -47.34 | 68.01 | 0.7729 | -713.5 | -246.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.95 | 10.76 | 263.64 | -43.91 | 68.10 | 0.7366 | -479.0 | -392.9 | |
| 80.27 | 434.12 | 59.69 | 323.37 | 12.06 | 263.09 | -44.46 | 66.72 | 0.7480 | -1118.7 | -307.8 | |
| 0.00 | 1.22 | 0.00 | 0.95 | 13.87 | 261.00 | -46.55 | 65.49 | 0.7769 | -581.0 | -474.9 | |
| 0.00 | 1.13 | 0.00 | 0.89 | 14.17 | 260.83 | -46.72 | 65.21 | 0.7798 | -466.0 | -381.4 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 11.29 | 261.29 | -46.26 | 68.50 | 0.7637 | -267.0 | -204.2 | |
| 0.00 | 1.39 | 0.00 | 1.10 | 11.63 | 259.69 | -47.86 | 68.76 | 0.7814 | -369.0 | -349.4 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 13.37 | 258.00 | -49.55 | 67.39 | 0.8043 | -479.0 | -396.7 | |
| 0.00 | 0.96 | 0.00 | 0.81 | 11.76 | 256.26 | -51.28 | 69.95 | 0.8154 | -238.0 | -247.7 | |
| 0.00 | 1.65 | 0.00 | 1.74 | 12.14 | 248.27 | -59.28 | 72.12 | 0.8850 | 90.0 | 198.6 | |
| 0.00 | 0.43 | 0.00 | 0.48 | 12.36 | 246.90 | -60.65 | 72.27 | 0.8958 | 239.0 | 223.4 | |
| 0.00 | 1.56 | 0.00 | 1.89 | 11.46 | 244.18 | -63.37 | 73.95 | 0.9134 | 315.0 | 260.1 | |
| 12.25 | 43.00 | 14.82 | 52.15 | 10.02 | 243.76 | -63.78 | 75.59 | 0.9139 | 526.8 | 146.0 | |
| 0.00 | 0.61 | 0.00 | 0.79 | 12.25 | 242.41 | -65.14 | 73.54 | 0.9262 | 192.0 | 203.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
