SDO HMI 2014-03-15 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.91 | 824.04 | 97.36 | 441.56 | -18.28 | 325.37 | 19.46 | 236.71 | 0.3788 | 169.5 | 52.7 | |
|
previous
or next observation for the same group /

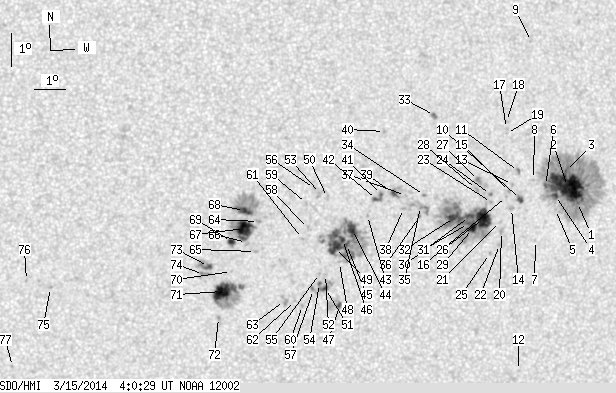

back to the solar disc SDO HMI 2014-03-15 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.70 | 288.99 | 0.38 | 158.51 | -17.65 | 330.13 | 24.23 | 243.81 | 0.4377 | 543.5 | 360.3 | |
| 57.36 | -1.00 | 31.43 | -1.00 | -17.19 | 329.73 | 23.82 | 244.51 | 0.4293 | 1129.3 | 999999 | |
| 1.56 | -1.00 | 0.86 | -1.00 | -16.74 | 329.60 | 23.70 | 245.40 | 0.4251 | 954.9 | 999999 | |
| 2.78 | -1.00 | 1.52 | -1.00 | -17.48 | 329.36 | 23.46 | 243.57 | 0.4258 | 981.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -17.90 | 329.42 | 23.51 | 242.70 | 0.4291 | 513.0 | 476.4 | |
| 1.30 | -1.00 | 0.71 | -1.00 | -17.19 | 328.98 | 23.08 | 243.90 | 0.4188 | 994.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.87 | 328.87 | 22.97 | 240.13 | 0.4276 | 746.0 | 570.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -17.03 | 328.55 | 22.65 | 243.91 | 0.4117 | 660.0 | 502.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.89 | 328.03 | 22.13 | 253.54 | 0.3846 | 566.0 | 371.5 | |
| 2.09 | 5.21 | 1.13 | 2.83 | -17.65 | 328.19 | 22.29 | 242.18 | 0.4104 | 1025.9 | 793.6 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -16.81 | 328.02 | 22.12 | 243.95 | 0.4029 | 938.0 | 736.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -22.88 | 328.92 | 23.02 | 232.18 | 0.4581 | 596.0 | 445.5 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -17.21 | 327.87 | 21.96 | 242.89 | 0.4031 | 731.0 | 560.3 | |
| 0.00 | 2.52 | 0.00 | 1.37 | -17.94 | 327.92 | 22.02 | 241.29 | 0.4085 | 907.0 | 699.7 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -17.43 | 327.79 | 21.89 | 242.32 | 0.4034 | 928.0 | 809.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.58 | 327.71 | 21.81 | 241.89 | 0.4032 | 952.0 | 750.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.53 | 327.47 | 21.57 | 246.53 | 0.3878 | 555.0 | 554.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -15.32 | 327.45 | 21.54 | 247.03 | 0.3863 | 920.0 | 681.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -15.68 | 327.49 | 21.58 | 246.18 | 0.3888 | 692.0 | 497.6 | |
| 0.00 | 2.69 | 0.00 | 1.46 | -18.65 | 327.68 | 21.78 | 239.46 | 0.4099 | 838.0 | 633.6 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -18.35 | 327.61 | 21.70 | 240.06 | 0.4068 | 406.0 | 357.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -19.05 | 327.67 | 21.76 | 238.58 | 0.4125 | 684.0 | 561.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -17.79 | 327.23 | 21.33 | 240.96 | 0.3978 | 878.0 | 642.8 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -17.55 | 327.17 | 21.27 | 241.46 | 0.3954 | 974.0 | 841.7 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -19.34 | 327.37 | 21.46 | 237.64 | 0.4105 | 633.0 | 540.4 | |
| 19.64 | 143.24 | 10.60 | 77.01 | -18.28 | 327.02 | 21.12 | 239.62 | 0.3983 | 1079.3 | 518.5 | |
| 0.00 | 4.43 | 0.00 | 2.38 | -17.14 | 326.72 | 20.81 | 241.97 | 0.3864 | 1001.0 | 856.9 | |
| 0.00 | 1.74 | 0.00 | 0.93 | -17.42 | 326.68 | 20.78 | 241.28 | 0.3877 | 850.0 | 795.0 | |
| 6.00 | -26.00 | 3.23 | -26.00 | -18.60 | 326.69 | 20.79 | 238.55 | 0.3961 | 1028.7 | 999999 | |
| 3.22 | -26.00 | 1.73 | -26.00 | -18.24 | 326.55 | 20.65 | 239.21 | 0.3915 | 1193.1 | 999999 | |
| 0.61 | -26.00 | 0.33 | -26.00 | -18.46 | 326.54 | 20.64 | 238.71 | 0.3929 | 1104.1 | 999999 | |
| 9.65 | -26.00 | 5.17 | -26.00 | -18.29 | 326.05 | 20.15 | 238.55 | 0.3850 | 1127.1 | 999999 | |
| 0.00 | 3.48 | 0.00 | 1.84 | -15.24 | 325.06 | 19.16 | 245.11 | 0.3507 | 1103.0 | 869.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -17.67 | 324.98 | 19.08 | 238.81 | 0.3657 | 1001.0 | 754.2 | |
| 0.00 | 11.39 | 0.00 | 6.06 | -18.00 | 324.89 | 18.98 | 237.87 | 0.3669 | 756.0 | 613.3 | |
| 0.00 | 1.65 | 0.00 | 0.88 | -18.31 | 324.89 | 18.98 | 237.14 | 0.3693 | 932.0 | 749.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -17.69 | 324.36 | 18.45 | 237.98 | 0.3572 | 105.0 | 13.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -18.09 | 324.33 | 18.43 | 236.98 | 0.3600 | 229.0 | 252.5 | |
| 2.00 | 9.82 | 1.06 | 5.20 | -17.64 | 323.96 | 18.05 | 237.59 | 0.3514 | -803.5 | -430.2 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -15.78 | 323.48 | 17.58 | 241.89 | 0.3310 | 808.0 | 645.9 | |
| 0.78 | 6.08 | 0.41 | 3.21 | -17.69 | 323.57 | 17.66 | 236.96 | 0.3464 | -828.7 | -690.5 | |
| 1.39 | -41.00 | 0.73 | -41.00 | -17.84 | 323.42 | 17.51 | 236.36 | 0.3456 | -909.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -18.34 | 323.17 | 17.27 | 234.78 | 0.3464 | -668.0 | -571.9 | |
| 8.52 | 109.25 | 4.49 | 57.64 | -18.78 | 322.72 | 16.82 | 233.03 | 0.3444 | -991.7 | -618.4 | |
| 1.74 | -44.00 | 0.92 | -44.00 | -19.24 | 322.57 | 16.67 | 231.68 | 0.3467 | -935.8 | 999999 | |
| 2.69 | -44.00 | 1.42 | -44.00 | -19.10 | 322.43 | 16.52 | 231.81 | 0.3434 | -1111.6 | 999999 | |
| 1.56 | 9.47 | 0.83 | 5.03 | -21.12 | 322.54 | 16.64 | 227.39 | 0.3646 | 961.8 | 300.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -19.80 | 322.40 | 16.50 | 230.10 | 0.3498 | -517.0 | -402.3 | |
| 9.47 | -44.00 | 4.99 | -44.00 | -19.35 | 322.22 | 16.32 | 230.88 | 0.3432 | -964.4 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.50 | -17.84 | 321.81 | 15.91 | 234.01 | 0.3240 | -705.0 | -492.5 | |
| 1.74 | 7.04 | 0.92 | 3.72 | -20.61 | 322.02 | 16.12 | 227.65 | 0.3532 | -836.5 | -741.3 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -20.18 | 321.98 | 16.07 | 228.54 | 0.3483 | -729.0 | -588.8 | |
| 0.00 | 4.95 | 0.00 | 2.59 | -17.72 | 321.58 | 15.67 | 233.93 | 0.3198 | -701.0 | -633.2 | |
| 0.61 | -51.00 | 0.32 | -51.00 | -20.46 | 321.81 | 15.91 | 227.62 | 0.3491 | -999.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -20.16 | 321.78 | 15.87 | 228.26 | 0.3456 | -811.0 | -648.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -17.58 | 321.37 | 15.47 | 233.98 | 0.3157 | -791.0 | -593.0 | |
| 0.00 | 2.52 | 0.00 | 1.33 | -20.65 | 321.63 | 15.73 | 226.89 | 0.3489 | -878.0 | -693.6 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -18.80 | 321.28 | 15.38 | 230.68 | 0.3260 | -816.0 | -698.7 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -18.04 | 321.15 | 15.25 | 232.39 | 0.3170 | -690.0 | -467.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -21.15 | 321.32 | 15.42 | 225.25 | 0.3506 | -652.0 | -485.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -19.11 | 321.11 | 15.21 | 229.62 | 0.3269 | -879.0 | -757.7 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -21.01 | 321.07 | 15.17 | 225.14 | 0.3461 | -718.0 | -556.1 | |
| 0.00 | 5.21 | 0.00 | 2.75 | -21.02 | 320.71 | 14.81 | 224.46 | 0.3421 | -243.0 | -204.5 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -18.63 | 319.64 | 13.74 | 228.09 | 0.3037 | -828.0 | -648.8 | |
| 0.00 | 1.74 | 0.00 | 0.91 | -19.55 | 319.62 | 13.72 | 225.77 | 0.3133 | -848.0 | -700.8 | |
| 0.00 | 3.74 | 0.00 | 1.94 | -19.28 | 319.30 | 13.40 | 225.78 | 0.3066 | -318.0 | -472.0 | |
| 15.30 | 41.20 | 7.94 | 21.38 | -18.86 | 319.21 | 13.30 | 226.64 | 0.3008 | -1132.1 | -715.0 | |
| 7.21 | 40.42 | 3.74 | 20.93 | -18.31 | 319.16 | 13.26 | 227.98 | 0.2945 | -1170.5 | -517.2 | |
| 3.13 | -67.00 | 1.62 | -67.00 | -19.26 | 318.82 | 12.91 | 224.81 | 0.3007 | -1000.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -20.18 | 318.89 | 12.99 | 222.78 | 0.3120 | -812.0 | -600.8 | |
| 18.77 | 54.24 | 9.80 | 28.34 | -20.80 | 318.62 | 12.71 | 220.80 | 0.3163 | -1127.1 | -456.3 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -21.60 | 318.59 | 12.69 | 219.03 | 0.3257 | -792.0 | -636.9 | |
| 2.09 | 11.13 | 1.08 | 5.77 | -20.04 | 318.13 | 12.23 | 221.45 | 0.3020 | -1068.0 | -860.5 | |
| 0.00 | 4.52 | 0.00 | 2.35 | -20.29 | 317.99 | 12.09 | 220.56 | 0.3034 | -942.0 | -814.3 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -20.78 | 313.08 | 7.18 | 206.31 | 0.2647 | -865.0 | -739.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -20.58 | 312.30 | 6.40 | 204.16 | 0.2560 | -794.0 | -606.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -23.23 | 311.96 | 6.06 | 199.28 | 0.2950 | -762.0 | -587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
