SDO HMI 2014-03-15 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.91 | 32.00 | 5.01 | 25.06 | -10.61 | 356.38 | 51.02 | 261.87 | 0.7718 | 42.4 | -31.5 | |
|
previous
or next observation for the same group /

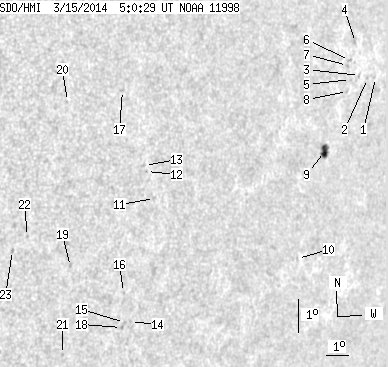

back to the solar disc SDO HMI 2014-03-15 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.55 | -7.27 | 2.41 | 57.05 | 266.00 | 0.8366 | 353.0 | 369.7 | |
| 0.00 | 1.04 | 0.00 | 0.93 | -7.34 | 1.98 | 56.62 | 265.95 | 0.8325 | 411.0 | 263.1 | |
| 0.00 | 0.78 | 0.00 | 0.69 | -7.30 | 1.53 | 56.18 | 266.03 | 0.8282 | 384.0 | 280.4 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -6.35 | 1.15 | 55.79 | 267.22 | 0.8251 | 579.0 | 515.2 | |
| 0.00 | 1.04 | 0.00 | 0.91 | -7.47 | 1.08 | 55.72 | 265.87 | 0.8236 | 402.0 | 417.6 | |
| 0.00 | 1.65 | 0.00 | 1.43 | -6.91 | 0.92 | 55.57 | 266.55 | 0.8225 | 628.0 | 561.9 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -7.07 | 0.84 | 55.49 | 266.37 | 0.8216 | 654.0 | 621.9 | |
| 0.00 | 0.61 | 0.00 | 0.53 | -7.84 | 0.99 | 55.63 | 265.42 | 0.8225 | 435.0 | 320.6 | |
| 5.91 | 8.52 | 5.01 | 7.22 | -9.73 | 0.18 | 54.83 | 263.16 | 0.8137 | 617.0 | 381.7 | |
| 0.00 | 0.70 | 0.00 | 0.58 | -13.01 | 359.68 | 54.33 | 259.10 | 0.8083 | 636.0 | 552.2 | |
| 0.00 | 2.43 | 0.00 | 1.75 | -11.88 | 352.44 | 47.09 | 260.41 | 0.7292 | -361.0 | -287.9 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -11.11 | 351.92 | 46.56 | 261.46 | 0.7228 | -534.0 | -479.4 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -10.94 | 351.80 | 46.44 | 261.70 | 0.7214 | -646.0 | -525.5 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -15.62 | 352.34 | 46.98 | 255.27 | 0.7304 | -354.0 | -343.6 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -15.67 | 352.08 | 46.72 | 255.17 | 0.7275 | -531.0 | -464.2 | |
| 0.00 | 1.13 | 0.00 | 0.81 | -14.79 | 351.78 | 46.42 | 256.36 | 0.7231 | -462.0 | -393.8 | |
| 0.00 | 1.74 | 0.00 | 1.21 | -8.80 | 350.46 | 45.10 | 264.72 | 0.7053 | -619.0 | -531.8 | |
| 0.00 | 1.39 | 0.00 | 1.00 | -15.83 | 351.99 | 46.63 | 254.94 | 0.7266 | -425.0 | -425.9 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -14.21 | 349.30 | 43.95 | 256.92 | 0.6931 | -627.0 | -506.6 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -9.32 | 348.22 | 42.86 | 264.01 | 0.6773 | -377.0 | -332.8 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -16.86 | 349.67 | 44.31 | 253.17 | 0.7008 | -508.0 | -443.6 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -13.46 | 347.32 | 41.97 | 257.79 | 0.6677 | -430.0 | -417.0 | |
| 0.00 | 1.65 | 0.00 | 1.09 | -13.93 | 346.80 | 41.45 | 257.03 | 0.6616 | -553.0 | -460.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
