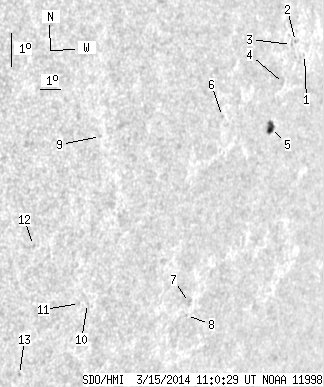

SDO HMI 2014-03-15 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.74 | 19.65 | 5.29 | 17.22 | -11.19 | 358.18 | 56.10 | 261.15 | 0.8253 | 254.3 | 193.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.50 | -7.35 | 1.62 | 59.55 | 265.70 | 0.8595 | 349.0 | 361.5 | |
| 0.00 | 0.61 | 0.00 | 0.58 | -7.02 | 1.02 | 58.95 | 266.13 | 0.8543 | 545.0 | 466.7 | |
| 0.00 | 1.13 | 0.00 | 1.06 | -7.13 | 0.81 | 58.74 | 266.02 | 0.8523 | 511.0 | 487.5 | |
| 0.00 | 0.96 | 0.00 | 0.89 | -8.33 | 0.61 | 58.54 | 264.63 | 0.8498 | 364.0 | 283.4 | |
| 5.74 | 8.43 | 5.29 | 7.77 | -9.70 | 0.21 | 58.13 | 263.03 | 0.8455 | 612.3 | 336.5 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -9.64 | 357.52 | 55.45 | 263.22 | 0.8199 | 523.0 | 448.6 | |
| 0.00 | 2.43 | 0.00 | 2.10 | -15.28 | 357.54 | 55.47 | 256.32 | 0.8201 | 561.0 | 465.4 | |
| 0.00 | 0.78 | 0.00 | 0.67 | -15.68 | 357.54 | 55.46 | 255.83 | 0.8202 | 673.0 | 601.6 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -10.81 | 351.68 | 49.61 | 261.87 | 0.7580 | -660.0 | -612.4 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -15.80 | 352.46 | 50.39 | 255.35 | 0.7685 | -196.0 | -236.8 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -15.84 | 352.09 | 50.01 | 255.27 | 0.7645 | -473.0 | -442.4 | |
| 0.00 | 1.13 | 0.00 | 0.82 | -14.31 | 349.46 | 47.38 | 257.08 | 0.7339 | -476.0 | -508.9 | |
| 0.00 | 0.87 | 0.00 | 0.64 | -18.20 | 350.05 | 47.98 | 251.89 | 0.7448 | -563.0 | -501.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
