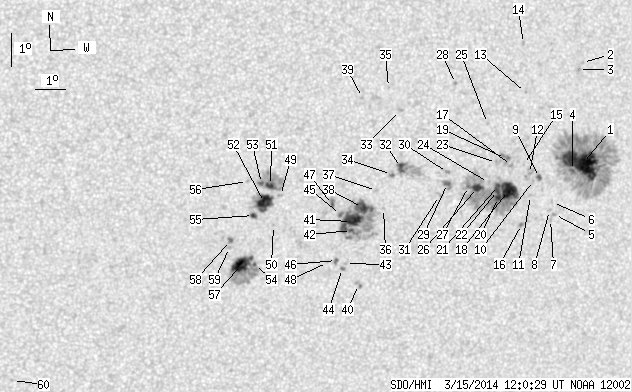

SDO HMI 2014-03-15 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.14 | 734.43 | 97.43 | 406.00 | -18.10 | 325.73 | 24.21 | 242.05 | 0.4419 | 134.2 | 138.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.84 | 270.73 | 32.27 | 153.88 | -17.14 | 329.73 | 28.20 | 247.44 | 0.4910 | 1113.1 | 315.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -14.11 | 329.28 | 27.75 | 253.35 | 0.4733 | 665.0 | 509.1 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -14.33 | 329.17 | 27.64 | 252.85 | 0.4724 | 898.0 | 704.0 | |
| 1.48 | -1.00 | 0.84 | -1.00 | -17.37 | 329.41 | 27.89 | 246.81 | 0.4876 | 988.6 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -18.74 | 329.01 | 27.48 | 243.89 | 0.4886 | 702.0 | 530.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -18.38 | 328.87 | 27.35 | 244.50 | 0.4850 | 585.0 | 430.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -18.90 | 328.89 | 27.37 | 243.51 | 0.4879 | 70.0 | 188.0 | |
| 0.00 | 1.65 | 0.00 | 0.93 | -18.63 | 328.81 | 27.28 | 243.98 | 0.4854 | 653.0 | 499.2 | |
| 1.30 | 3.82 | 0.73 | 2.15 | -17.65 | 328.29 | 26.77 | 245.58 | 0.4733 | 934.7 | 731.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -17.75 | 328.10 | 26.57 | 245.25 | 0.4711 | 808.0 | 652.0 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -18.21 | 328.07 | 26.54 | 244.31 | 0.4730 | 720.0 | 485.6 | |
| 0.00 | 6.95 | 0.00 | 3.89 | -17.54 | 327.93 | 26.40 | 245.55 | 0.4677 | 988.0 | 737.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -15.11 | 327.44 | 25.92 | 250.35 | 0.4499 | 772.0 | 705.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -13.65 | 327.19 | 25.67 | 253.44 | 0.4410 | 731.0 | 675.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -17.28 | 327.68 | 26.15 | 245.92 | 0.4629 | 650.0 | 586.7 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -19.10 | 327.90 | 26.38 | 242.41 | 0.4756 | 804.0 | 676.1 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -17.33 | 327.27 | 25.74 | 245.54 | 0.4574 | 996.0 | 837.3 | |
| 19.82 | 138.02 | 11.05 | 76.64 | -18.10 | 327.28 | 25.75 | 243.98 | 0.4615 | 1068.4 | 468.9 | |
| 0.00 | 6.87 | 0.00 | 3.81 | -17.13 | 327.03 | 25.50 | 245.80 | 0.4530 | 834.0 | 840.5 | |
| 2.78 | -18.00 | 1.55 | -18.00 | -18.32 | 326.97 | 25.44 | 243.28 | 0.4585 | 1116.2 | 999999 | |
| 0.87 | -18.00 | 0.48 | -18.00 | -17.96 | 326.91 | 25.39 | 243.99 | 0.4557 | 1233.1 | 999999 | |
| 2.61 | -18.00 | 1.45 | -18.00 | -18.11 | 326.90 | 25.37 | 243.67 | 0.4564 | 1201.4 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -17.27 | 326.74 | 25.21 | 245.31 | 0.4496 | 900.0 | 791.9 | |
| 0.00 | 1.74 | 0.00 | 0.96 | -17.89 | 326.55 | 25.03 | 243.88 | 0.4503 | 704.0 | 577.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -16.11 | 326.27 | 24.74 | 247.48 | 0.4372 | 720.0 | 667.5 | |
| 6.08 | -18.00 | 3.36 | -18.00 | -18.06 | 326.20 | 24.67 | 243.25 | 0.4463 | 1180.4 | 999999 | |
| 0.52 | -18.00 | 0.29 | -18.00 | -18.04 | 325.89 | 24.36 | 243.04 | 0.4419 | 999.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -14.96 | 325.04 | 23.52 | 249.27 | 0.4139 | 1084.0 | 862.8 | |
| 1.65 | 6.08 | 0.91 | 3.34 | -17.99 | 325.16 | 23.63 | 242.57 | 0.4314 | 1098.4 | 830.0 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -17.65 | 325.11 | 23.59 | 243.25 | 0.4288 | 1023.0 | 841.5 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -18.36 | 324.94 | 23.41 | 241.57 | 0.4306 | 758.0 | 705.3 | |
| 3.65 | 21.21 | 1.98 | 11.51 | -17.57 | 323.54 | 22.01 | 242.05 | 0.4062 | -963.3 | -177.2 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -15.86 | 323.30 | 21.77 | 245.86 | 0.3927 | 872.0 | 705.4 | |
| 0.00 | 2.78 | 0.00 | 1.50 | -17.80 | 323.23 | 21.70 | 241.25 | 0.4034 | -908.0 | -818.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -15.18 | 322.83 | 21.30 | 247.12 | 0.3822 | 748.0 | 637.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -18.84 | 323.10 | 21.57 | 238.78 | 0.4086 | -638.0 | -462.7 | |
| 0.00 | 1.83 | 0.00 | 0.99 | -18.30 | 322.79 | 21.26 | 239.66 | 0.4006 | -768.0 | -570.0 | |
| 11.56 | 101.25 | 6.24 | 54.70 | -18.84 | 322.39 | 20.86 | 238.03 | 0.3990 | -986.9 | -414.6 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -15.52 | 322.00 | 20.48 | 245.57 | 0.3718 | 817.0 | 630.1 | |
| 0.00 | 3.56 | 0.00 | 1.94 | -21.19 | 322.58 | 21.05 | 233.21 | 0.4199 | 587.0 | 637.3 | |
| 21.21 | -38.00 | 11.44 | -38.00 | -19.28 | 322.07 | 20.55 | 236.70 | 0.3981 | -1022.9 | 999999 | |
| 1.48 | -38.00 | 0.80 | -38.00 | -19.55 | 322.11 | 20.58 | 236.14 | 0.4007 | -738.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -20.57 | 322.04 | 20.52 | 233.88 | 0.4080 | -715.0 | -572.8 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -20.73 | 321.96 | 20.44 | 233.45 | 0.4082 | -890.0 | -734.7 | |
| 0.87 | -38.00 | 0.47 | -38.00 | -19.08 | 321.68 | 20.15 | 236.68 | 0.3912 | -1163.7 | 999999 | |
| 0.78 | 2.61 | 0.42 | 1.41 | -20.49 | 321.73 | 20.20 | 233.66 | 0.4032 | -911.0 | -711.8 | |
| 0.70 | 3.30 | 0.37 | 1.77 | -18.79 | 321.37 | 19.84 | 236.99 | 0.3849 | -1021.0 | -891.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -20.56 | 321.43 | 19.90 | 233.15 | 0.4001 | -807.0 | -660.9 | |
| 0.00 | 1.65 | 0.00 | 0.88 | -18.58 | 319.62 | 18.09 | 235.27 | 0.3597 | -761.0 | -584.6 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -19.50 | 319.49 | 17.96 | 232.92 | 0.3659 | -792.0 | -513.3 | |
| 3.74 | 33.46 | 1.98 | 17.69 | -18.29 | 319.25 | 17.73 | 235.49 | 0.3524 | -1195.9 | -508.3 | |
| 16.25 | 27.99 | 8.61 | 14.81 | -18.81 | 319.11 | 17.59 | 234.02 | 0.3550 | -1126.7 | -725.5 | |
| 1.04 | -51.00 | 0.55 | -51.00 | -18.24 | 318.95 | 17.43 | 235.19 | 0.3480 | -1108.1 | 999999 | |
| 0.70 | 58.14 | 0.37 | 30.96 | -20.72 | 318.99 | 17.47 | 229.48 | 0.3709 | -663.4 | -305.6 | |
| 1.91 | 3.22 | 1.01 | 1.70 | -19.22 | 318.79 | 17.27 | 232.58 | 0.3544 | -1034.0 | -864.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -18.19 | 318.49 | 16.96 | 234.63 | 0.3414 | -787.0 | -553.1 | |
| 18.60 | -54.00 | 9.89 | -54.00 | -20.73 | 318.56 | 17.03 | 228.79 | 0.3658 | -1145.1 | 999999 | |
| 0.70 | 2.52 | 0.37 | 1.33 | -20.01 | 318.12 | 16.59 | 229.71 | 0.3532 | -1131.1 | -930.1 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -20.22 | 318.11 | 16.58 | 229.21 | 0.3552 | -922.0 | -701.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -24.51 | 311.32 | 9.79 | 207.28 | 0.3391 | -782.0 | -524.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
