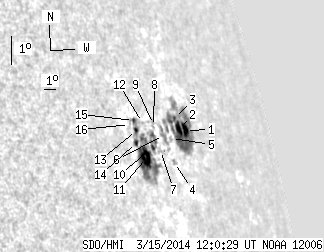

SDO HMI 2014-03-15 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.07 | 188.33 | 44.41 | 284.09 | 11.26 | 10.25 | 68.72 | 284.60 | 0.9453 | 10.3 | -123.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.21 | 85.52 | 8.78 | 140.59 | 11.76 | 12.33 | 70.80 | 284.69 | 0.9571 | -119.1 | -170.6 | |
| 5.30 | -1.00 | 8.63 | -1.00 | 11.71 | 11.65 | 70.12 | 284.77 | 0.9537 | -595.1 | 999999 | |
| 1.13 | -1.00 | 1.83 | -1.00 | 12.03 | 11.48 | 69.95 | 285.14 | 0.9531 | -398.8 | 999999 | |
| 0.00 | 2.17 | 0.00 | 3.32 | 10.57 | 10.68 | 69.15 | 283.80 | 0.9474 | -43.0 | -60.6 | |
| 0.00 | 2.17 | 0.00 | 3.36 | 11.33 | 10.81 | 69.29 | 284.55 | 0.9489 | -715.0 | -625.6 | |
| 0.00 | 8.00 | 0.00 | 11.99 | 11.34 | 10.13 | 68.61 | 284.71 | 0.9453 | -576.0 | -562.6 | |
| 0.00 | 1.74 | 0.00 | 2.53 | 10.82 | 9.62 | 68.09 | 284.27 | 0.9418 | -372.0 | -235.4 | |
| 0.00 | 1.13 | 0.00 | 1.64 | 11.54 | 9.40 | 67.87 | 285.07 | 0.9415 | -583.0 | -539.0 | |
| 0.00 | 1.83 | 0.00 | 2.65 | 11.60 | 9.44 | 67.91 | 285.13 | 0.9417 | -535.0 | -482.8 | |
| 1.39 | 84.56 | 1.97 | 116.34 | 10.83 | 8.98 | 67.45 | 284.43 | 0.9382 | -104.4 | 35.3 | |
| 12.52 | -10.00 | 17.11 | -10.00 | 10.45 | 8.33 | 66.80 | 284.17 | 0.9338 | 589.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.09 | 11.56 | 8.53 | 67.00 | 285.28 | 0.9365 | -512.0 | -472.6 | |
| 1.39 | -10.00 | 1.88 | -10.00 | 11.24 | 7.91 | 66.38 | 285.09 | 0.9323 | -29.5 | 999999 | |
| 1.83 | -10.00 | 2.44 | -10.00 | 10.84 | 7.73 | 66.20 | 284.71 | 0.9307 | 354.2 | 999999 | |
| 1.30 | -10.00 | 1.77 | -10.00 | 11.54 | 7.82 | 66.29 | 285.42 | 0.9322 | -89.1 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.58 | 11.37 | 7.44 | 65.91 | 285.33 | 0.9296 | 264.0 | 372.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
