SDO HMI 2014-03-15 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.52 | 16.44 | 4.30 | 15.06 | -9.66 | 358.81 | 57.83 | 262.97 | 0.8415 | 325.5 | 280.3 | |
|
previous
or next observation for the same group /

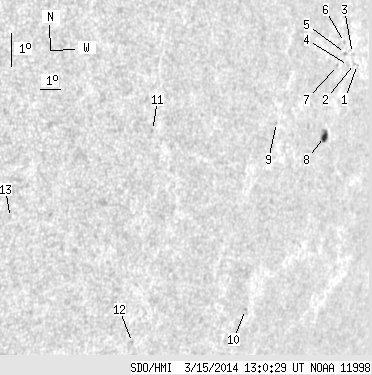

back to the solar disc SDO HMI 2014-03-15 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.60 | -7.39 | 1.62 | 60.64 | 265.57 | 0.8690 | 357.0 | 362.7 | |
| 0.00 | 0.87 | 0.00 | 0.86 | -7.38 | 1.43 | 60.46 | 265.59 | 0.8674 | 437.0 | 402.8 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -7.09 | 1.25 | 60.27 | 265.93 | 0.8659 | 231.0 | 190.0 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -7.47 | 1.09 | 60.11 | 265.51 | 0.8643 | 460.0 | 472.0 | |
| 0.00 | 0.96 | 0.00 | 0.93 | -7.14 | 0.83 | 59.85 | 265.91 | 0.8623 | 577.0 | 544.6 | |
| 0.00 | 0.87 | 0.00 | 0.84 | -6.82 | 0.71 | 59.73 | 266.29 | 0.8614 | 486.0 | 420.8 | |
| 0.00 | 0.52 | 0.00 | 0.50 | -7.54 | 0.44 | 59.46 | 265.48 | 0.8586 | 576.0 | 515.0 | |
| 4.52 | 7.13 | 4.30 | 6.77 | -9.71 | 0.22 | 59.24 | 262.96 | 0.8555 | 511.2 | 355.4 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -9.57 | 357.43 | 56.45 | 263.26 | 0.8297 | 531.0 | 463.8 | |
| 0.00 | 0.87 | 0.00 | 0.77 | -15.23 | 357.58 | 56.61 | 256.42 | 0.8309 | 561.0 | 504.7 | |
| 0.00 | 1.39 | 0.00 | 1.07 | -10.42 | 351.30 | 50.32 | 262.38 | 0.7660 | -118.0 | -93.1 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -16.77 | 352.20 | 51.22 | 254.17 | 0.7781 | -554.0 | -469.9 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -13.55 | 345.58 | 44.61 | 257.89 | 0.7005 | -436.0 | -343.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
