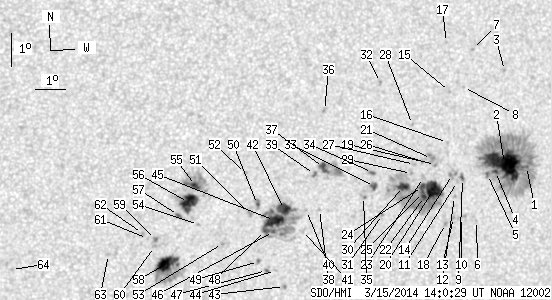

SDO HMI 2014-03-15 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.55 | 694.35 | 90.75 | 387.23 | -18.07 | 325.76 | 25.33 | 243.03 | 0.4571 | 147.5 | 127.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.70 | 255.11 | 0.40 | 146.48 | -17.16 | 330.49 | 30.06 | 248.37 | 0.5170 | 415.1 | 316.6 | |
| 52.92 | -1.00 | 30.34 | -1.00 | -17.11 | 329.69 | 29.27 | 248.06 | 0.5058 | 1113.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -14.32 | 329.26 | 28.83 | 253.34 | 0.4897 | 776.0 | 637.5 | |
| 1.22 | -1.00 | 0.70 | -1.00 | -17.37 | 329.42 | 28.99 | 247.41 | 0.5030 | 944.6 | 999999 | |
| 0.78 | -1.00 | 0.45 | -1.00 | -17.48 | 329.15 | 28.72 | 247.06 | 0.4997 | 710.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -18.89 | 329.01 | 28.58 | 244.29 | 0.5044 | 675.0 | 455.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -13.76 | 328.07 | 27.64 | 254.04 | 0.4706 | 769.0 | 704.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -14.91 | 327.91 | 27.48 | 251.56 | 0.4720 | 634.0 | 547.2 | |
| 0.78 | 2.87 | 0.44 | 1.63 | -17.65 | 328.29 | 27.86 | 246.24 | 0.4886 | 921.4 | 734.2 | |
| 0.00 | 3.82 | 0.00 | 2.18 | -18.83 | 328.46 | 28.03 | 244.07 | 0.4966 | 666.0 | 556.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -17.75 | 328.13 | 27.70 | 245.95 | 0.4868 | 914.0 | 701.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -18.21 | 328.10 | 27.67 | 245.04 | 0.4886 | 694.0 | 635.2 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -18.85 | 328.18 | 27.75 | 243.85 | 0.4929 | 828.0 | 671.0 | |
| 0.00 | 6.17 | 0.00 | 3.49 | -17.55 | 327.92 | 27.49 | 246.22 | 0.4829 | 863.0 | 824.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -15.06 | 327.44 | 27.01 | 251.03 | 0.4657 | 792.0 | 697.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -16.59 | 327.59 | 27.16 | 247.94 | 0.4740 | 770.0 | 562.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -13.60 | 327.15 | 26.72 | 254.01 | 0.4565 | 805.0 | 674.3 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -19.04 | 327.93 | 27.50 | 243.31 | 0.4905 | 892.0 | 685.0 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -17.28 | 327.28 | 26.85 | 246.37 | 0.4727 | 984.0 | 803.3 | |
| 18.25 | 130.16 | 10.27 | 72.94 | -18.04 | 327.33 | 26.90 | 244.88 | 0.4771 | 1094.7 | 468.5 | |
| 0.00 | 5.56 | 0.00 | 3.12 | -17.11 | 327.11 | 26.68 | 246.62 | 0.4695 | 1009.0 | 840.4 | |
| 2.52 | -20.00 | 1.42 | -20.00 | -18.27 | 327.05 | 26.62 | 244.24 | 0.4744 | 1052.6 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.51 | -17.69 | 326.92 | 26.49 | 245.30 | 0.4697 | 831.0 | 665.1 | |
| 3.13 | -20.00 | 1.76 | -20.00 | -17.97 | 326.93 | 26.50 | 244.76 | 0.4713 | 1153.9 | 999999 | |
| 0.26 | -20.00 | 0.15 | -20.00 | -18.15 | 326.96 | 26.53 | 244.41 | 0.4726 | 1162.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -17.21 | 326.81 | 26.39 | 246.21 | 0.4658 | 936.0 | 817.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -17.32 | 326.55 | 26.12 | 245.82 | 0.4627 | 888.0 | 693.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -16.12 | 326.31 | 25.88 | 248.18 | 0.4536 | 686.0 | 517.1 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -17.59 | 326.49 | 26.06 | 245.21 | 0.4632 | 845.0 | 657.8 | |
| 6.17 | -20.00 | 3.44 | -20.00 | -18.00 | 326.27 | 25.84 | 244.23 | 0.4623 | 1142.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.89 | 325.68 | 25.25 | 241.99 | 0.4591 | -715.0 | -585.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -14.91 | 325.05 | 24.63 | 250.07 | 0.4301 | 912.0 | 751.0 | |
| 2.43 | 4.08 | 1.35 | 2.26 | -18.05 | 325.27 | 24.85 | 243.39 | 0.4487 | 1051.6 | 847.9 | |
| 0.70 | 3.74 | 0.38 | 2.06 | -17.63 | 325.14 | 24.71 | 244.18 | 0.4445 | 1014.8 | 743.6 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -18.37 | 324.94 | 24.51 | 242.46 | 0.4459 | 687.0 | 700.6 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -15.84 | 323.27 | 22.84 | 246.74 | 0.4083 | 855.0 | 746.8 | |
| 4.08 | 23.89 | 2.23 | 13.06 | -17.56 | 323.46 | 23.03 | 242.98 | 0.4204 | -927.6 | -160.1 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -18.84 | 323.50 | 23.07 | 240.24 | 0.4290 | -633.0 | -459.3 | |
| 0.52 | 2.78 | 0.28 | 1.51 | -17.79 | 323.18 | 22.75 | 242.24 | 0.4179 | -927.7 | -778.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -18.89 | 323.06 | 22.63 | 239.73 | 0.4234 | -703.0 | -425.0 | |
| 0.00 | 2.43 | 0.00 | 1.33 | -19.50 | 323.01 | 22.58 | 238.37 | 0.4269 | -365.0 | -379.5 | |
| 10.08 | 82.37 | 5.48 | 44.80 | -18.89 | 322.31 | 21.88 | 238.99 | 0.4132 | -1020.1 | -448.6 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -21.24 | 322.66 | 22.23 | 234.44 | 0.4353 | 956.0 | 823.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.76 | 322.27 | 21.84 | 234.99 | 0.4266 | -595.0 | -432.4 | |
| 15.03 | -42.00 | 8.16 | -42.00 | -19.24 | 322.02 | 21.59 | 237.93 | 0.4117 | -1049.2 | 999999 | |
| 0.70 | -42.00 | 0.38 | -42.00 | -19.58 | 322.03 | 21.60 | 237.21 | 0.4144 | -796.1 | 999999 | |
| 0.35 | 1.39 | 0.19 | 0.76 | -20.78 | 321.96 | 21.54 | 234.62 | 0.4228 | -786.5 | -704.9 | |
| 2.09 | -42.00 | 1.13 | -42.00 | -19.56 | 321.76 | 21.33 | 236.96 | 0.4106 | -874.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -20.51 | 321.65 | 21.22 | 234.82 | 0.4166 | -903.0 | -746.4 | |
| 0.61 | 4.43 | 0.33 | 2.39 | -18.78 | 321.38 | 20.95 | 238.27 | 0.3998 | -976.4 | -821.9 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -19.06 | 321.15 | 20.72 | 237.38 | 0.3988 | -914.0 | -815.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -17.86 | 320.86 | 20.44 | 239.83 | 0.3861 | -841.0 | -629.5 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -20.01 | 320.36 | 19.93 | 234.37 | 0.3958 | -847.0 | -728.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.46 | 319.49 | 19.06 | 234.48 | 0.3799 | -834.0 | -615.9 | |
| 3.56 | 30.59 | 1.90 | 16.27 | -18.28 | 319.25 | 18.82 | 236.93 | 0.3671 | -1209.7 | -586.9 | |
| 17.38 | 26.94 | 9.26 | 14.34 | -18.81 | 319.07 | 18.65 | 235.47 | 0.3690 | -1098.5 | -667.1 | |
| 0.87 | 3.04 | 0.46 | 1.62 | -19.22 | 318.79 | 18.36 | 234.14 | 0.3686 | -1071.3 | -842.0 | |
| 18.42 | 55.44 | 9.85 | 29.69 | -20.69 | 318.56 | 18.14 | 230.50 | 0.3790 | -1136.5 | -314.7 | |
| 0.00 | 2.52 | 0.00 | 1.34 | -19.97 | 318.11 | 17.68 | 231.45 | 0.3666 | -1106.0 | -925.2 | |
| 0.00 | 1.65 | 0.00 | 0.88 | -20.19 | 318.10 | 17.67 | 230.95 | 0.3685 | -815.0 | -728.4 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -19.95 | 317.84 | 17.41 | 231.10 | 0.3630 | -831.0 | -794.7 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -19.81 | 317.66 | 17.23 | 231.17 | 0.3594 | -762.0 | -598.1 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -20.48 | 316.61 | 16.18 | 227.97 | 0.3529 | -798.0 | -637.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -21.04 | 313.46 | 13.04 | 220.91 | 0.3229 | -506.0 | -536.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
