SDO HMI 2014-03-15 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.89 | 191.93 | 45.84 | 304.72 | 11.23 | 10.06 | 69.63 | 284.38 | 0.9502 | 51.6 | -144.8 | |
|
previous
or next observation for the same group /

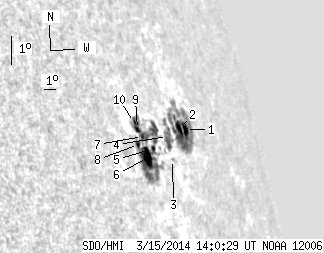

back to the solar disc SDO HMI 2014-03-15 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.95 | 75.85 | 5.32 | 133.54 | 11.80 | 12.40 | 71.98 | 284.49 | 0.9627 | -10.8 | -133.5 | |
| 6.43 | -1.00 | 11.18 | -1.00 | 11.76 | 11.79 | 71.36 | 284.57 | 0.9598 | -553.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 2.09 | 10.64 | 10.49 | 70.06 | 283.68 | 0.9522 | -226.0 | -221.7 | |
| 0.00 | 17.55 | 0.00 | 28.27 | 11.35 | 10.42 | 69.99 | 284.42 | 0.9526 | -724.0 | -521.4 | |
| 1.48 | 97.23 | 2.19 | 140.82 | 10.80 | 8.91 | 68.49 | 284.17 | 0.9440 | -107.5 | -59.8 | |
| 11.82 | -5.00 | 16.94 | -5.00 | 10.44 | 8.25 | 67.82 | 283.94 | 0.9398 | 595.7 | 999999 | |
| 1.82 | -5.00 | 2.62 | -5.00 | 11.08 | 8.15 | 67.72 | 284.62 | 0.9400 | -446.5 | 999999 | |
| 1.82 | -5.00 | 2.55 | -5.00 | 10.77 | 7.68 | 67.25 | 284.41 | 0.9369 | 474.0 | 999999 | |
| 2.35 | -5.00 | 3.32 | -5.00 | 11.26 | 7.83 | 67.40 | 284.88 | 0.9384 | -70.3 | 999999 | |
| 1.22 | -5.00 | 1.72 | -5.00 | 11.46 | 7.69 | 67.26 | 285.12 | 0.9378 | 0.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
