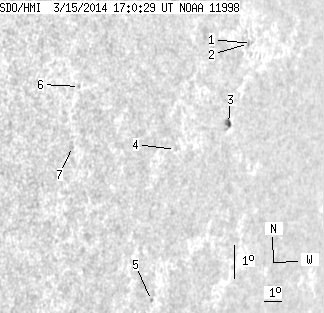

SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 13.12 | 2.12 | 12.53 | -9.94 | 358.17 | 59.40 | 262.63 | 0.8555 | 250.6 | 260.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.45 | -7.12 | 1.06 | 62.29 | 265.73 | 0.8828 | 440.0 | 425.2 | |
| 0.00 | 1.48 | 0.00 | 1.54 | -7.14 | 0.87 | 62.10 | 265.72 | 0.8813 | 553.0 | 527.4 | |
| 2.08 | 5.82 | 2.12 | 5.90 | -9.62 | 0.26 | 61.49 | 262.94 | 0.8749 | 490.1 | 445.3 | |
| 0.00 | 1.04 | 0.00 | 0.97 | -10.72 | 357.36 | 58.59 | 261.81 | 0.8493 | 190.0 | 252.4 | |
| 0.00 | 1.13 | 0.00 | 1.06 | -15.28 | 357.67 | 58.89 | 256.43 | 0.8518 | 465.0 | 434.2 | |
| 0.00 | 1.48 | 0.00 | 1.20 | -9.38 | 351.81 | 53.03 | 263.64 | 0.7954 | -372.0 | -240.2 | |
| 0.00 | 1.74 | 0.00 | 1.41 | -11.18 | 351.88 | 53.11 | 261.37 | 0.7958 | -280.0 | -276.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
